GE GBE10ESJASB Refrigerator

Model: GBE10ESJASB

Save
 Part Not Listed?Part Not Listed?
product name

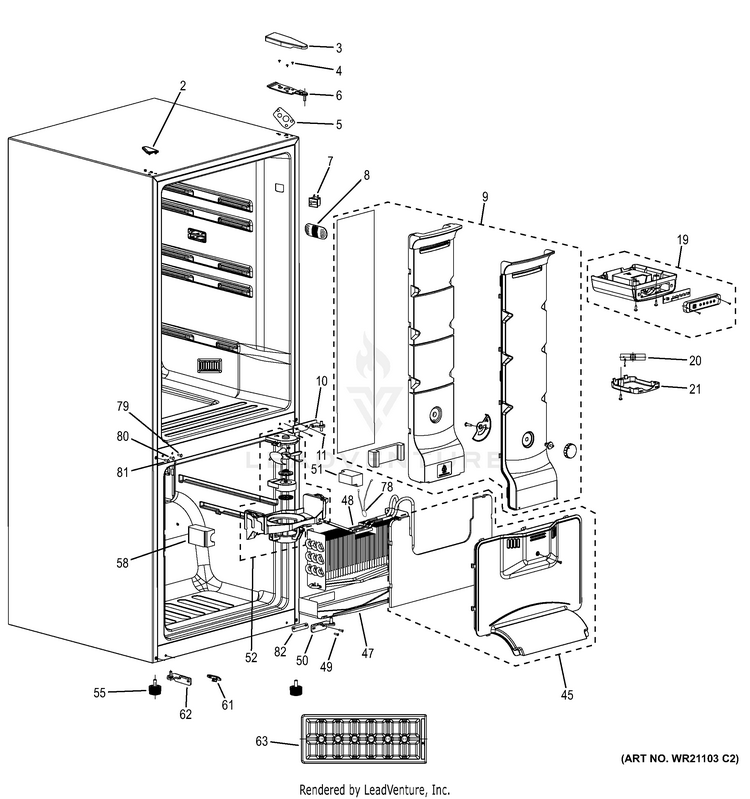

CABINET

...
...
2
TOP HINGE RVSBL COVER GEH-WR13X20418
...
3
TOP HINGE COVER GEH-WR13X20423
...
5
TOP HINGE GASKET GEH-WR02X20337
...
6
TOP HINGE GEH-WR13X20338
...
7
DOOR SWITCH GEH-WR23X20371
...
8
SENSOR COVER GEH-WR02X25098
...
9
DUCT COVER ASSEMBLY GEH-WR17X25207
...
10
CENTER HINGE GEH-WR13X20414
...
11
SCREW GEH-WR01X20342
...
19
USER INTERFACE ASSEMBLY GEH-WR02X25210
...
20
LED LAMP GEH-WR02X25093
...
21
LAMP COVER GEH-WR02X25092
...
45
FREEZER DUCT COVER ASSEM GEH-WR17X25209
...
47
DEFROST DRAIN TRAY GEH-WR17X25076
...
48
EVAPORATOR GEH-WR85X25079
...
49
BOTTOM HINGE GEH-WR13X20369
...
50
SCREW GEH-WR01X20263
...
51
EVAPORATOR FOAM BLOCK GEH-WR02X25080
...
52
FAN MOTOR ASSEMBLY GEH-WR60X25208
...
55
LEVELLING LEG GEH-WR01X25094
...
58
EVAPORATOR FOAM BLOCK GEH-WR02X25081
...
61
DOOR STOPPER GEH-WR01X20397
...
62
BOTTOM HINGE LEFT GEH-WR13X20398
...
63
ICE TRAY-? GEH-WR30X22040
...
78
THERMISTOR GEH-WR09X25818
...
79
PLASTIC RIVET GEH-WR13X20258
...
80
SCREW GEH-WR01X20373
...
81
PLUG BUTTON GEH-WR02X20411
...
82
BOTTOM HINGE GASKET GEH-WR02X20370

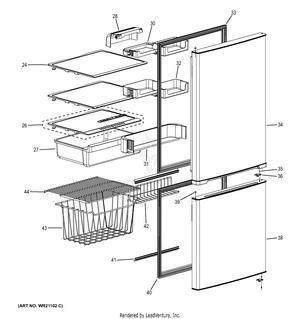

DOORS & SHELVES

...
...
24
GLASS SHELF GEH-WR32X25089
...
26
VEGETABLE PAN COVER ASSE GEH-WR72X25211
...
27
VEGETABLE PAN GEH-WR32X25099
...
28
DAIRY BIN COVER GEH-WR71X25075
...
30
DAIRY BIN GEH-WR71X25074
...
31
FIXED SHELF FF-? GEH-WR71X22032
...
32
DOOR BIN GEH-WR32X25078
...
33
FF DOOR GASKET GEH-WR14X25083
...
34
FF DOOR--SS GEH-WR78X25084
...
35
CENTER HINGE BUSHING GEH-WR02X20400
...
36
DOOR STOPPER GEH-WR01X20356
...
38
FZ DOOR--SS GEH-WR78X25086
...
39
RVSBL DOOR HINGE PLUG GEH-WR02X20352
...
40
FZ DOOR GASKET GEH-WR14X25085
...
41
INNER DOOR SEAL GEH-WR14X25090
...
42
WIRE DOOR SHELF GEH-WR71X25101
...
43
FZ DRAWER GEH-WR71X25087
...
44
FZ SHELF GEH-WR71X25088

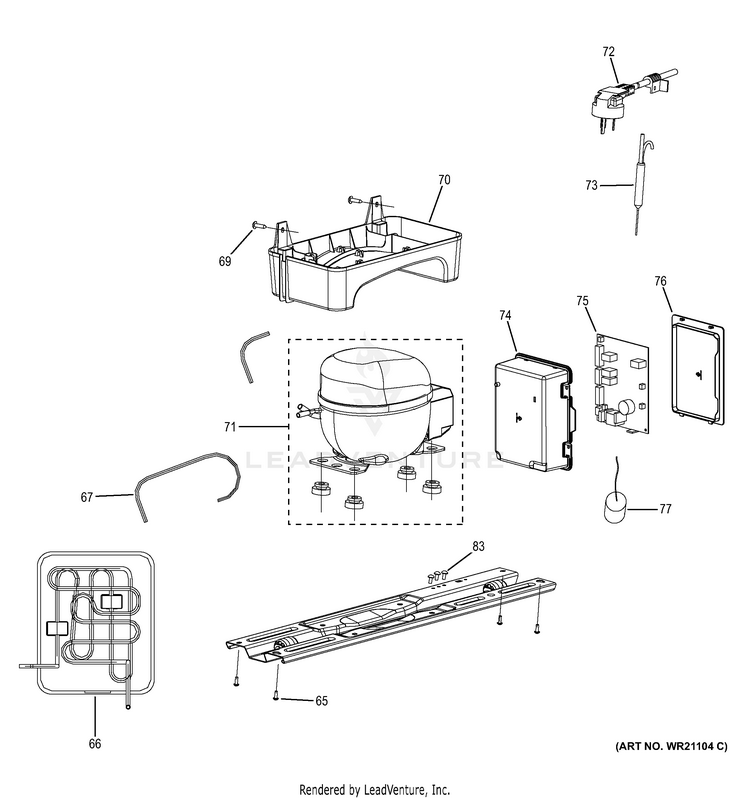

MACHINE COMPARTMENT

...
...
65
SCREW GEH-WR01X20336
...
66
DISCHARGE TUBE, DRIP PAN GEH-WR84X25077
...
67
SUCTION TUBE GEH-WR87X20387
...
69
SCREW GEH-WR01X20385
...
70
DRAIN TRAY GEH-WR32X20384
...
71
COMPRESSOR KIT-? GEH-WR87X22024
...
72
POWER CORD GEH-WR23X25096
...
73
DRYER GEH-WR86X22669
...
74
CONTROL BOX GEH-WR02X25072
...
75
MAIN BOARD GEH-WR55X25095
...
76
CONTROL BOX COVER GEH-WR02X25073
...
77
CAPACITOR-? GEH-WR55X22023
...
...
...
