product name

GE DRSR483EG0CC Dryer Electric

Model: DRSR483EG0CC

Save
 Part Not Listed?Part Not Listed?
product name

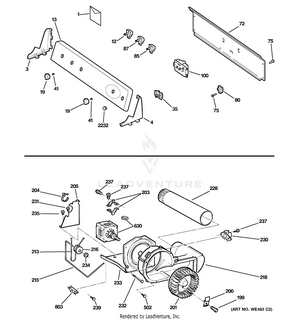

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
INSTALL INSTRUCTION GEH-31-16135
...
1
USE & CARE MANUAL GEH-49-90299
...
1
MINI MANUAL GEH-31-16093
...
3
END CAP LH CC (BISQUE) GEH-WE19M1476
...
4
END CAP RH CC (BISQUE) GEH-WE19M1475
...
12
VARIABLE BUZZER GEH-WE4M368
...
13
BACKSPLASH ASM CC GEH-WE19M1512
...
19
CONTROL KNOB IVORY GEH-WH01X10318
...
35
PUSH TO START SWITCH GEH-WE4M367
...
41
U CLIP GEH-WE01X0980
...
72
PANEL BACK GEH-WE19M1481
...
75
SCREW GEH-WE2M173
...
80
RESISTOR GEH-WE04X10029
...
85
SWITCH ROTARY X-TRA CARE GEH-WE4M177
...
87
ROTARY SWITCH 4 TEMP GEH-WE4M373
...
100
TIMER GEH-WE4M377
...
199
SCREW GEH-WE2M98
...
200
BLOWER CLAMP GEH-WE00M111
...
200
BLOWER CLAMP GEH-WE00M112
...
201
BLOWER WHEEL GEH-WE16M15
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M22
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
BLOWER HOUSING GEH-WE14M93
...
218
GASKET SEAL GEH-WE1M473
...
228
EXAUST PIPE GEH-WE14M90
...
230
THERMOSTAT OUTLET GEH-WE4M216
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M35
...
234
CAP NUT GEH-WE2M96
...
235
SCREW GEH-WE1M280
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
502
SCREW # 10 GEH-WE2M174
...
630
CONNECTOR MOTOR GEH-WE1M650
...
630
MOTOR & PULLEY ASSY GEH-WE17M22
...
803
SWITCH INTERLOCK GEH-WD21X0557
...
2232
PUSH BUTTON & CLIP ASM B GEH-WE1M692

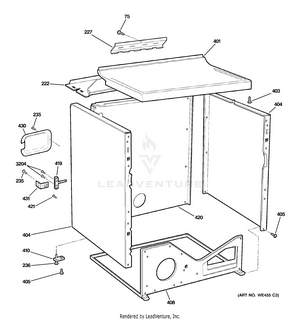

CABINET

...
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M253
...
227
SHIELD GEH-WE13M26
...
235
SCREW GEH-WE1M280
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
COVER (BISQUE) GEH-WE20M306
...
403
SCREW #8 GEH-WE2M160
...
404
PANEL SIDE BQ GEH-WE20M307
...
405
SCR GEH-WE2X263
...
408
CABINET BASE GEH-WE20M304
...
410
FRONT BRACKET LEVEL LEG GEH-WE1M527
...
410
LEVELINGLEGASM GEH-WE1M468
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
410
BRKT LVL SCREW FRONT GEH-WE1M467
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR 7 CU FT GEH-WE20M300
...
421
SCREW NO.8 ( GROUND ) GEH-WE2M228
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
3204
SCR GEH-WH2M270

DRUM

...
...
405
SCR GEH-WE2X263
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM 7.0' SS GEH-WE21M21
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
510
CERAMIC INSULATOR GEH-WE1M452
...
512
HOUSING HEATER ASSY GEH-WE11M23
...
515
GROUND STRAP GEH-WE1M554
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON (BISQUE) GEH-WR02X10459
...
300
LINT FILTER GEH-WE18M28
...
301
CABINET FRONT BQ GEH-WE20M308
...
305
INNER DOOR & GSKT ASM. " GEH-WE10M110
...
307
DOOR PANEL (BISQUE) GEH-WE10M104
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M15
...
313
TOP BEARING GEH-WE3M26
...
314
LAMP GEH-WE4M305
...
316
SLIDE DRUM - GREEN GEH-WE1M481
...
316
SLIDE, DRUM GEH-WE1M333
...
325
GASKET, SEAL GEH-WE01X10217
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M16
...
380
DOOR SWITCH GEH-WE4M335
...
603
HANDLE DOOR BQ GEH-WE1M482
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M505

GE DRSR483EG0CC

...
...
1
Install Instruction GEH-31-16135
...
1
Mini Manual GEH-31-16093
...
1
Use & Care Manual GEH-49-90299
...
3
End Cap Lh Cc () GEH-We19M1476
...
4
End Cap Rh Cc () GEH-We19M1475
...
12
Variable Buzzer GEH-We4M368
...
13
Backsplash Assembly Cc GEH-We19M1512
...
19
Control Knob Ivory GEH-Wh01X10318
...
35
Push To Start Switch GEH-We4M367
...
41
U Clip GEH-We01X0980
...
72
Panel Back GEH-We19M1481
...
75
Screw GEH-We2M173
...
80
Resistor GEH-We04X10029
...
85
Switch Rotary X-Tra Care GEH-We4M177
...
87
Rotary Switch 4 Temp GEH-We4M373
...
100
Timer GEH-We4M377
...
199
Screw GEH-We2M98
...
200
Blower Clamp GEH-We00M111
...
200
Blower Clamp GEH-We00M112
...
201
Blower Wheel GEH-We16M15
...
203
Strap Motor GEH-We13X0200
...
204
Motor Bracket GEH-We01X0921
...
205
Motor Support GEH-We13M39
...
213
Belt Drive GEH-We12M22
...
215
Idler Arm Spring GEH-We3M25
...
216
Pulley Idler GEH-We12M8
...
218
Blower Housing GEH-We14M93
...
218
Gasket Seal GEH-We1M473
...
228
Exaust Pipe GEH-We14M90
...
230
Thermostat Outlet GEH-We4M216
...
231
Screw GEH-We2M187
...
232
Screw GEH-We2M202
...
233
Motor Plate GEH-We13M35
...
234
Cap Nut GEH-We2M96
...
235
Screw GEH-We1M280
...
237
Screw GEH-We2M154
...
239
Screws GEH-We2M167
...
502
Screw # 10 GEH-We2M174
...
630
Connector Motor GEH-We1M650
...
630
Motor & Pulley Assy GEH-We17M22
...
803
Switch Interlock GEH-Wd21X0557
...
2232
Push Button & Clip Assembly B GEH-We1M692

GE DRSR483EG0CC

...
...
75
Screw GEH-We2M173
...
222
Bottom Cover (E-Coat) GEH-We20M253
...
227
Shield GEH-We13M26
...
235
Screw GEH-We1M280
...
236
Levelling Screw Gray GEH-We1M642
...
401
Cover () GEH-We20M306
...
403
Screw #8 GEH-We2M160
...
404
Panel Side Bq GEH-We20M307
...
405
Screw GEH-We2X263
...
408
Cabinet Base GEH-We20M304
...
410
Brkt Lvl Screw Front GEH-We1M467
...
410
Front Bracket Level Leg GEH-We1M527
...
410
LevelinglegAssembly GEH-We1M468
...
410
Rear Bracket Level Leg GEH-We1M528
...
419
Term Blk & Grnd Strap GEH-We4M325
...
420
Panel Rear 7 Cu Ft GEH-We20M300
...
421
Screw No.8 ( Ground ) GEH-We2M228
...
430
T-Block Cover GEH-We1M458
...
431
Strain Relief Bracket GEH-We1M457
...
3204
Screw GEH-Wh2M270

GE DRSR483EG0CC

...
...
405
Screw GEH-We2X263
...
502
Screw # 10 GEH-We2M174
...
503
Drum Assembly 7.0' Ss GEH-We21M21
...
504
Deflector Heat GEH-We14M77
...
505
Thermostat Safety Left GEH-We4M160
...
506
Thermostat Bias Ctr Inlt GEH-We4M181
...
507
Thermostat Hi-Limit GEH-We4M137
...
508
Shaft & Bracket Assembly GEH-We3X39
...
509
Baffle GEH-We14M75
...
510
Ceramic Insulator GEH-We1M452
...
512
Housing Heater Assy GEH-We11M23
...
515
Ground Strap GEH-We1M554
...
534
Screw #10 GEH-We2M163
...
3102
Bearing Retainer GEH-We1M300
...
3106
Sleeve Drum GEH-We1M462
...
3127
O Ring GEH-We1M461

GE DRSR483EG0CC

...
...
112
Beauty Button () GEH-WR02X10459
...
300
Lint Filter GEH-We18M28
...
301
Cabinet Front Bq GEH-We20M308
...
305
Inner Door & Gskt Assembly. " GEH-We10M110
...
307
Door Panel () GEH-We10M104
...
311
Air Duct Assy GEH-We14M92
...
312
Felt GEH-We9M15
...
313
Top Bearing GEH-We3M26
...
314
Lamp GEH-We4M305
...
316
Slide Drum - Green GEH-We1M481
...
316
Slide, Drum GEH-We1M333
...
325
Gasket, Seal GEH-We01X10217
...
327
Latch GEH-We1M536
...
375
Socket Assembly GEH-We5M16
...
380
Door Switch GEH-We4M335
...
603
Handle Door Bq GEH-We1M482
...
3046
Screw #8 GEH-We2M196
...
3049
Strike Door GEH-We01X1192
...
3051
Hinge GEH-We1M505
...
...
...
