GE DBXR463EG6WW Electric Dryer

Model: DBXR463EG6WW

Save
 Part Not Listed?Part Not Listed?
product name

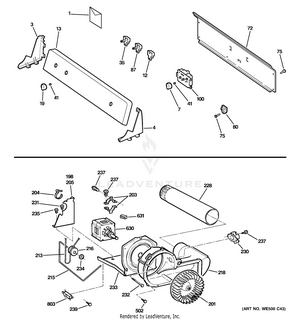

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
INSTALL INSTRUCTION GEH-31-16135
...
1
MINI-MANUAL GEH-31-16165
...
1
USE & CARE GEH-49-90318
...
3
END CAP LH WH GEH-WE19M1474
...
4
END CAP RH WH GEH-WE19M1473
...
7
TIMER KNOB ASM WH GEH-WE1M654
...
12
BUZZER GEH-WE4M318
...
13
BACK. ASM GEH-WE19M1490
...
19
KNOB AND CLIP ASM GEH-WH01X10307
...
35
START SWITCH GEH-WE4M326
...
41
U CLIP GEH-WE01X0980
...
72
PANEL BACK GEH-WE19M1481
...
75
SCREW GEH-WE2M173
...
80
RESISTOR GEH-WE04X10029
...
87
ROTARY SWITCH 4 TEMP GEH-WE4M373
...
100
TIMER PLAS. SHAFT GEH-WE4M364
...
198
SCREW GEH-WE2M200
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
218
BLOWER HOUSING GEH-WE14M93
...
228
EXAUST PIPE GEH-WE14M90
...
230
THERMOSTAT OUTLET GEH-WE4M216
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M35
...
234
CAP NUT GEH-WE2M96
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR THRD SHAFT & PULLY GEH-WE17M37
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X0557

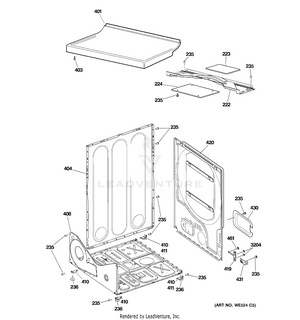

CABINET

...
...
222
BOTTOM COVER (E-COAT) GEH-WE20M253
...
223
HEAT PAD ADHESIVE GEH-WE1M776
...
224
HEAT SHEILD MICA GEH-WE1M775
...
235
SCR GEH-WE2X263
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
PANEL SIDE WH GEH-WE20M393
...
408
CABINET BASE GEH-WE20M390
...
410
FRONT BRACKET LEVEL LEG GEH-WE1M781
...
410
BRACKET LEVELLING LEG GEH-WE1M772
...
410
LEVEL LEG & BRACKET FRNT GEH-WE1M782
...
411
BRACKET & LEVEL LEG ASM GEH-WE1M773
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR (6'CU) GEH-WE20M301
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
3204
SCR GEH-WH2M270

DRUM

...
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM 6.0' GEH-WE21M14
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
MICA HEATER & HSNG ASM GEH-WE11M30
...
513
HOUSING HEATER GEH-WE11M31
...
514
MICA UNIT ASM GEH-WE11M32
...
515
GROUND STRAP GEH-WE1M554
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
300
LINT FILTER GEH-WE18M28
...
301
CABINET FRONT AB GEH-WE20M254
...
305
INNER DOOR GSKT ASM GEH-WE10M109
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
TOP BEARING GEH-WE3M26
...
314
LAMP GEH-WE4M305
...
316
SLIDE DRUM - GREEN GEH-WE1M507
...
316
SLIDE WHITE GEH-WE1M504
...
325
GASKET, SEAL GEH-WE01X10217
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M48
...
380
DOOR SWITCH GEH-WE4M335
...
603
HANDLE DOOR WH GEH-WE1M463
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M505
...
...
...
