GE Caf CDE06RP4NBW2 Refrigerator

Model: CDE06RP4NBW2

Save
 Part Not Listed?Part Not Listed?
product name

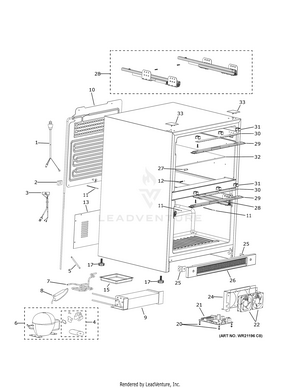

CABINET

...
...
1
POWER CORD GEH-WR55X28274
...
2
EVAPORATOR SUPPORT GEH-WR01X30053
...
3
HARNESS GEH-WR55X30056
...
4
COMPRESSOR ELECTRICALS GEH-WR87X33886
...
5
SUCTION TUBE GEH-WR87X30051
...
6
COMPRESSOR GEH-WR87X30061
...
7
CONDENSER JUMPER GEH-WR87X30055
...
8
DRYER GEH-WR87X30058
...
9
CONDENSER GEH-WR87X30062
...
10
EVAPORATOR GEH-WR87X30054
...
11
THERMISTOR GEH-WR55X28281
...
12
SCREW GEH-WR01X28275
...
13
REAR ACESS COVER GEH-WR14X28270
...
15
DRAIN TRAY GEH-WR14X30060
...
17
LEVELING LEG GEH-WR01X28279
...
20
SUPPORT, PCB GEH-WJ65X10130
...
21
MAIN CONTROL BOARD GEH-WR55X30057
...
22
CONDENSER FAN GEH-WR60X30052
...
24
CONDENSER FAN BRACKET GEH-WR14X30059
...
25
TOE KICK BRACKET GEH-WR01X28277
...
26
TOE KICK GEH-WR74X28252
...
27
REED SWITCH & MAGNET GEH-WR01X30110
...
28
LEFT & RIGHT SLIDE RAIL GEH-WR72X28250
...
29
LED LIGHT COVER GEH-WR13X28262
...
30
LED LIGHT GEH-WR55X28260
...
31
LED LIGHT CLIP GEH-WR01X28258
...
32
DIVIDER BOARD GEH-WR14X28256
...
33
TOP SCREW HOLE COVER GEH-WR01X28248

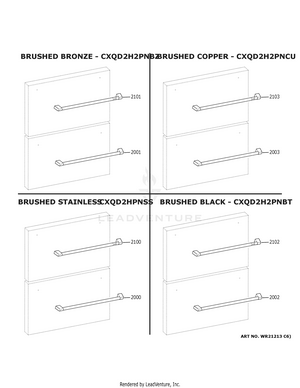

CAFE CUSTOMIZATION

...
...
2000
BRUSHED STAINLESS DOOR HANDLE GEH-WR12X31051
...
2001
BRONZE REFRIGERATOR HANDLE GEH-WR12X31631
...
2002
BLACK REFRIGERATOR HANDLE GEH-WR12X31630
...
2003
COPPER REFRIGERATOR HANDLE GEH-WR12X31632
...
2100
STAINLESS DISHWASHER HANDLE GEH-WD09X24952
...
2101
BRONZE DISHWASHER HANDLE GEH-WD09X25420
...
2102
BLACK DISHWASHER HANDLE GEH-WD09X24953
...
2103
COPPER DISHWASHER HANDLE GEH-WD09X24954

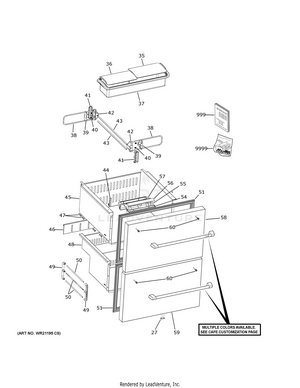

DOORS & DRAWERS

...
...
27
REED SWITCH & MAGNET GEH-WR01X30110
...
35
UPPER CRISPER COVER GEH-WR71X28246
...
36
LOWER CRISPER COVER GEH-WR71X28271
...
37
CRISPER PAN GEH-WR71X28269
...
38
SEPARATED STEEL-THREAD GEH-WR01X28268
...
39
UPPER PARTITION SLIDE SEAT GEH-WR01X28267
...
40
UPPER PARTITION SPRING GEH-WR01X28255
...
41
UPPER PARTITION SLIDE GROOVE GEH-WR01X28273
...
42
UPPER PARITION SLIDE COVER GEH-WR13X28264
...
43
STEEL ROLLER WIRE GEH-WR01X28265
...
44
UPPER PARTITION FIXTURE GEH-WR01X28257
...
45
UPPER DRAWER GEH-WR71X28249
...
46
LOWER PARTITION LOCALIZER GEH-WR01X28254
...
47
CABLE CLAMP GEH-WR01X28259
...
48
LOWER DRAWER GEH-WR71X28282
...
49
LOWER PARTITION SLIDE PILLAR GEH-WR01X28280
...
50
PARTITION STEEL WIRE GEH-WR01X28278
...
51
UNDERCOUNTER - DOOR GASKET BLACK GEH-WR14X28276
...
54
DISPLAY CONTROL COVER GEH-WR13X28266
...
55
CONTROL BOARD GEH-WR55X28261
...
56
DISPLAY BOARD COVER GEH-WR13X28263
...
57
DISPLAY CONTROL BOX GEH-WR14X28251
...
58
UPPER DOOR MATTE WHITE GEH-WR78X31727
...
59
LOWER DRAWER - MATTE WHITE GEH-WR78X41745
...
60
FASTENER DOOR HANDLE GEH-WR01X11007
...
999
PM MINI MANUAL AND WIRING GEH-31-1000153
...
9999
ANTI-TIP BRACKET AND SCREW KIT GEH-WR49X32008
...
...
...
