product name

GE CVW93612M1SS Electric Range

Model: CVW93612M1SS

Save
 Part Not Listed?Part Not Listed?
product name

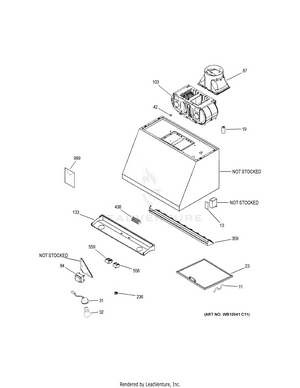

RANGE HOOD

...
...
11
CLIP, FILTER GEH-WB02X11042
...
13
JUNCTION BOX COVER GEH-WB02X10872
...
19
CAPACITOR GEH-WB27X11193
...
23
36" GREASE FILTER GEH-WB02X32234
...
31
LAMP ASM GEH-WB25X27226
...
32
LAMP, HALOGEN 20W 12V GEH-WB01X10239
...
42
NUT GEH-WB01X10336
...
84
TRANSFORMER WITH HARNESS GEH-WB26X32237
...
87
DAMPER/TRANSITION GEH-WB02X11509
...
103
BLOWER AND BRACKET ASM GEH-WB26X28614
...
133
36" LAMP PANEL GEH-WB07X32236
...
236
KNOB BLACK GEH-WB03X10140
...
359
FILTER PANEL 36" GEH-WB07X26565
...
438
TERMINAL BLOCK GEH-WB18X32232
...
558
SWITCH LAMP GEH-WB24X10077
...
559
BLOWER SWITCH GEH-WB24X32233
...
999
INSTALLATION HARDWARE GEH-WB01X10313
...
999
PM OWNERS & INSTALL GEH-49-2000061
...
999
PM INSTALL INSTRUCTIONS GEH-31-2000122
...
...
...
