GE CGU366P2M1S1 Gas Range Or Dual Fuel

Model: CGU366P2M1S1

Save
 Part Not Listed?Part Not Listed?
product name

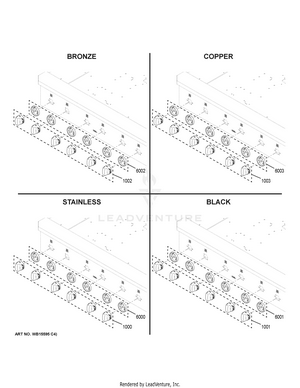

CAFE CUSTOMIZATION

...
...
1000
BRUSHED STAINLESS RANGE CONTROL KNOB GEH-WB03X31774
...
1001
BRUSHED BLACK RANGE CONTROL KNOB GEH-WB03X31975
...
1002
BRUSHED BRONZE RANGE CONTROL KNOB GEH-WB03X31778
...
1003
BRUSHED COPPER RANGE CONTROL KNOB GEH-WB03X31973
...
6000
BEZEL KNOB GEH-WB03X30031
...
6001
BRUSHED BLACK RANGE KNOB BEZEL GEH-WB03X31959
...
6002
BRUSHED BRONZE RANGE KNOB BEZEL GEH-WB03X31775
...
6003
BRUSHED COPPER RANGE KNOB BEZEL GEH-WB03X31773

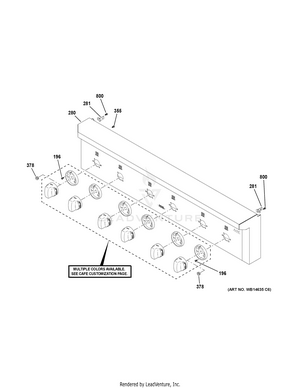

CONTROL PANEL

...
...
196
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
280
CONTROL PANEL & RAIL ASM GEH-WB36X31795
...
281
BRACKET CONTROL PANEL GEH-WB02K10211
...
355
SCREW 832 1/8 GEH-WB01K10029
...
378
BUSHING BEZEL GEH-WB02K10217
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042

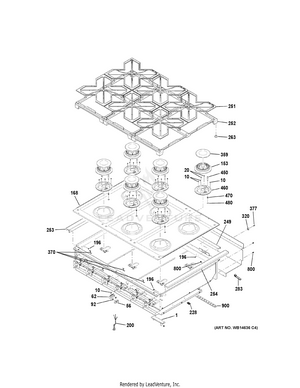

COOKTOP

...
...
1
CARRIER ORIFICE ASM GEH-WB28K10538
...
10
SCREW 8-32 MCH PNT15 GEH-WB01T10104
...
20
SCREW SIMMER MAIN HD GEH-WB01T10092
...
56
POWER CORD CLAMP GEH-WB02X9838
...
62
TERMINAL BLOCK GEH-WB17X0208
...
92
SCREW GROUND GEH-WB01X1261
...
153
BURNER HEAD ASM (18K) GEH-WB16T10043
...
168
PAN UNIT GEH-WB32X30409
...
196
SCR 8-18 AB TRP 3/8 SS GEH-WB01K10086
...
200
LINE CORD ASM GEH-WB18K10048
...
228
CLIP WIRE GEH-WB02X7066
...
249
STAINLESS STEEL TRIM BACK GEH-WB07X31819
...
251
GRATE GEH-WB31K10252
...
252
FRAME GRATE ASM GEH-WB31K10253
...
253
TRIM SIDE TOP LEFT GEH-WB07X31817
...
254
TRIM SIDE TOP RIGHT GEH-WB07X31814
...
263
FOOT GRATE GEH-WB02K10364
...
283
CLIP CABLE GEH-WB02K0031
...
320
GROMMET HANDLE GEH-WB01K0010
...
359
CAP BURNER GEH-WB13T10067
...
370
INSULATION TOP GEH-WB35K10191
...
377
SCR 8-18 AB HW 1/2 S GEH-WB01T10115
...
450
ELECTRODE TOP GEH-WB13T10065
...
460
BASE BURNER 18K-SIMMER GEH-WB16T10047
...
470
SPRING IGNITER GEH-WB09T10011
...
480
WASHER IGNITER GEH-WB02T10323
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
900
BRACKET HOLD DOWN GEH-WB02K10271

GAS & BURNER PARTS

...
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10118
...
3
SPUD ORIFICE GRILL GEH-WB28K10530
...
3
ORIFICE SPUD (NG MAIN) GEH-WB28T10155
...
3
ORIFICE SPUD LP MAIN GEH-WB28T10117
...
3
SPUD ORIFICE GRIDDLE GEH-WB28K10529
...
3
ORIFICE SPUD (NG SIMMER) GEH-WB28T10159
...
12
HARNESS BURNER BOX GEH-WB18X23754
...
21
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
30
MODULE SPARK GEH-WB13X27503
...
40
TUBE AND NUT ASM GEH-WB28K10509
...
41
TUBE AND NUT ASM GEH-WB28K10511
...
42
TUBE AND NUT ASM GEH-WB28K10510
...
43
TUBE AND NUT ASM GEH-WB28K10512
...
55
ELBOW SWAGED ASM GEH-WB28K10731
...
60
INJET BURNER 18K GEH-WB28T10114
...
111
HARNESS HV GEH-WB18K10050
...
206
SCREW GEH-WB01K10091
...
304
BRACKET INJET GEH-WB02K10192
...
306
VALVE DUAL GEH-WB21K10162
...
321
PIPE MANIFOLD ASM GEH-WB28K10549
...
322
TRANSFORMER GEH-WB27K10298
...
323
PIPE MANIFOLD ASM LF GEH-WB28K10534
...
333
REGULATOR GEH-WB21K10137
...
800
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
999
TAPE MASTIC 4" X 2" GEH-WB02K10359
...
999
PM INSTALL INSTRUCTIONS GEH-31-11127
...
999
PM MINI MANUAL GEH-31-17283
...
999
CLEANER-SS GEH-WB02T10111
...
999
PM OWNERS MANUAL GEH-49-85245
...
...
...
