product name

GE CGP95302M1S1 Gas Range Or Dual Fuel

Model: CGP95302M1S1

Save
 Part Not Listed?Part Not Listed?
product name

CAFE CUSTOMIZATION

...
...
2000
KNOB ASM SS GEH-WB03X29392
...
2001
BLACK STAINLESS RANGE CONTROL KNOB GEH-WB03X31346
...
2002
BLUSH BRONZE RANGE CONTROL KNOB GEH-WB03X31344
...
2003
COPPER RANGE CONTROL KNOB GEH-WB03X31345
...
4000
SELECTOR KNOB ASM SS GEH-WB03X29393
...
4001
BLACK STAINLESS RANGE LOCK OUT KNOB GEH-WB03X31349
...
4002
BLUSH BRONZE RANGE LOCK OUT KNOB GEH-WB03X31347
...
4003
COPPER RANGE LOCK OUT KNOB GEH-WB03X31348

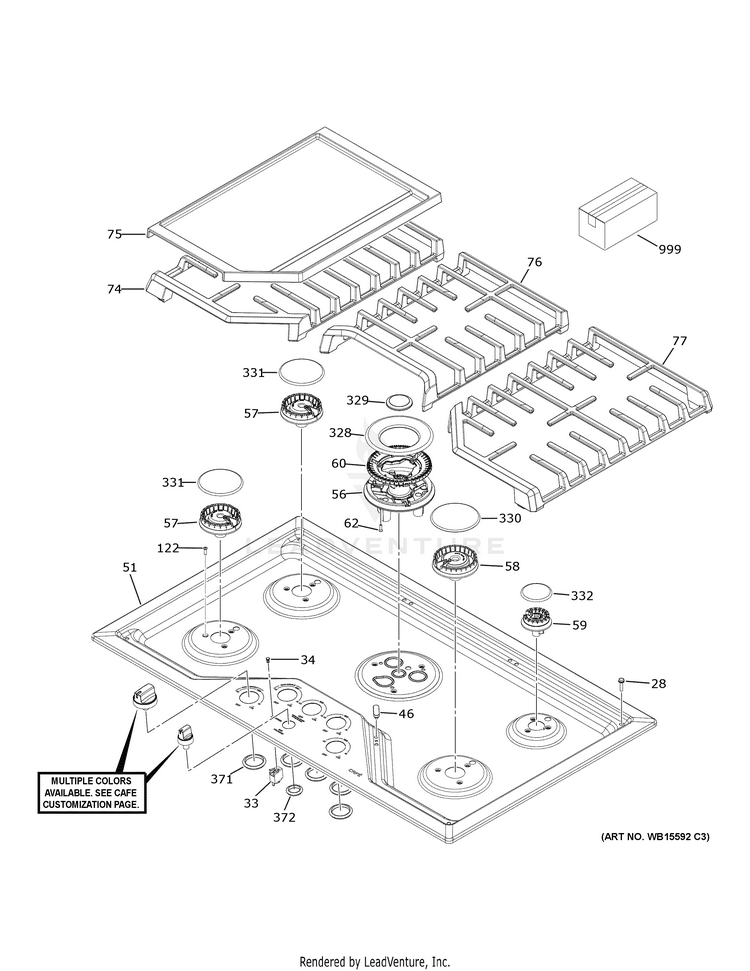

CONTROL PANEL & COOKTOP

...
...
28
BUMPER GEH-WB02X24790
...
33
LIGHT INDICATOR PILOT GEH-WB27T10627
...
34
LENS GEH-WB25X29379
...
46
BRIDGE BUMPER GEH-WB02X30761
...
51
MAINTOP ASM 30" SS GEH-WB62X31365
...
56
BURNER, LARGE V2 GEH-WB16X24723
...
57
BURNER, MEDIUM V2 GEH-WB16X24724
...
58
BURNER, SMALL V2 GEH-WB16X24721
...
59
BASE BURNER GEH-WB16X28656
...
60
HEAD BURNER GEH-WB16X28764
...
62
CKT SCREW GEH-WB01X24735
...
74
GRATE CAF LH GEH-WB31X29447
...
75
GRIDDLE GEH-WB31X29448
...
76
GRATE CAF CTR GEH-WB31X29445
...
77
GRATE CAF RH GEH-WB31X29446
...
328
CAP OUTER GEH-WB29X28253
...
329
CAP INNER GEH-WB16X28252
...
330
ASM BURNER CAP (12000) GEH-WB29K10024
...
331
ASM BURNER CAP (9500) GEH-WB29K10023
...
332
ASM. CAP, BURNER SMALL V2 GEH-WB16X28654
...
371
SEAL CNTL (BLK) GEH-WB04T10042
...
372
CONTROL SEAL BK GEH-WB35X29378
...
999
PM INSTALL INSTRUCTIONS GEH-31-11089
...
999
PM GUIDE MINI GEH-49-80801
...
999
PM INSTALL INSTRUCTIONS GEH-31-11096
...
999
PM MANUAL MINI & WD ASM GEH-31-17259

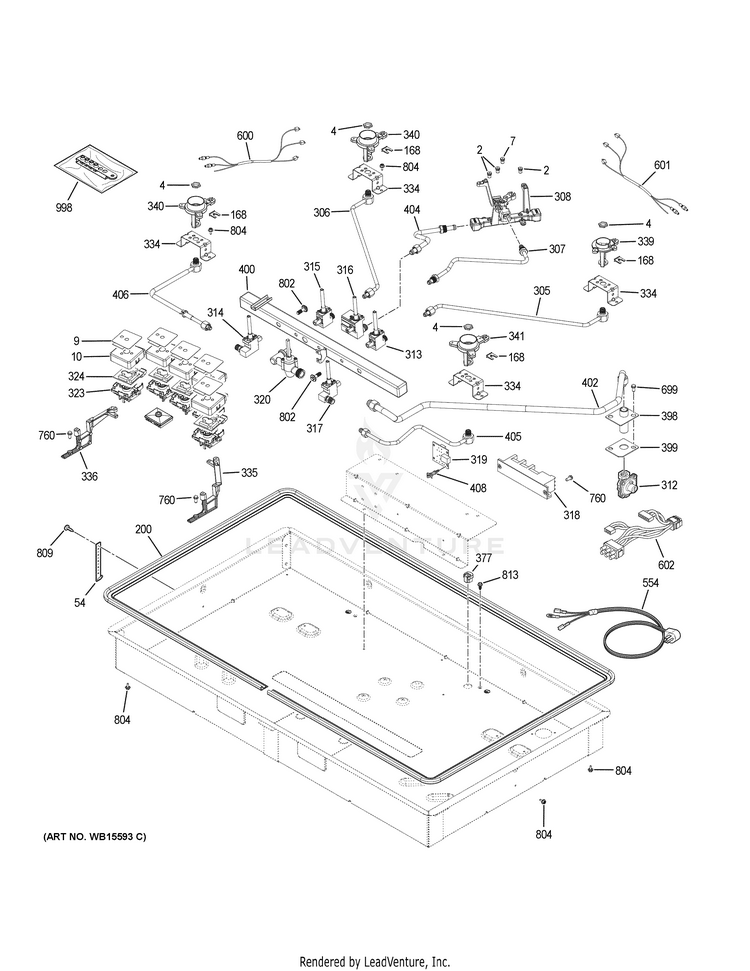

GAS & BURNER PARTS

...
...
2
ORIFICE SPUD NG GEH-WB28X29397
...
4
ECONOMIC NUT GEH-WB01K10037
...
7
ORIFICE SPUD NG GEH-WB28X29366
...
9
HOUSING FILM GEH-WB02X29383
...
10
LED BOARD HOUSING WH GEH-WB02X29380
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
200
BURNER BOX GASKET GEH-WB35X29398
...
305
GAS TUBE ASM RR GEH-WB28X29423
...
306
GAS TUBE ASM LR GEH-WB28X29421
...
307
GAS TUBE ASM SIMMER CTR GEH-WB28X29443
...
308
INJET ASM GEH-WB28X29391
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
GAS VALVE RR GEH-WB21X29318
...
314
GAS VALVE LF GEH-WB21X29321
...
315
GAS VALVE LR GEH-WB21X29319
...
316
GAS VALVE DUAL CTR GEH-WB21X29369
...
317
GAS VALVE RF GEH-WB21X29425
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
319
CONTROL BOARD LED GEH-WB27T11382
...
320
LOCKOUT VALVE GEH-WB21X29372
...
323
HARNESS SWITCH ASM GEH-WB18X29382
...
324
LED BOARD GEH-WB27X29381
...
334
MOUNTING BRACKET GEH-WB34X29316
...
335
MANIFOLD BRACKET RH GEH-WB34X29311
...
336
MANIFOLD BRACKET LH GEH-WB34X29312
...
339
INJET, SMALL V2 GEH-WB02X24728
...
340
INJET, MEDIUM V2 GEH-WB02X24727
...
341
INJET, LARGE V2 GEH-WB02X24726
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
398
SUPPLY INLET GEH-WB04T10082
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
MANIFOLD TUBE AND CLAMP ASM GEH-WB28X29373
...
402
GAS INLET TUBE ASM GEH-WB28X29444
...
404
GAS TUBE ASM MAIN CTR GEH-WB28X29442
...
405
GAS TUBE ASM RF GEH-WB28X29422
...
406
GAS TUBE ASM LF GEH-WB28X29420
...
408
STANDOFF GEH-WB02T10207
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM LT GEH-WB18X29353
...
601
IGNITERS AND HARNESS ASM RT GEH-WB18X29376
...
602
HARNESS WIRE POWER GEH-WB18X29355
...
699
WB1M1 GEH-WB1K5150
...
760
SCREW GEH-WB01K5028
...
802
SCREW 1/4-20 HXW GKT 3/4 GEH-WB01X30011
...
804
SCR 8-18 GEH-WB01X24092
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
998
LP CONVERSION KIT GEH-WB28X29968
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29861
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29862
...
...
...
