product name

GE CGP350SET2SS Gas Range

Model: CGP350SET2SS

Save
 Part Not Listed?Part Not Listed?
product name

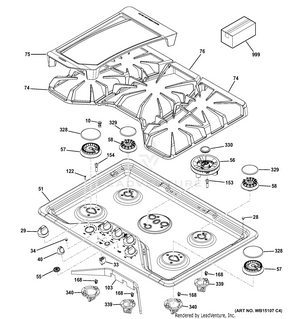

CONTROL PANEL & COOKTOP

...
...
10
SCREW LP ADJUSTMENT GEH-WB01T10122
...
28
BUMPER (BK) GEH-WB28T10278
...
29
KNOB ASSEMBLY GEH-WB03T10329
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
40
KNOB SELECTOR GEH-WB03T10320
...
51
MAINTOP ASM (CFE) GEH-WB62T10808
...
55
BADGE GE GEH-WB03X22322
...
56
3R BURNER ASM GEH-WB16X22661
...
57
BURNER MEDIUM (9500) GEH-WB16K10055
...
58
SMALL BURNER V 5K GEH-WB16K10070
...
74
GRATE LT 30 (PRF) GEH-WB31T10150
...
74
GRATE RT 30 (PRF) GEH-WB31T10149
...
75
GRIDDLE GEH-WB48T10081
...
76
GRATE CTR 30 (PRF) GEH-WB31T10148
...
103
INSULATION MAINTOP GEH-WB35T10246
...
122
SCR 6-32 CA OVT-15 5/8 GEH-WB01T10106
...
153
ELECTRODE TOP GEH-WB13T10080
...
154
ELECTRODE TOP GEH-WB13K10014
...
168
CLIP-ELECTRODE GEH-WB01K10007
...
328
ASM BURNER CAP (9500) GEH-WB29K10023
...
329
ASM BURNER CAP (5000) GEH-WB29K10022
...
330
BURNER CAP CENTRAL GEH-WB29K10045
...
339
CKT BRACKET SMALL GEH-WB02K10079
...
340
CKT BRACKET MEDIUM GEH-WB02K10078
...
999
PM INSTALL INSTRUCTIONS GEH-31-10858
...
999
PM INSTRUCTIONS INSTALL GEH-31-10847
...
999
PM INSTALL INSTRUCTIONS GEH-31-10826
...
999
PM INSTALL INSTRUCTIONS GEH-31-10823
...
999
PM MANUAL MINI & WD ASM GEH-31-17010
...
999
ORIFICE HIGH ALT KIT GEH-WB28T10279
...
999
PM OWNERS MANUAL GEH-49-80661
...
999
KIT BUTANE ASM GEH-WB28T10250
...
999
CLEANER-SS GEH-WB02T10111

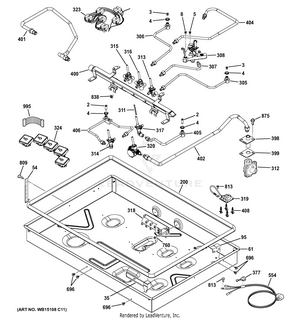

GAS & BURNER PARTS

...
...
2
ORIFICE SPUD LP 9.1K GEH-WB28T10246
...
3
ORIFICE SPUD LP 5K GEH-WB28T10245
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
ORIFICE SPUD GEH-WB28T10242
...
5
ORIFICE SPUD GEH-WB28T10243
...
8
ORIFICE SPUD GEH-WB28T10244
...
8
ORIFICE SPUD SIMMER LP GEH-WB28T10248
...
35
BUZZER (120V) GEH-WB08T10039
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10070
...
95
BRACKET GEH-WB02T10567
...
200
TAPE FOAM GEH-WB06T10016
...
305
TUBE BURNER ASM GEH-WB28T10268
...
306
TUBE BURNER ASM GEH-WB28T10269
...
307
TUBE BURNER ASM GEH-WB28T10266
...
308
INJECT TOP BURNER ASM GEH-WB28T10259
...
311
PLUG VALVE STEM GEH-WB02T10569
...
312
REGULATOR CONVERT PRESS GEH-WB19T10089
...
313
VALVE GAS GEH-WB19T10084
...
314
VALVE GAS GEH-WB19T10085
...
315
VALVE DUAL GEH-WB19T10088
...
316
VALVE DUAL GEH-WB19T10087
...
317
VALVE GAS GEH-WB19T10092
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
319
CONTROL BOARD LED GEH-WB27T11382
...
320
VALVE LOCKOUT GEH-WB19T10039
...
323
HARNESS SWITCH GEH-WB18T10509
...
324
BOARD LED ASM GEH-WB17T10027
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
398
SUPPLY INLET GEH-WB04T10082
...
399
SEAL MANIFOLD GEH-WB04T10084
...
400
BRACKET MANIFOLD ASM GEH-WB28T10249
...
401
TUBE MANIFOLD GEH-WB28T10251
...
402
TUBE SUPPLY GEH-WB28T10267
...
404
TUBE TRI RING OUTER GEH-WB28T10271
...
405
TUBE BURNER RF GEH-WB28T10272
...
406
TUBE BURNER ASM GEH-WB28T10270
...
408
STANDOFF GEH-WB02T10207
...
554
CORD RANGE GEH-WB08T10015
...
696
SCR 8-18X.450 AB FLT20 S GEH-WB01T10110
...
760
SCREW GEH-WB01K5028
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
838
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
995
HARNESS WIRE BURNER GEH-WB18T10510
...
995
HARNESS WIRE BURNER GEH-WB18T10511
...
...
...
