product name

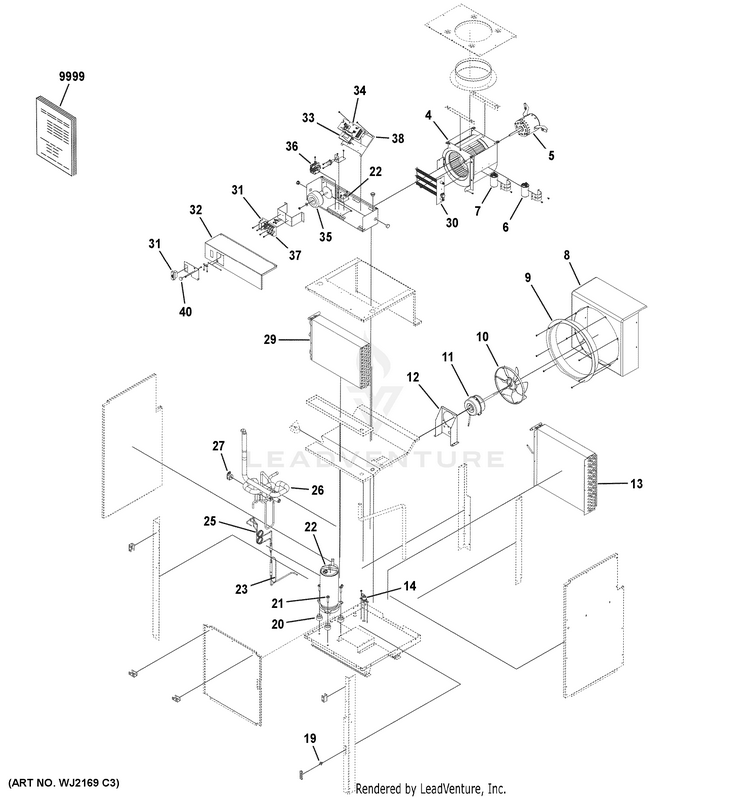

GE AZ91H18E5CK1 Room Air Conditioner Built In

Model: AZ91H18E5CK1

Save
 Part Not Listed?Part Not Listed?
product name

VERTICAL ZONELINE

...
...
4
INDOOR FAN AND HOUSING GEH-WP76X22018
...
5
INDOOR FAN MOTOR GEH-WP94X22019
...
6
CAPACITOR OUTDOOR MOTOR GEH-WP20X22008
...
7
CAPACITOR INDOOR MOTOR GEH-WP20X22007
...
8
OUTDOOR FAN SHROUD GEH-WP76X22026
...
9
SLINGER GEH-WP73X22568
...
10
OUTDOOR FAN BLADE GEH-WP73X22023
...
11
OUTDOOR FAN MOTOR GEH-WP94X22024
...
12
OUTDOOR FAN MOTOR BRACKET GEH-WP65X22025
...
13
OUTDOOR COIL GEH-WP88X22022
...
14
CONDENSATE DRAIN VALVE GEH-WP53X21939
...
19
VENT SLIDE GEH-WP71X22570
...
20
GROMMET GEH-WP01X22015
...
21
BOLT GEH-WP01X21934
...
22
COMPRESSOR AND ELECTRICALS GEH-WP98X22569
...
23
CAPILLARY TUBE HEAT GEH-WP53X22572
...
25
CAPILLARY TUBE COOL GEH-WP53X22573
...
26
REVERSING VALVE GEH-WP58X22565
...
27
SOLENOID VALVE REVERSING GEH-WP20X21995
...
29
INDOOR COIL GEH-WP88X22017
...
30
HEATER ASM GEH-WP27X22597
...
31
POWER DISCONNECT GEH-WP35X21958
...
32
CONTROL PANEL COVER GEH-WP76X22564
...
33
DISPLAY BOARD GEH-WP26X22014
...
34
MAIN BOARD GEH-WP26X22021
...
35
TRANSFORMER GEH-WP27X22004
...
36
COMPRESSOR RELAY GEH-WP20X22041
...
37
FUSE BLOCK GEH-WP20X22001
...
38
HEATER RELAY GEH-WP20X22003
...
40
SUMP TUBE GEH-WP53X24844
...
40
KNOB GEH-WP01X22567
...
9999
PM OWNERS MANUAL GEH-49-7772
...
9999
PM MINI MANUAL GEH-31-30850
...
...
...
