GE AEW18DTL1 Room Air Conditioner Portable

Model: AEW18DTL1

Save
 Part Not Listed?Part Not Listed?
product name

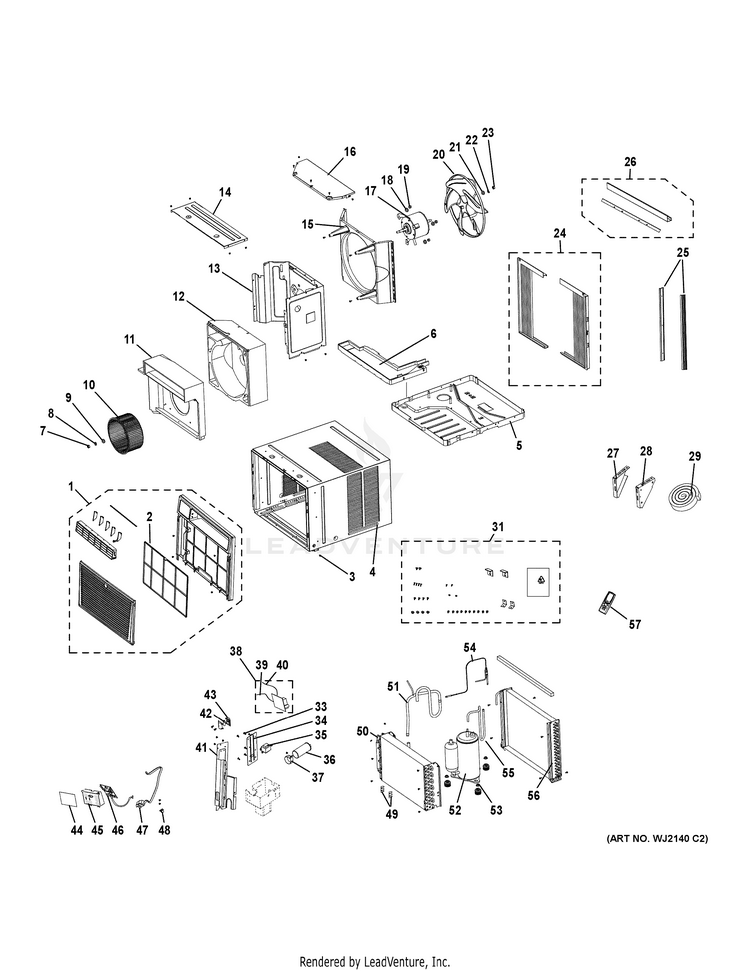

ROOM AIR CONDITIONER

...
...
1
FRONT PANEL ASM GEH-WJ71X10778
...
2
FILTER SUB-ASSY GEH-WJ71X10668
...
3
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
4
CABINET ASSY GEH-WJ90X20266
...
5
CHASSIS SUB-ASSY GEH-WJ76X20164
...
6
FOAM (WATER TRAY) GEH-WJ05X20192
...
7
NUT - WASHER GEH-WJ01X10265
...
8
WASHER GEH-WJ01X10266
...
9
GASKET (DIA 10MM) GEH-WJ43X10075
...
10
CENTRIFUGAL FAN GEH-WJ73X10204
...
11
FOAM (AIR OUTLET) GEH-WJ76X10307
...
12
PROPELLER HOUSING GEH-WJ76X10308
...
13
SUPPORT BRACKET, MOTOR GEH-WJ66X10104
...
14
TOP COVER GEH-WJ79X10274
...
15
CONDENSER COVER GEH-WJ79X10216
...
16
TOP COVER (REAR) GEH-WJ79X10217
...
17
MOTOR, FAN GEH-WJ94X10331
...
18
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
19
NUT GEH-WJ01X10329
...
20
AXIAL FLOW FAN GEH-WJ73X10190
...
21
GASKET (DIA 8MM) GEH-WJ43X10076
...
22
GASKET (DIA 8MM) GEH-WJ43X10077
...
23
NUT (M8)(LEVO) GEH-WJ01X10374
...
24
CURTAIN ASM GEH-WJ69X10018
...
25
SUPPORT TO CABINET GEH-WJ68X10065
...
26
TOP GUIDE GEH-WJ82X10062
...
27
BRKT, CASE MOUNT LH GEH-WJ67X20197
...
28
BRKT, CASE MOUNT RH GEH-WJ67X20198
...
29
FORM GASKET 1 GEH-WJ43X10079
...
31
HARDWARE ASM, INSTALL GEH-WJ01X10376
...
33
PCB SUPPORT GEH-WJ01X10354
...
34
SIDE PLATE (ELECTRIC BOX GEH-WJ71X20269
...
35
TRANSFORMER GEH-WJ27X10154
...
36
CAPACITOR GEH-WJ20X10207
...
37
CAPACITOR CLAMP GEH-WJ02X10034
...
38
MAIN BOARD GEH-WJ26X20550
...
39
THERMOSTAT GEH-WJ27X10122
...
40
TUBE SENSOR GEH-WJ27X10135
...
41
FRONT CLAPBOARD 2 GEH-WJ05X20553
...
42
PROTECTOR, OVERLOAD GEH-WJ23X10162
...
43
COVER, OLP GEH-WJ79X10255
...
44
MEMBRANE GEH-WJ01X20176
...
45
REMOTE CONTROL COVER GEH-WJ26X20179
...
46
DISPLAY BOARD GEH-WJ26X20184
...
47
POWER CORD GEH-WJ35X10167
...
48
CABLE CLAMP GEH-WJ03X10077
...
49
SIDE PLATE (ELECTRIC BOX GEH-WJ71X20269
...
50
EVAPORATOR ASSY GEH-WJ88X20554
...
51
SUCTION TUBE SUB-ASSY GEH-WJ57X20556
...
52
COMPRESSOR AND FITTINGS GEH-WJ98X20555
...
53
NUT WITH WASHER M8 GEH-WJ01X10335
...
54
CAPILLARY SUB-ASSY GEH-WJ53X20552
...
55
DISCHARGE TUBE GEH-WJ49X20551
...
56
CONDENSER ASSY GEH-WJ87X20166
...
57
REMOTE CONTROL GEH-WJ26X20522
...
...
...
