GE AEM08LXQ1 Room Air Conditioner Built In

Model: AEM08LXQ1

Save
 Part Not Listed?Part Not Listed?
product name

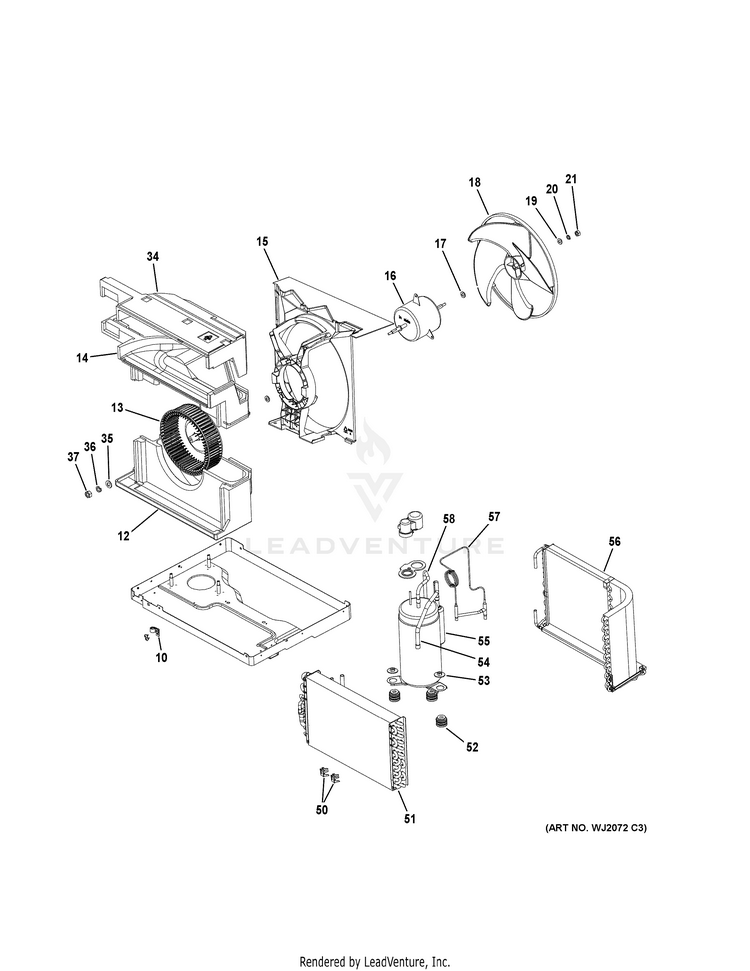

BASE PAN & UNIT PARTS

...
...
10
CABLE CLAMP GEH-WJ03X20292
...
12
INDOOR FAN SHROUD, LOWER GEH-WJ76X21208
...
13
INDOOR FAN GEH-WJ76X21842
...
14
INDOOR FAN SHROUD, CENTE GEH-WJ76X21207
...
15
MOTOR SUPPORTING GEH-WJ01X20308
...
16
FAN MOTOR GEH-WJ94X20301
...
17
GASKET (DIA 8MM) GEH-WJ43X10072
...
18
AXIAL FLOW FAN GEH-WJ73X10218
...
19
WASHER(DIA 6MM) GEH-WJ01X10347
...
20
WASHER GEH-WJ01X10313
...
21
NUT WITH WASHER GEH-WJ01X10314
...
34
INDOOR FAN SHROUD, UPPER GEH-WJ76X21209
...
35
NUT (M5) GEH-WJ01X10345
...
36
SPRING WASHER (DIA 5MM) GEH-WJ03X10074
...
37
NUT (M5) GEH-WJ01X10344
...
50
SENSOR HOLDER GEH-WJ03X10067
...
51
EVAPORATOR ASSY GEH-WJ88X20300
...
52
GROMMET GEH-WJ01X21206
...
53
BOLT GEH-WJ01X20241
...
54
TUBE, SUCTION GEH-WJ57X10045
...
55
COMPRESSOR AND FITTINGS GEH-WJ98X21203
...
56
CONDENSER ASM GEH-WJ88X21853
...
57
CAPILLARY ASM GEH-WJ53X21854
...
58
DISCHARGE TUBE GEH-WJ53X21204

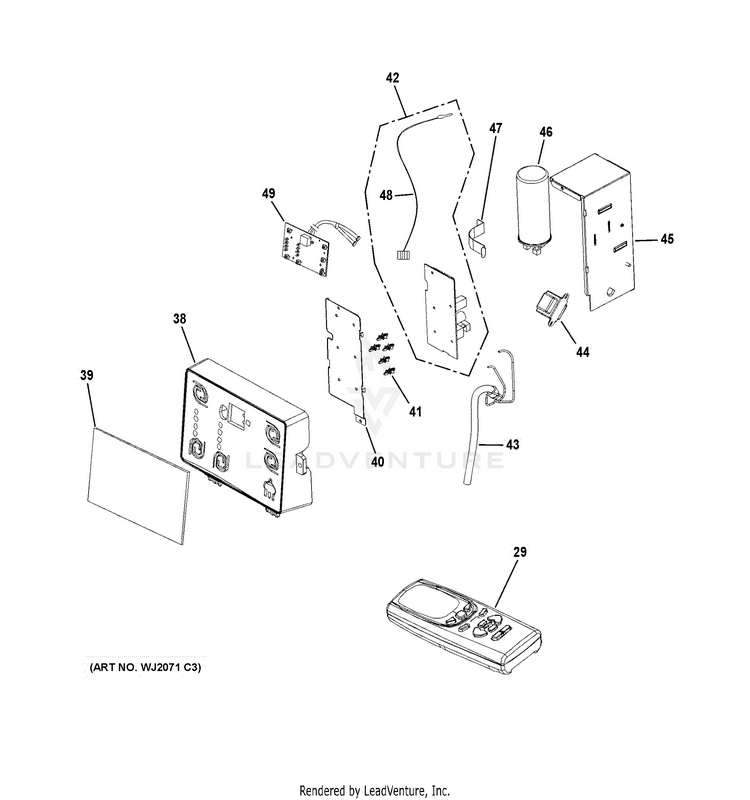

CONTROL PARTS

...
...
29
REMOTE CONTROL GEH-WJ26X20522
...
38
ELECTRIC CONTROLLER BOX GEH-WJ07X20251
...
39
ESCUTCHEON GEH-WJ07X20239
...
40
ELECTRIC BOX COVER GEH-WJ79X20299
...
41
PCB SUPPORT GEH-WJ01X10354
...
42
MAIN BOARD GEH-WJ26X21847
...
43
POWER CORD GEH-WJ35X10173
...
44
TRANSFORMER GEH-WJ27X20257
...
45
ELECTRIC BOX ASSY GEH-WJ26X20298
...
46
CAPACITOR GEH-WJ20X21201
...
47
CAPACITOR CLAMP GEH-WJ02X20245
...
48
THERMOSTAT GEH-WJ27X10122
...
49
DISPLAY BOARD GEH-WJ26X20184

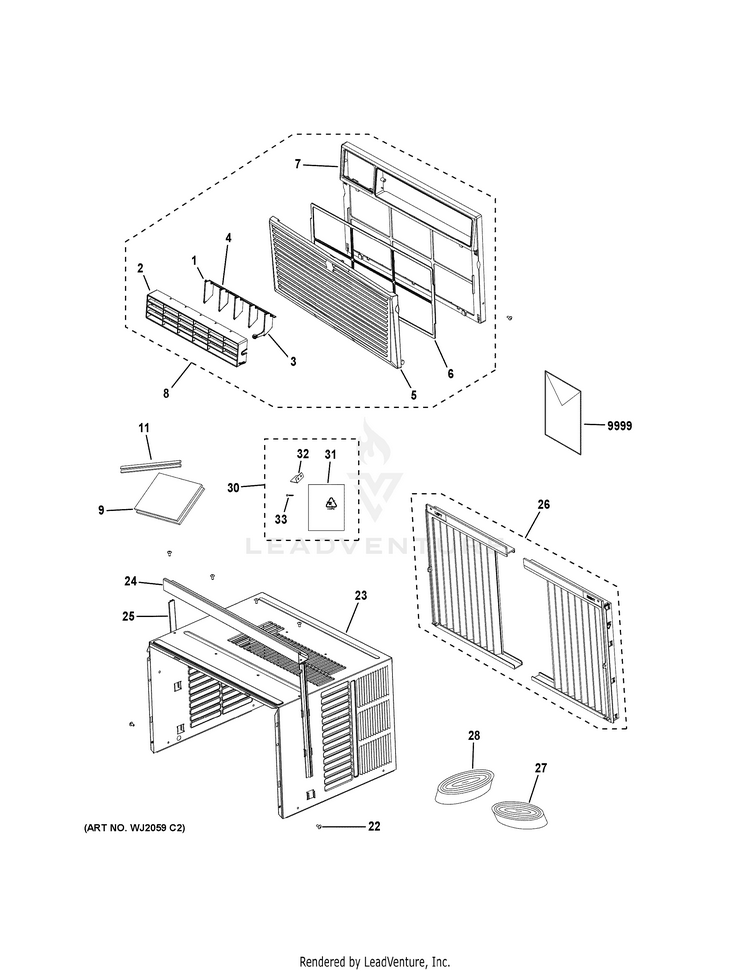

GRILLE & CHASSIS PARTS

...
...
1
SWING LOUVER 2 GEH-WJ71X10574
...
2
AIR GUIDE FRAME GEH-WJ14X20288
...
3
SWING LOUVER 1 GEH-WJ71X10573
...
4
LINK VERTICAL LOUVER GEH-WJ71X20305
...
5
AIR INTAKE PANEL GEH-WJ71X20289
...
6
FILTER SUB-ASSY GEH-WJ71X20302
...
7
FRONT CASE GEH-WJ82X20303
...
8
FRONT PANEL ASSY GEH-WJ82X20304
...
9
FOAM INSULATION PANEL GEH-WJ43X21205
...
11
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
22
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
23
CABINET GEH-WJ90X20291
...
24
TOP RAIL GEH-WJ65X21840
...
25
CONNECTION BAR TO CABINE GEH-WJ66X10084
...
26
CURTAIN ASM GEH-WJ01X10353
...
27
GASKET SEAL 1 GEH-WJ43X10073
...
28
GASKET SEAL 2 GEH-WJ43X10074
...
30
HARDWARE ASM, INSTALL GEH-WJ01X10349
...
31
SCREW BAG GEH-WJ01X20254
...
32
WINDOW LOCKING BRACKET GEH-WJ66X10098
...
33
SCREW GEH-WJ01X10351
...
9999
PM MINI-MANUAL GEH-31-30762
...
...
...
