GE AEM06LVQ1 Room Air Conditioner Portable

Model: AEM06LVQ1

Save
 Part Not Listed?Part Not Listed?
product name

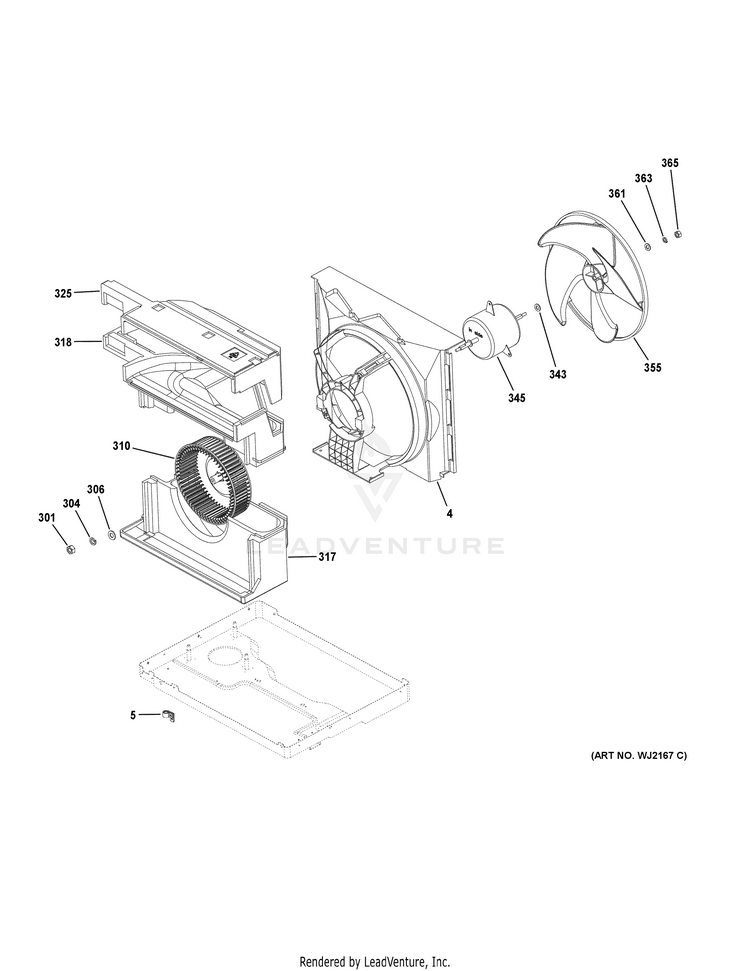

BASE PAN PARTS

...
...
4
MOTOR SUPPORTING GEH-WJ01X10346
...
5
CABLE CLAMP GEH-WJ02X10035
...
301
NUT (M5) GEH-WJ01X10344
...
304
SPRING WASHER (DIA 5MM) GEH-WJ03X10074
...
306
NUT (M5) GEH-WJ01X10345
...
310
CENTRIFUGAL FAN GEH-WJ94X21202
...
317
HOUSING,PROPELLER LOWER GEH-WJ76X10314
...
318
HOUSING PROPELLER GEH-WJ76X21843
...
325
COVER TOP GEH-WJ76X21844
...
343
GASKET (DIA 8MM) GEH-WJ43X10072
...
345
MOTOR, FAN GEH-WJ94X10337
...
355
AXIAL FLOW FAN GEH-WJ73X10218
...
361
WASHER(DIA 6MM) GEH-WJ01X10347
...
363
WASHER GEH-WJ01X10313
...
365
NUT WITH WASHER GEH-WJ01X10314

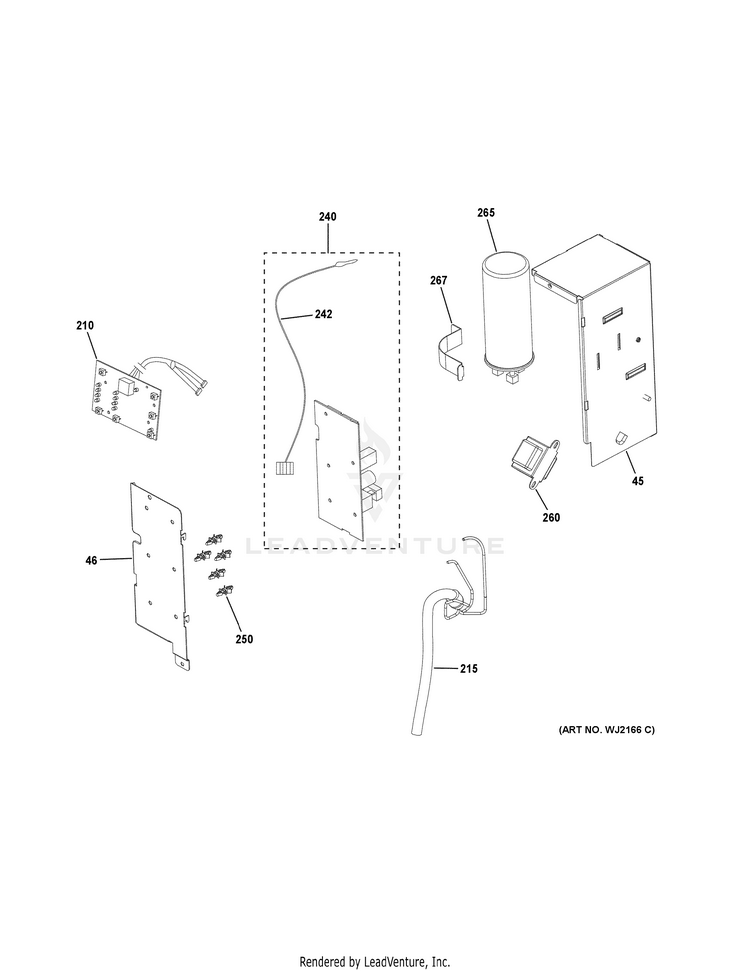

CONTROL PARTS

...
...
45
ELECTRIC BOX ASSY GEH-WJ07X20250
...
46
ELECTRIC BOX 2 GEH-WJ26X10322
...
210
DISPLAY BOARD GEH-WJ26X20184
...
215
POWER CORD GEH-WJ35X10172
...
240
MAIN BOARD GEH-WJ26X20520
...
242
THERMOSTAT GEH-WJ27X10122
...
250
PCB SUPPORT GEH-WJ01X10354
...
260
TRANSFORMER GEH-WJ27X20257
...
265
CAPACITOR GEH-WJ20X20244
...
267
CAPACITOR CLAMP GEH-WJ02X10032

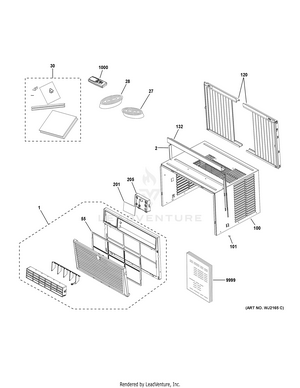

GRILLE & CHASSIS PARTS

...
...
1
PANEL ASM, FRONT GEH-WJ82X10084
...
2
CONNECTION BAR TO CABINE GEH-WJ66X10084
...
27
GASKET SEAL 1 GEH-WJ43X10073
...
28
GASKET SEAL 2 GEH-WJ43X10074
...
30
HARDWARE ASM, INSTALL GEH-WJ01X10349
...
55
FILTER SUB-ASSY GEH-WJ71X10657
...
100
CABINET ASM GEH-WJ90X10123
...
101
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
120
CURTAIN ASM GEH-WJ01X10353
...
132
TOP RAIL GEH-WJ66X10083
...
201
ESCUTCHEON GEH-WJ07X20239
...
205
ELECTRIC CONTROLLER BOX GEH-WJ07X20251
...
1000
REMOTE CONTROL GEH-WJ26X20522
...
9999
PM OWNERS MANUAL GEH-49-7751-1
...
9999
PM MINI-MANUAL GEH-31-30769

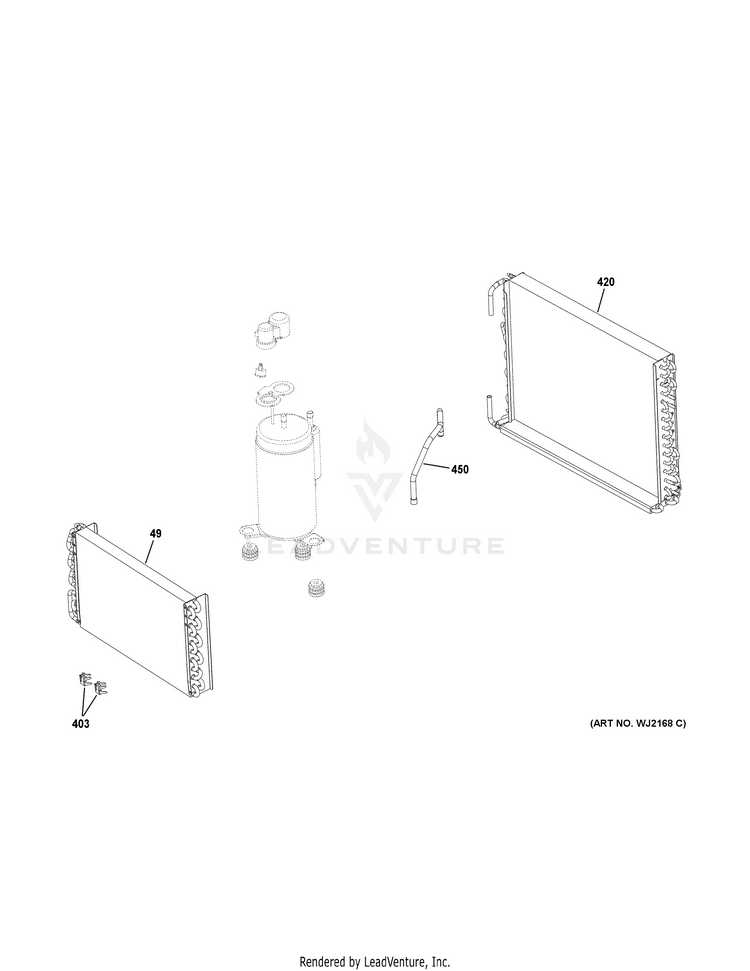

UNIT PARTS

...
...
49
EVAPORATOR ASM GEH-WJ88X10253
...
403
SENSOR HOLDER GEH-WJ03X10067
...
420
CONDENSER ASM GEH-WJ87X10278
...
450
TUBE, SUCTION GEH-WJ57X10043
...
...
...
