product name

GE AEM06LTQ1 Room Air Conditioner

Model: AEM06LTQ1

Save
 Part Not Listed?Part Not Listed?
product name

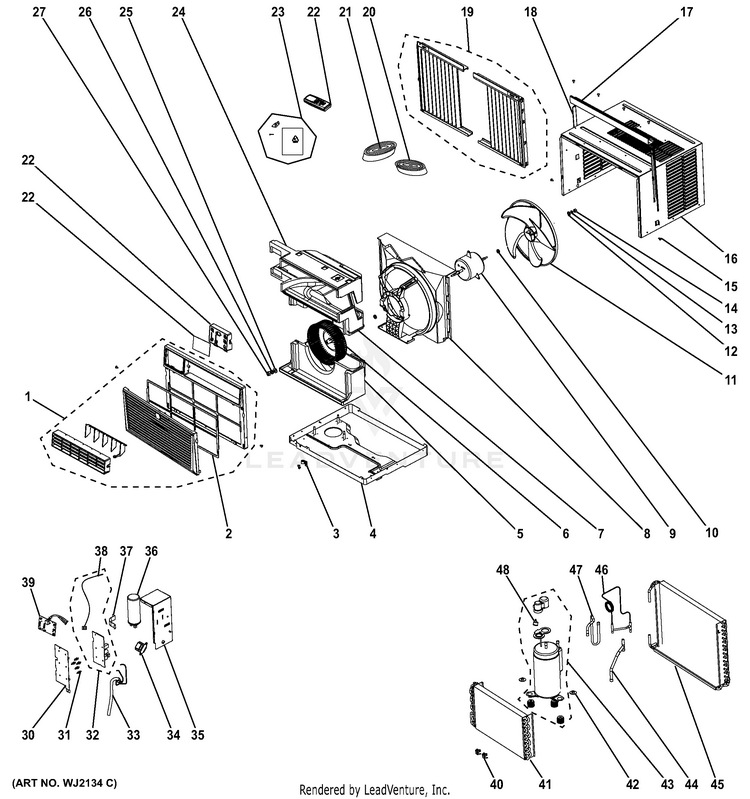

ROOM AIR CONDITIONER

...
...
1
PANEL ASM, FRONT GEH-WJ82X10084
...
2
FILTER SUB-ASSY GEH-WJ71X10657
...
3
CABLE CLAMP GEH-WJ02X10035
...
4
BASE ASM GEH-WJX20242
...
5
HOUSING,PROPELLER LOWER GEH-WJ76X10314
...
6
CENTRIFUGAL FAN GEH-WJ73X10186
...
7
HOUSING, PROPELLER GEH-WJ76X10315
...
8
MOTOR SUPPORTING GEH-WJ01X10346
...
9
MOTOR, FAN GEH-WJ94X10337
...
10
GASKET (DIA 8MM) GEH-WJ43X10072
...
11
AXIAL FLOW FAN GEH-WJ73X10218
...
12
WASHER(DIA 6MM) GEH-WJ01X10347
...
13
WASHER GEH-WJ01X10313
...
14
NUT WITH WASHER GEH-WJ01X10314
...
15
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
16
CABINET ASM GEH-WJ90X10123
...
16
CABINET ASSY GEH-WJ90X20243
...
17
TOP RAIL GEH-WJ66X10083
...
17
TOP RAIL GEH-WJ82X20256
...
18
CONNECTION BAR TO CABINE GEH-WJ66X10084
...
19
CURTAIN ASM GEH-WJ01X10353
...
20
GASKET SEAL 1 GEH-WJ43X10073
...
21
GASKET SEAL 2 GEH-WJ43X10074
...
22
REMOTE CONTROL GEH-WJ26X20522
...
23
HARDWARE ASM, INSTALL GEH-WJ01X10349
...
24
COVER, TOP GEH-WJ79X10252
...
25
NUT (M5) GEH-WJ01X10345
...
26
SPRING WASHER (DIA 5MM) GEH-WJ03X10074
...
27
NUT (M5) GEH-WJ01X10344
...
30
ELECTRIC BOX 2 GEH-WJ26X10322
...
31
PCB SUPPORT GEH-WJ01X10354
...
32
MAIN BOARD GEH-WJ26X20520
...
33
POWER CORD GEH-WJ35X10172
...
34
TRANSFORMER GEH-WJ27X20257
...
35
ELECTRIC BOX ASSY GEH-WJ07X20250
...
36
CAPACITOR GEH-WJ20X20523
...
37
CAPACITOR CLAMP GEH-WJ02X10032
...
37
CAPACITOR CLAMP GEH-WJ02X20245
...
38
ROOM SENSOR 15K GEH-WJ27X10103
...
38
THERMOSTAT GEH-WJ27X10122
...
39
DISPLAY BOARD GEH-WJ26X20184
...
40
SENSOR HOLDER GEH-WJ03X10067
...
41
EVAPORATOR ASM GEH-WJ88X10253
...
42
BOLT GEH-WJ01X20241
...
42
NUT WITH WASHER M6 GEH-WJ01X10432
...
43
COMPRESSOR AND FITTINGS GEH-WJ98X20524
...
44
SUCTION TUBE GEH-WJ57X20255
...
44
TUBE, SUCTION GEH-WJ57X10043
...
45
CONDENSER ASM GEH-WJ87X10274
...
46
CAPILLARY ASSY GEH-WJ53X20246
...
47
DISCHARGE TUBE GEH-WJ49X20521
...
48
OVERLOAD, COMPRESSOR GEH-WJ23X10158
...
...
...
