product name

GE AEL24DVL1 Room Air Conditioner Portable

Model: AEL24DVL1

Save
 Part Not Listed?Part Not Listed?
product name

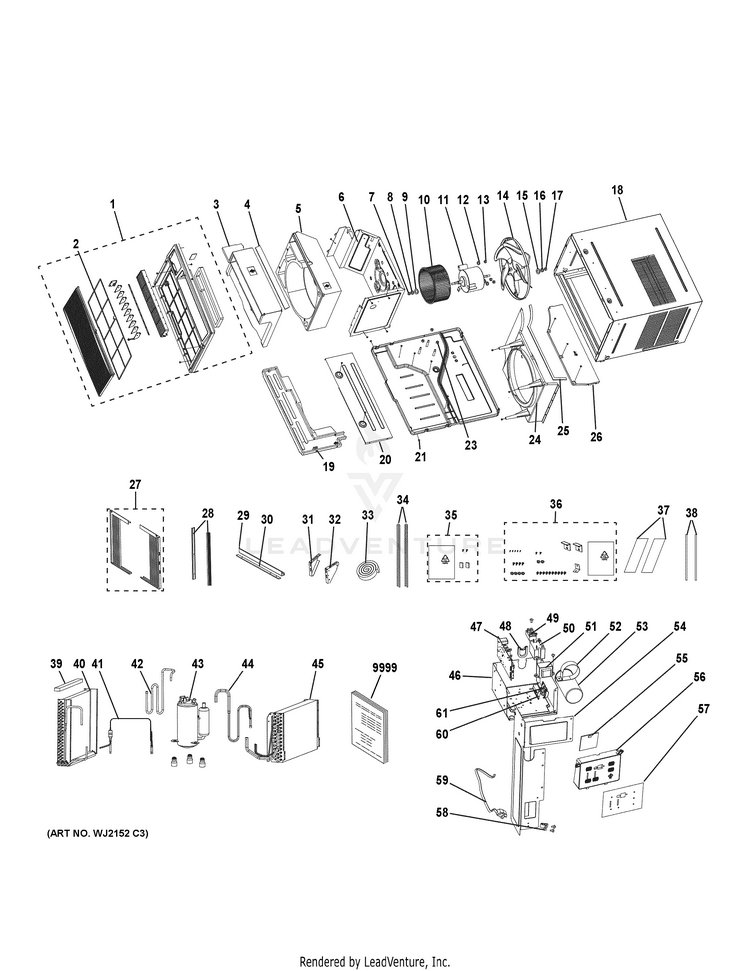

ROOM AIR CONDITIONER

...
...
1
PANEL ASM, FRONT GEH-WJ82X10091
...
2
FILTER GEH-WJ71X10710
...
3
FOAM AIR OUTLET GEH-WJ76X10338
...
4
SPONGE(CONNECTING FOAM) GEH-WJ43X20216
...
5
HOUSING, PROPELLER GEH-WJ76X10310
...
6
MOTOR SUPPORTING GEH-WJ01X20212
...
7
NUT - WASHER GEH-WJ01X10265
...
8
WASHER GEH-WJ01X10266
...
9
GASKET (DIA 10MM) GEH-WJ43X10075
...
10
CENTRIFUGAL FAN GEH-WJ73X21249
...
11
MOTOR, FAN GEH-WJ94X10332
...
12
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
13
NUT GEH-WJ01X10329
...
14
AXIAL FLOW FAN GEH-WJ73X21247
...
15
GASKET (DIA 8MM) GEH-WJ43X10076
...
16
GASKET (DIA 8MM) GEH-WJ43X10077
...
17
NUT (M8)(LEVO) GEH-WJ01X10374
...
18
CABINET ASSY GEH-WJ90X20542
...
19
TRAY, WATER GEH-WJ05X10064
...
20
TOP PLATE GEH-WJ79X10244
...
21
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
23
NUT WITH WASHER M8 GEH-WJ01X10335
...
24
CONDENSOR COVER GEH-WJ88X21256
...
25
SPONGE REAR CLAPBOARD P GEH-WJ66X10094
...
26
TOP PLATE GEH-WJ79X10246
...
27
CURTAIN ASM GEH-WJ69X10017
...
28
SUPPORT, CABINET GEH-WJ68X10064
...
29
TOP GUIDE GEH-WJ82X10069
...
30
FORM GASKET GEH-WJ43X10082
...
31
BRKT, CASE MOUNT LH GEH-WJ67X20197
...
32
BRKT, CASE MOUNT RH GEH-WJ67X20198
...
33
FORM GASKET 1 GEH-WJ43X10079
...
34
FORM GASKET 2 GEH-WJ43X10080
...
35
HARDWARE KIT GEH-WJ01X10415
...
36
INSTALLATION HARDWARE GEH-WJ01X21257
...
37
R1 SEALING SPONGE GEH-WJ43X21258
...
38
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
39
SPONGE(CONDENSER) GEH-WJ43X20215
...
40
CONDENSER ASSY GEH-WJ88X21929
...
41
CAPILLARY SUB ASSY GEH-WJ53X21927
...
42
DISCHARGE TUBE GEH-WJ53X21930
...
43
COMPRESSOR AND FITTINGS GEH-WJ98X21928
...
44
INHALATION TUBE SUB ASSY GEH-WJ53X21933
...
45
EVAPORATOR ASSY GEH-WJ87X21931
...
46
ELECTRIC BOX SUB-ASSY 1 GEH-WJ07X20206
...
47
MAIN BOARD GEH-WJ26X21885
...
48
CABLE CROSS LOOP GEH-WJ01X20199
...
49
TERMINAL BOARD GEH-WJ26X10310
...
50
RELAY GEH-WJ24X20540
...
51
TRANSFORMER GEH-WJ27X10154
...
52
CAPACITORCLAMP GEH-WJ02X20201
...
53
CAPACITOR CBB65 GEH-WJ20X20200
...
54
CONTROL ASM COVER GEH-WJ26X21932
...
55
DISPLAY BOARD GEH-WJ26X21846
...
56
LCD COVER GEH-WJ07X20210
...
57
MEMBRANE GEH-WJ07X20211
...
58
CABLE CLAMP GEH-WJ03X10077
...
59
POWER CORD GEH-WJ35X10168
...
60
COVER, OLP GEH-WJ79X10255
...
61
PROTECTOR, OVERLOAD GEH-WJ23X10162
...
9999
PM OWNERS MANUAL GEH-49-7714-1
...
...
...
