product name

GE AEL10AVL1 Room Air Conditioner Portable

Model: AEL10AVL1

Save
 Part Not Listed?Part Not Listed?
product name

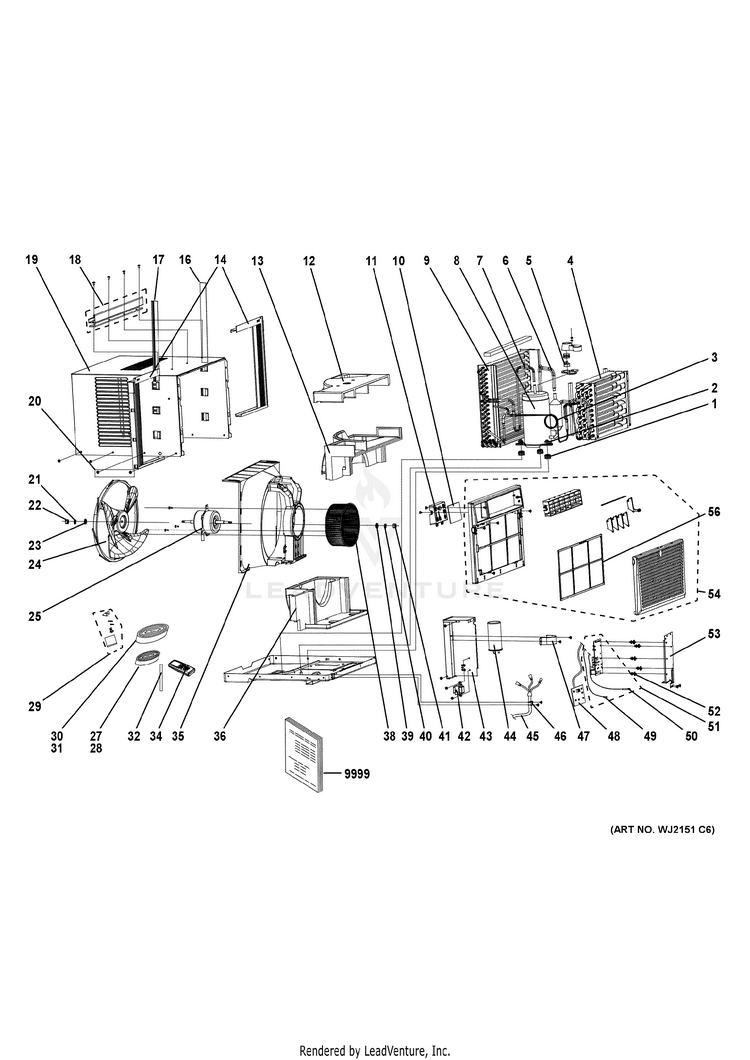

ROOM AIR CONDITIONER

...
...
1
GROMMET, RUBBER GEH-WJ01X10435
...
2
NUT GEH-WJ01X10447
...
3
CAPILLARY SUB-ASSY GEH-WJ53X21233
...
4
EVAPORATOR ASM GEH-WJ87X21898
...
5
OVERLOAD PROTECTOR GEH-WJ20X21287
...
6
SUCTION TUBE GEH-WJ53X21281
...
7
DISCHARGE TUBE GEH-WJ53X21897
...
8
COMPRESSOR AND FITTINGS GEH-WJ98X21285
...
9
CONDENSER ASM GEH-WJ88X21896
...
10
ESCUTCHEON GEH-WJ07X20239
...
11
LCD COVER GEH-WJ05X20235
...
12
INDOOR FAN SHROUD UPPER GEH-WJ76X21806
...
13
INDOOR FAN SHROUD CENTER GEH-WJ76X21808
...
14
CURTAIN ASM GEH-WJ86X21887
...
16
SIDE PANEL RAIL LEFT GEH-WJ65X21892
...
17
SIDE PANEL RAIL RIGHT GEH-WJ65X21893
...
18
TOP RAIL GEH-WJ65X21824
...
19
CABINET ASSY GEH-WJ90X21226
...
20
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
21
WASHER GEH-WJ01X10313
...
22
NUT WITH WASHER GEH-WJ01X10314
...
23
WASHER GEH-WJ01X10312
...
24
OUTDOOR FAN GEH-WJ73X21228
...
25
FAN MOTOR GEH-WJ94X21809
...
27
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
28
CURTAIN SEAL GEH-WJ43X21888
...
29
INSTALL HARDWARE GEH-WJ01X21231
...
30
GASKET SEAL 1 GEH-WJ01X10425
...
31
GASKET SEAL 2 GEH-WJ01X10426
...
32
CURTAIN SEAL TOP RAIL GEH-WJ43X21889
...
34
REMOTE CONTROL GEH-WJ26X20522
...
35
OUTDOOR FAN SHROUD GEH-WJ76X21810
...
36
INDOOR FAN SHROUD LOWER GEH-WJ76X21807
...
38
CENTRIFUGAL FAN GEH-WJ94X21804
...
39
WASHER(DIA 6MM) GEH-WJ01X10347
...
40
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
41
NUT GEH-WJ01X10329
...
42
TRANSFORMER GEH-WJ27X20238
...
43
ELECTRIC BOX GEH-WJ05X20228
...
44
CAPACITOR GEH-WJ20X21201
...
45
POWER CORD GEH-WJ35X10173
...
46
CABLE CLAMP GEH-WJ03X20292
...
47
CAPACITOR CLAMP GEH-WJ03X20231
...
48
DISPLAY BOARD GEH-WJ26X21846
...
49
SENSOR, TUBE" GEH-WJ62X10023
...
50
THERMOSTAT GEH-WJ27X10122
...
51
MAIN BOARD GEH-WJ26X21894
...
52
PCB SUPPORT GEH-WJ65X20236
...
53
ELECTRIC BOX COVER GEH-WJ05X20229
...
54
FRONT PANEL ASSY GEH-WJ71X21259
...
56
FILTER GEH-WJ85X21215
...
9999
PM OWNERS & INSTALL GEH-49-7712
...
...
...
