GE AEH24DSL1 Room Air Conditioner Portable

Model: AEH24DSL1

Save
 Part Not Listed?Part Not Listed?
product name

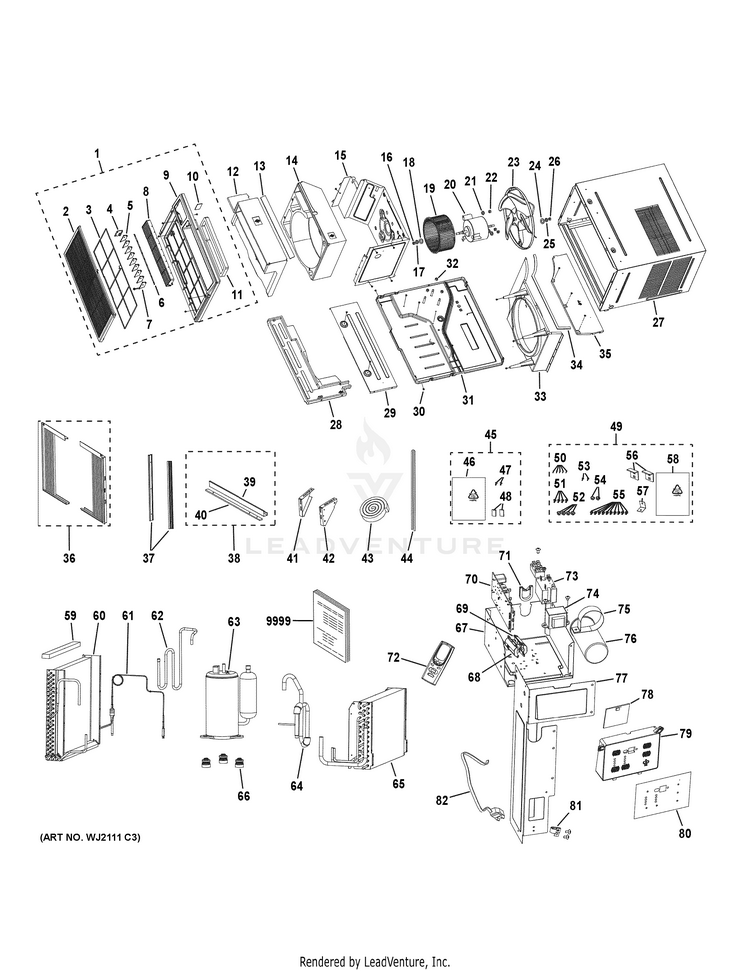

ROOM AIR CONDITIONER

...
...
1
FRONT PANEL ASM GEH-WJ82X10070
...
2
FRONT PANEL GEH-WJ71X10715
...
3
FILTER GEH-WJ71X10710
...
4
SUPPORT OF LOUVER GEH-WJ01X10310
...
5
SWING LOUVER GEH-WJ71X10711
...
6
LINK VERTICAL LOUVER GEH-WJ71X10712
...
7
SWING LOUVER 1 GEH-WJ71X10716
...
8
AIR GUIDE GEH-WJ70X10065
...
9
GRILL FRONT, AIR INTAKE GEH-WJ82X10078
...
10
SPONGE 1 (PANEL FRAME) GEH-WJ43X20218
...
11
SPONGE (PANEL FRAME) GEH-WJ43X20217
...
12
FOAM AIR OUTLET GEH-WJ76X10338
...
13
SPONGE(CONNECTING FOAM) GEH-WJ43X20216
...
14
HOUSING, PROPELLER GEH-WJ76X10310
...
15
MOTOR SUPPORTING GEH-WJ01X20212
...
16
NUT - WASHER GEH-WJ01X10265
...
17
WASHER GEH-WJ01X10266
...
18
GASKET (DIA 10MM) GEH-WJ43X10075
...
19
CENTRIFUGAL FAN GEH-WJ73X10204
...
20
FAN MOTOR GEH-WJ94X20207
...
21
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
22
NUT GEH-WJ01X10329
...
23
AXIAL FLOW FAN GEH-WJ73X10190
...
24
GASKET (DIA 8MM) GEH-WJ43X10076
...
25
GASKET (DIA 8MM) GEH-WJ43X10077
...
26
NUT (M8)(LEVO) GEH-WJ01X10374
...
27
CABINET ASM GEH-WJ90X10135
...
28
TRAY, WATER GEH-WJ05X10064
...
29
TOP PLATE GEH-WJ79X10244
...
30
SELF-TAPPING SCREW GEH-WJ01X10352
...
31
CHASSIS SUB-ASSY GEH-WJ05X20203
...
32
NUT WITH WASHER M8 GEH-WJ01X10335
...
33
CONDENSER COVER GEH-WJ79X10245
...
34
SPONGE REAR CLAPBOARD P GEH-WJ66X10094
...
35
TOP PLATE GEH-WJ79X10246
...
36
CURTAIN ASM GEH-WJ69X10017
...
37
SUPPORT, CABINET GEH-WJ68X10064
...
38
CURTAIN ASM GEH-WJ71X10714
...
39
TOP GUIDE GEH-WJ82X10069
...
40
FORM GASKET GEH-WJ43X10082
...
41
BRKT, CASE MOUNT LH GEH-WJ67X20197
...
42
BRKT, CASE MOUNT RH GEH-WJ67X20198
...
43
FORM GASKET 1 GEH-WJ43X10079
...
44
FORM GASKET 2 GEH-WJ43X10080
...
45
HARDWARE KIT GEH-WJ01X10415
...
46
PLASTIC BAG GEH-WJ01X10350
...
47
SCREW ST4.2X13 TA GEH-WJ01X20213
...
48
FORM GASKET 4 GEH-WJ43X20208
...
49
HARDWARE, INSTALLATION GEH-WJ01X10433
...
50
SCREW ST4.2X19 TA GEH-WJ01X20214
...
51
BOLT M5X13 GEH-WJ05X10057
...
52
NUT M5X5 GEH-WJ01X10377
...
53
BOLT M6X19 GEH-WJ05X10056
...
54
NUT M6X6 GEH-WJ01X10378
...
55
SCREW M4.8X8 GEH-WJ01X10379
...
56
L- SUPPORT GEH-WJ82X20174
...
57
WINDOW LOCKING BRACKET GEH-WJ67X20219
...
58
PLASTIC BAG GEH-WJ01X10350
...
59
SPONGE(CONDENSER) GEH-WJ43X20215
...
60
CONDENSER ASM GEH-WJ87X10263
...
61
CAPILLARY SUB-ASSY GEH-WJ53X20202
...
62
DISCHARGE TUBE GEH-WJ49X10058
...
63
COMPRESSOR AND FITTINGS GEH-WJ98X20204
...
64
SUCTION TUBE GEH-WJ57X10056
...
65
EVAPORATOR ASSY GEH-WJ88X10240
...
66
COMPRESSOR GASKET GEH-WJ01X20205
...
67
ELECTRIC BOX SUB-ASSY 1 GEH-WJ07X20206
...
68
COVER, OLP GEH-WJ79X10255
...
69
PROTECTOR, OVERLOAD GEH-WJ23X10162
...
70
MAIN BOARD GEH-WJ26X20175
...
71
CABLE CROSS LOOP GEH-WJ01X20199
...
72
REMOTE CONTROL GEH-WJ26X20522
...
73
RELAY GEH-WJ24X10004
...
74
TRANSFORMER GEH-WJ27X10154
...
75
CAPACITORCLAMP GEH-WJ02X20201
...
76
CAPACITOR CBB65 GEH-WJ20X20200
...
77
FRONT CLAPBOARD 2 GEH-WJ05X20209
...
78
DISPLAY BOARD GEH-WJ26X20184
...
79
LCD COVER GEH-WJ07X20210
...
80
MEMBRANE GEH-WJ07X20211
...
81
CABLE CLAMP GEH-WJ03X10077
...
82
POWER CORD GEH-WJ35X10168
...
9999
PM OWNERS MANUAL GEH-49-7715
...
...
...
