GE AEH24DKH1 Room Air Conditioner Built In

Model: AEH24DKH1

Save
 Part Not Listed?Part Not Listed?
product name

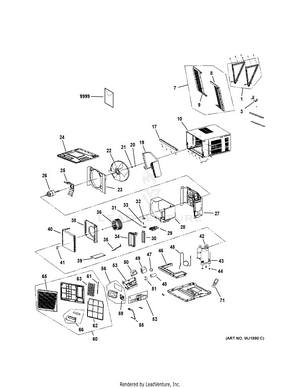

ROOM AIR CONDITIONER

...
...
1
SUPPORTER ASM GEH-WJ01X10302
...
3
WINDOW LOCKING BRACKET GEH-WJ01X10293
...
7
WINDOW KIT GEH-WJ71X10527
...
8
CURTAIN SUPPORT ASM RT GEH-WJ01X10300
...
9
CURTAIN SUPPORT ASM LT GEH-WJ01X10301
...
10
CABINET ASM GEH-WJ90X10102
...
17
TOP RAIL GEH-WJ66X10072
...
19
CONDENSER ASM GEH-WJ88X10149
...
20
NUT - WASHER GEH-WJ01X10265
...
21
WASHER GEH-WJ01X10266
...
22
FAN BLADE O.D. GEH-WJ73X10144
...
23
CASE - COND GEH-WJ76X10209
...
24
TOP CONNETING PLATE GEH-WJ11X10022
...
25
MOUNT MOTOR GEH-WJ95X10012
...
26
MOTOR GEH-WJ94X10239
...
27
FRONT CLAPBOARD GEH-WJ71X10471
...
28
CASE EVAP GEH-WJ76X10210
...
29
AIR OUTLET FOAM GEH-WJ44X10014
...
30
SWING LOUVER GEH-WJ71X10472
...
31
SWING LINKAGE GEH-WJ01X10267
...
32
FAN MOTOR GEH-WJ94X10213
...
33
INFLECTIONAL AXIS GEH-WJ01X10268
...
34
SWING SUPPORT GEH-WJ71X10473
...
35
AIR GUIDE GEH-WJ70X10048
...
36
BLOWER GEH-WJ73X10145
...
38
PLATE CASING GEH-WJ76X10211
...
39
BASE PLATE GEH-WJ89X10055
...
40
EVAPORATOR ASM GEH-WJ87X10171
...
41
SENSOR HOLDER GEH-WJ03X10067
...
42
COMPRESSOR GEH-WJ98X10189
...
43
COMPRESSOR GASKET GEH-WJ43X10059
...
44
NUT - WASHER GEH-WJ01X10269
...
45
CAPILLARY ASM GEH-WJ53X10127
...
46
DRAIN TRAY GEH-WJ89X10056
...
47
CAPACITOR GEH-WJ20X10128
...
48
CAPACITOR GEH-WJ20X10135
...
49
RELAY GEH-WJ24X10004
...
50
TRANSFORMER GEH-WJ27X10072
...
51
CAPACITOR CLAMP GEH-WJ03X10066
...
52
MAIN PCB GEH-WJ26X10241
...
53
ELECTRIC CONTROL BOX GEH-WJ26X10219
...
55
POWER CORD GEH-WJ35X10104
...
56
CONTROL PANEL ASM GEH-WJ07X10208
...
59
DISPLAY BOARD GEH-WJ26X10243
...
60
FRONT PANEL ASM GEH-WJ71X10533
...
61
GUIDE LOUVER LINKAGE GEH-WJ65X10089
...
62
FILTER GEH-WJ71X10509
...
63
GUIDE LOUVER GEH-WJ71X10531
...
65
FRONT PANEL DOOR GEH-WJ71X10532
...
66
CONTROL DOOR ASM GEH-WJ43X10067
...
71
REMOTE CONTROL GEH-WJ26X20522
...
9999
OM AIR CONDITIONER GEH-49-7562
...
9999
MINI MANUAL GEH-31-61311

GE AEH24DKH1

...
...
1
Supporter Assembly GEH-Wj01X10302
...
3
Window Locking Bracket GEH-Wj01X10293
...
7
Window Kit GEH-Wj71X10527
...
8
Curtain Support Assembly Rt GEH-WJ71X10527
...
9
Curtain Support Assembly Lt GEH-WJ71X10527
...
10
Cabinet Assembly GEH-Wj90X10102
...
17
Top Rail GEH-Wj66X10072
...
19
Condenser Assembly GEH-Wj88X10149
...
20
Nut - Washer GEH-Wj01X10265
...
21
Washer GEH-Wj01X10266
...
22
Fan Blade O.D. GEH-Wj73X10144
...
23
Case - Cond GEH-Wj76X10209
...
24
Top Conneting Plate GEH-Wj11X10022
...
25
Mount Motor GEH-Wj95X10012
...
26
Motor GEH-Wj94X10239
...
27
Front Clapboard GEH-Wj71X10471
...
28
Case Evap GEH-Wj76X10210
...
29
Air Outlet Foam GEH-Wj44X10014
...
30
Swing Louver GEH-Wj71X10472
...
31
Swing Linkage GEH-Wj01X10267
...
32
Fan Motor GEH-Wj94X10213
...
33
Inflectional Axis GEH-Wj01X10268
...
34
Swing Support GEH-Wj71X10473
...
35
Air Guide GEH-Wj70X10048
...
36
Blower GEH-Wj73X10145
...
38
Plate Casing GEH-Wj76X10211
...
39
Base Plate GEH-Wj89X10055
...
40
Evaporator Assembly GEH-Wj87X10171
...
41
Sensor Holder GEH-Wj03X10067
...
42
Compressor GEH-Wj98X10189
...
43
Compressor Gasket GEH-Wj43X10059
...
44
Nut - Washer GEH-Wj01X10269
...
45
Capillary Assembly GEH-Wj53X10127
...
46
Drain Tray GEH-Wj89X10056
...
47
Capacitor GEH-Wj20X10128
...
48
Capacitor GEH-Wj20X10135
...
49
Relay GEH-Wj24X10004
...
50
Transformer GEH-Wj27X10072
...
51
Capacitor Clamp GEH-Wj03X10066
...
52
Main Pcb GEH-Wj26X10241
...
53
Electric Control Box GEH-Wj26X10219
...
55
Power Cord GEH-Wj35X10104
...
56
Control Panel Assembly GEH-Wj07X10208
...
59
Display Board GEH-Wj26X10243
...
60
Front Panel Assembly GEH-Wj71X10533
...
61
Guide Louver Linkage GEH-Wj65X10089
...
62
Filter GEH-Wj71X10509
...
63
Guide Louver GEH-Wj71X10531
...
65
Front Panel Door GEH-Wj71X10532
...
66
Control Door Assembly GEH-Wj43X10067
...
71
Remote Control GEH-Wj26X20522
...
9999
Mini Manual GEH-31-61311
...
9999
Om Air Conditioner GEH-49-7562
...
...
...
