product name

GE AEE08ATL1 Room Air Conditioner Portable

Model: AEE08ATL1

Save
 Part Not Listed?Part Not Listed?
product name

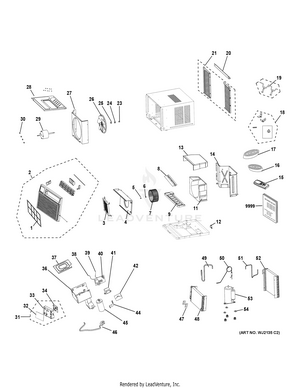

ROOM AIR CONDITIONER

...
...
1
FILTER GEH-WJ71X10571
...
2
PANEL ASM, FRONT GEH-WJ71X10777
...
3
HEATER, ELECTRIC GEH-WJ27X10167
...
4
FRONT INSULATION PLATE GEH-WJ76X10254
...
5
NUT (M8) GEH-WJ01X20351
...
6
SPRING WASHER(DIA 8MM) GEH-WJ03X10075
...
7
CENTRIFUGAL FAN SUB-ASSY GEH-WJ73X20320
...
8
SHIELD GEH-WJ70X10057
...
9
DRAINAGE PAN GEH-WJ70X10058
...
11
LOWER PROPELLER HOUSING GEH-WJ76X20345
...
12
DRAIN VALVE GEH-WJ58X10044
...
13
UPPER AIRFLOW HOUSING GEH-WJ76X10340
...
14
MOTOR SUPPORTING ASSY GEH-WJ94X20347
...
15
REMOTE CONTROL GEH-WJ26X20522
...
16
FORM GASKET 1 GEH-WJ43X20337
...
17
SEAL STRIP 2 GEH-WJ44X10016
...
18
HARDWARE ASM, INSTALL GEH-WJ01X20615
...
19
MOUNTING RACK SUB-ASSY GEH-WJ01X20349
...
20
TOP GUIDE SUB-ASSY GEH-WJ01X20358
...
21
CURTAIN ASM GEH-WJ68X20325
...
23
NUT WITH WASHER GEH-WJ01X10314
...
24
WASHER GEH-WJ01X10313
...
25
WASHER GEH-WJ01X10312
...
26
AXIAL FLOW FAN GEH-WJ73X20314
...
27
CONDENSER COVER GEH-WJ71X20324
...
28
TOP CONNETING PLATE GEH-WJ11X10023
...
29
FAN MOTOR GEH-WJ95X10029
...
30
NUT (M4) GEH-WJ01X20350
...
31
DISPLAY BOARD SUB ASM GEH-WJ26X20612
...
32
ESCUTCHEON GEH-WJ07X10265
...
33
PANEL, CONTROL GEH-WJ82X10099
...
34
BOARD, DISPLAY GEH-WJ26X10375
...
36
ELECTRIC BOX GEH-WJ79X10271
...
37
ELECTRIC BOX COVER GEH-WJ26X10279
...
38
SENSOR, ROOM TEMP. GEH-WJ27X10168
...
39
SENSOR, AIR DISCHARGE GEH-WJ27X10169
...
40
MAIN BOARD GEH-WJ29X10052
...
41
TRANSFORMER GEH-WJ27X10170
...
42
COMPRESSOR CAPACITOR GEH-WJ20X10146
...
44
CAPACITOR CLAMP GEH-WJ02X10032
...
45
CAPACITOR CBB65 GEH-WJ20X20441
...
46
POWER CORD (LCDI) GEH-WJ35X10136
...
47
SENSOR HOLDER GEH-WJ03X10067
...
48
EVAPORATOR ASM GEH-WJ88X10264
...
49
SUCTION PIPE GEH-WJ57X10025
...
50
CAPILLARY SUB ASM GEH-WJ53X20617
...
51
DISCHARGE TUBE GEH-WJ49X20618
...
52
CONDENSER ASSY GEH-WJ87X20372
...
53
COMPRESSOR AND FITTINGS GEH-WJ98X20295
...
54
BOLT GEH-WJ01X20241
...
9999
PM MINI MANUAL GEH-31-30727
...
...
...
