GE AED10AVL1 Room Air Conditioner Portable

Model: AED10AVL1

Save
 Part Not Listed?Part Not Listed?
product name

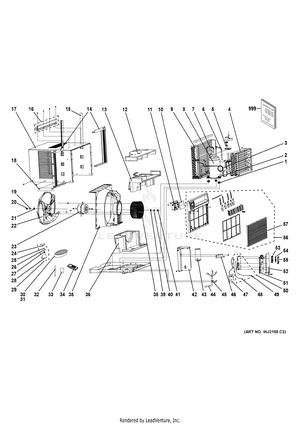

ROOM AIR CONDITIONER

...
...
1
GROMMET, RUBBER GEH-WJ01X10435
...
2
NUT GEH-WJ01X10447
...
3
CAPILLARY TUBE ASSY GEH-WJ53X21283
...
4
EVAPORATOR ASSY GEH-WJ87X21280
...
5
OVERLOAD PROTECTOR GEH-WJ20X21287
...
6
SUCTION TUBE GEH-WJ53X21281
...
7
DISCHARGE TUBE GEH-WJ53X21284
...
8
COMPRESSOR AND FITTINGS GEH-WJ98X21285
...
9
CONDENSER ASSY GEH-WJ88X21223
...
10
OVERLAY GEH-WJ71X21286
...
11
LCD COVER GEH-WJ05X20235
...
12
INDOOR FAN SHROUD, UPPER GEH-WJ76X21222
...
13
INDOOR FAN SHROUD, CENTE GEH-WJ76X21227
...
14
CURTAIN ASSY GEH-WJ86X21220
...
15
SIDE PANEL RAIL GEH-WJ65X21225
...
16
TOP RAIL GEH-WJ65X21224
...
17
CABINET ASSY GEH-WJ90X21226
...
18
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
19
WASHER GEH-WJ01X10313
...
20
NUT WITH WASHER GEH-WJ01X10314
...
21
WASHER GEH-WJ01X10312
...
22
OUTDOOR FAN GEH-WJ73X21228
...
23
FAN MOTOR GEH-WJ94X20527
...
24
WINDOW LOCKING BRACKET GEH-WJ66X20230
...
25
SCREW GEH-WJ01X10351
...
26
SCREW SUB-ASM GEH-WJ01X21463
...
27
INSTALLATION CLAMP 1 GEH-WJ43X20227
...
28
SCREW BAG GEH-WJ01X20254
...
29
INSTALL HARDWARE GEH-WJ01X21231
...
30
GASKET SEAL 1 GEH-WJ01X10425
...
31
GASKET SEAL 2 GEH-WJ01X10426
...
32
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
33
FOAM INSULATION PANEL GEH-WJ43X21229
...
34
REMOTE CONTROL GEH-WJ26X20522
...
35
OUTDOOR FAN SHROUD GEH-WJ76X21234
...
36
INDOOR FAN SHROUD, LOWER GEH-WJ76X21213
...
38
CENTRIFUGAL FAN GEH-WJ94X21214
...
39
WASHER(DIA 6MM) GEH-WJ01X10347
...
40
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
41
NUT GEH-WJ01X10329
...
42
ELECTRIC BOX GEH-WJ05X20228
...
43
CAPACITOR GEH-WJ20X20220
...
44
POWER CORD GEH-WJ35X10173
...
45
CABLE CLAMP GEH-WJ03X20292
...
46
CAPACITOR CLAMP GEH-WJ03X10089
...
47
DISPLAY BOARD GEH-WJ26X20184
...
48
SENSOR, TUBE" GEH-WJ62X10023
...
49
THERMOSTAT GEH-WJ27X10122
...
50
MAIN BOARD GEH-WJ26X21282
...
51
MAIN BOARD SUPPORT GEH-WJ65X21301
...
52
ELECTRIC BOX COVER GEH-WJ76X21300
...
53
WIFI BOX GEH-WJ26X21302
...
54
WIFI MODULE GEH-WJ26X21304
...
55
WIFI BOX COVER GEH-WJ76X21303
...
56
FRONT PANEL ASSY GEH-WJ71X21219
...
57
FILTER GEH-WJ85X21215
...
999
PM MINI-MANUAL GEH-31-30785
...
999
PM OWNERS MANUAL GEH-49-7753
...
...
...
