product name

GE 4680012 Refrigerator

Model: 4680012

Save
 Part Not Listed?Part Not Listed?
product name

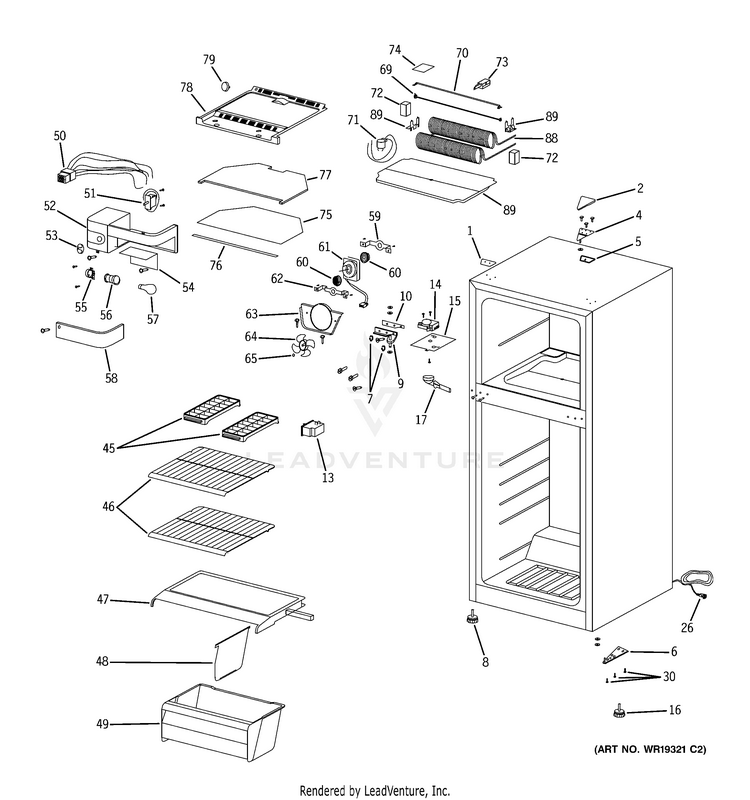

CABINET

...
...
1
COVER HINGE TOP SCREW GEH-WR02X11519
...
2
COVER HINGE TOP GEH-WR02X11492
...
4
HINGE TOP ASSY GEH-WR13X10291
...
5
SPACER TOP HINGE GEH-WR01X10390
...
6
HINGE BOTTOM ASSY GEH-WR13X10292
...
7
WASHER MIDDLE HINGE GEH-WR01X10391
...
8
LEG ASSY LEFT ADJ GEH-WR02X11493
...
9
HINGE MIDDLE LH GEH-WR13X10298
...
10
SPACER HINGE MIDDLE GEH-WR01X10392
...
13
SWITCH DOOR GEH-WR23X10320
...
14
TIMER DEFROST GEH-WR09X10101
...
15
COVER TIMER DEFROST GEH-WR02X11494
...
16
LEG ASSY RH ADJ GEH-WR02X11495
...
17
DRAIN CONNECTOR GEH-WR02X11550
...
26
POWER CORD GEH-WR23X10300
...
30
SCREW HINGE BTM GEH-WR01X10393
...
45
TRAY ICE GEH-WR30X0311
...
46
WIRE SHELF FF GEH-WR71X10497
...
47
COVER VEG PAN GEH-WR32X10445
...
48
DIVIDER VEG BIN GEH-WR17X11464
...
49
VEGETABLE BIN GEH-WR32X10431
...
50
WIRE HARNESS GEH-WR23X10332
...
51
THERMOSTAT GEH-WR09X10097
...
52
HOUSING CONTROL GEH-WR17X11465
...
53
KNOB THERMOSTAT GEH-WR02X11507
...
54
SHIELD LIGHT GEH-WR17X11466
...
55
LIGHT HOLDER FIXTURE GEH-WR02X11551
...
56
SOCKET LIGHT GEH-WR02X11509
...
57
40WATT 15AMP GEH-40A15
...
58
COVER LAMP GEH-WR02X11510
...
59
BRKT REAR EVAP FAN GEH-WR02X11511
...
60
BUSHING - RUBBER GEH-WR02X11512
...
61
MOTOR EVAP FAN GEH-WR60X10126
...
62
BRKT FRONT EVAP FAN GEH-WR02X11513
...
63
MOTOR FIXTURE BRKT GEH-WR02X11514
...
64
BLADE FAN GEH-WR60X10127
...
65
SPRING FAN RETAINING GEH-WR01X10415
...
69
DEFROST HEATER GEH-WR51X10075
...
70
STOPPER DEFROST HEATER GEH-WR02X11515
...
71
DEFROST THERMOSTAT GEH-WR50X10041
...
72
FOAM BLOCK GEH-WR14X10157
...
73
INSULATION EVAPORATOR GEH-WR82X10089
...
74
SHIELD WIRE CAP GEH-WR17X11469
...
75
REFLECTOR METAL EVAP GEH-WR38X10306
...
76
STRIP INS TOP EVAP GEH-WR82X10090
...
77
INSULATION TOP EVAP GEH-WR82X10091
...
78
FLOOR EVAPORATOR GEH-WR17X11470
...
79
CAP ICE MAKER GEH-WR02X11552
...
88
EVAPORATOR ASSY GEH-WR85X10056
...
89
DRAIN PAN ASSY GEH-WR17X11468

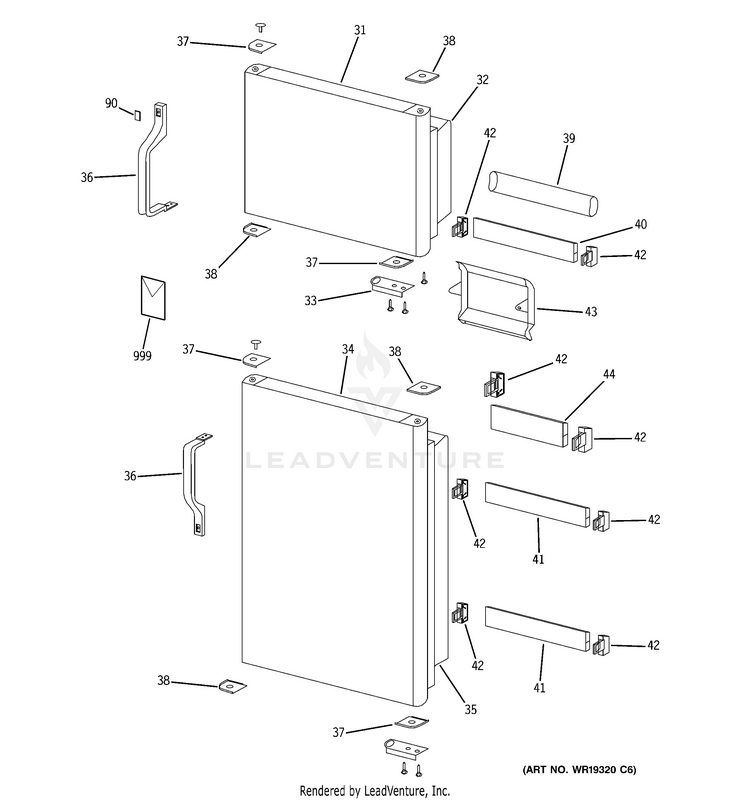

DOORS

...
...
31
DOOR FOAM ASS'Y FZ GEH-WR78X10868
...
32
DOOR GASKET FZ GEH-WR14X10155
...
33
STOPPER DOOR FZ GEH-WR02X11518
...
34
DOOR FOAM ASS'Y FF GEH-WR78X10814
...
35
GASKET DOOR FF GEH-WR14X10158
...
36
HANDLE GEH-WR02X11558
...
37
DOOR END CAP LH GEH-WR02X11559
...
38
DOOR END CAP RH GEH-WR02X11560
...
39
FZ SHELF FRT(BIG) GEH-WR17X11474
...
40
FZ SHELF FRONT(LITTLE) GEH-WR17X11473
...
41
RACK SHELF FRT (BIG) GEH-WR17X11504
...
42
DOOR END CAP OF DR SHLF GEH-WR02X11521
...
43
DAIRY DOOR GEH-WR22X10044
...
44
RACK SHELF FRT (LITTLE) GEH-WR17X11472
...
90
NAME PLATE GEH-WR04X10131
...
999
SEARS KENMORE TOP FRZ U& GEH-SR6200

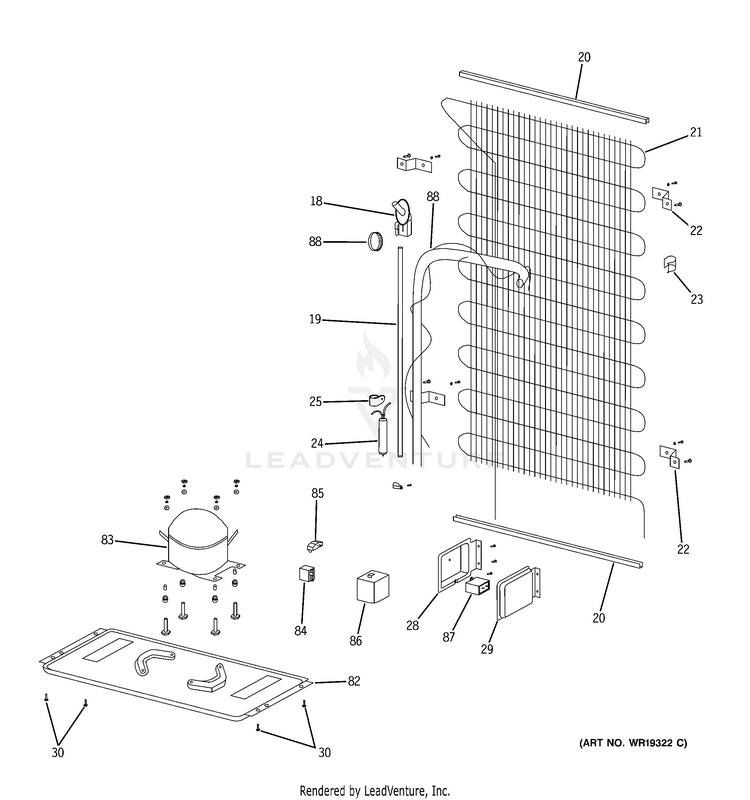

UNIT PARTS

...
...
18
DRAIN TUBE CONNECTOR GEH-WR02X11553
...
19
TUBE DRAIN GEH-WR02X11498
...
20
TRIM CONDENSER GEH-WR38X10303
...
21
CONDENSER GEH-WR62X10036
...
22
BRACKET CONDENSER GEH-WR02X11499
...
23
STOPPER CONDENSER GEH-WR02X11500
...
24
P/S DRYER KIT R134A GEH-WR86X0096
...
25
DRYER FIXTURE TRAP GEH-WR02X11501
...
28
COVER ELECTRIC BOX GEH-WR02X11502
...
29
ELECTRIC BOX GEH-WR02X11503
...
30
SCREW HINGE BTM GEH-WR01X10393
...
82
PAN BASE GEH-WR17X11467
...
83
COMPRESSOR GEH-WR87X10090
...
84
STARTER RELAY GEH-WR07X10077
...
85
OVERLOAD PROTECTOR GEH-WR08X10054
...
86
PROTECTOR CAP GEH-WR02X11557
...
87
CAPACITOR GEH-WR62X10037
...
88
EVAPORATOR ASSY GEH-WR85X10056
...
...
...
