Echo SV-5C S/N: 05001001 - 05999999 Lawn Mower

Model: SV-5C S/N: 05001001 - 05999999

Save
 Part Not Listed?Part Not Listed?
product name

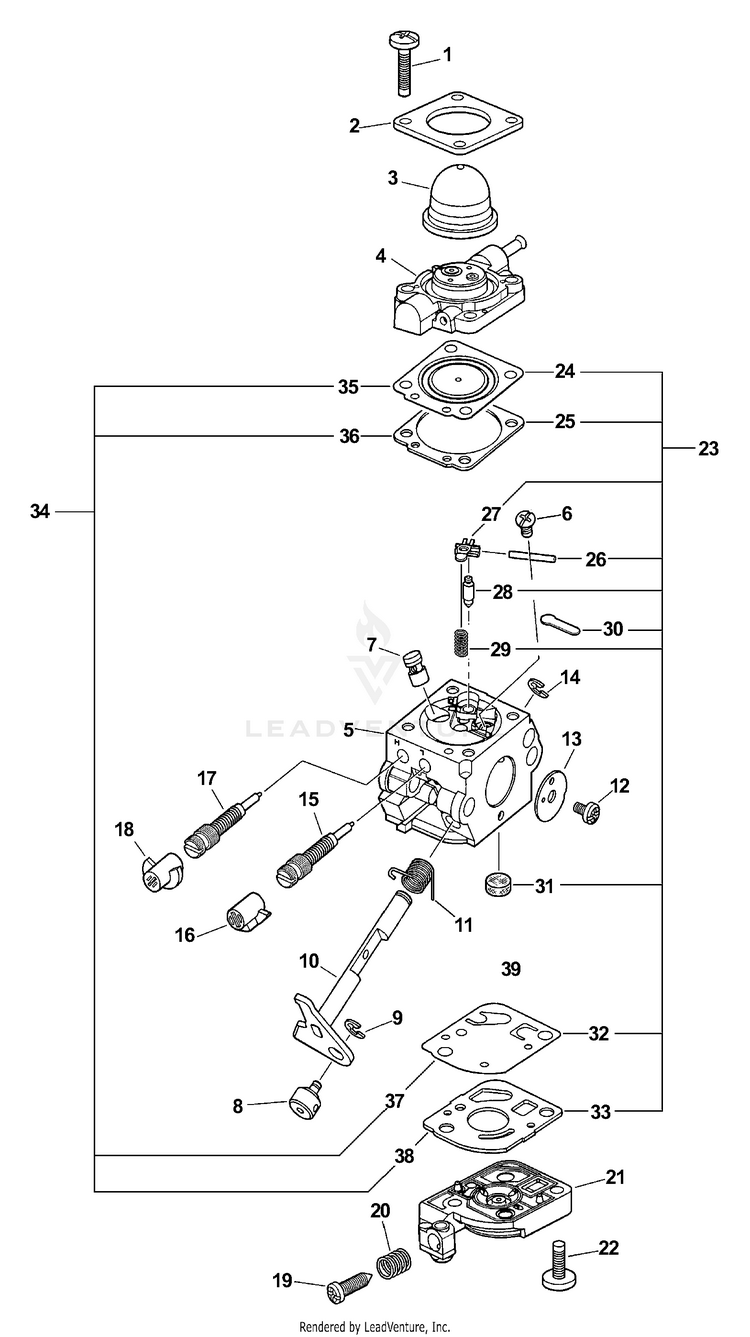

Carburetor

...
...
xx
CARBURETOR, SV-5H LW 2020 ECH-12520013129
...
1
SCREW ECH-P005000980
...
2
RETAINER, PURGE BULB ECH-P005000620
...
3
BULB, PURGE ECH-P005003120
...
4
BODY ASSY, PURGE ECH-P005000970
...
5
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
...
6
SCREW ECH-12533942030
...
7
NOZZLE, CHECK VALVE ECH-12537613120
...
8
SWIVEL ECH-12537242030
...
9
CLIP ECH-125327-13930
...
10
SHAFT, THROTTLE ECH-12531713310
...
11
SPRING, THROTTLE RETURN ECH-12531342030
...
12
SCREW ECH-12531413930
...
13
VALVE, THROTTLE ECH-12531649030
...
14
E-RING ECH-12532715130
...
15
NEEDLE, MIXTURE ECH-12531813120
...
16
CAP, LIMITER - WHITE ECH-12532909860
...
17
NEEDLE, HIGH SPEED ECH-12532013310
...
18
CAP, LIMITER - RED ECH-12532939030
...
19
SCREW, THROTTLE ADJUST ECH-12533406960
...
20
SPRING ECH-12533306960
...
21
COVER, FUEL PUMP ECH-12532412820
...
22
SCREW ECH-12531012820
...
23
REBUILD KIT INCLUDES ITEMS 24-33 ECH-12530012820
...
24
DIAPHRAGM, METERING ECH---
...
25
GASKET, METERING ECH---
...
26
PIN, METERING LEVER ECH---
...
27
LEVER, METERING ECH---
...
28
VALVE, INLET NEEDLE ECH---
...
29
SPRING, METERING LEVER ECH---
...
30
PLUG, WELCH ECH---
...
31
STRAINER ECH---
...
32
DIAPHRAGM, PUMP ECH---
...
33
GASKET, PUMP ECH---
...
34
GASKET / DIAPHRAGM KIT INCLUDES ITEMS 35-38 ECH-12530320560
...
35
DIAPHRAGM, METERING ECH---
...
36
GASKET, METERING ECH---
...
37
DIAPHRAGM, PUMP ECH---
...
38
GASKET, PUMP ECH---

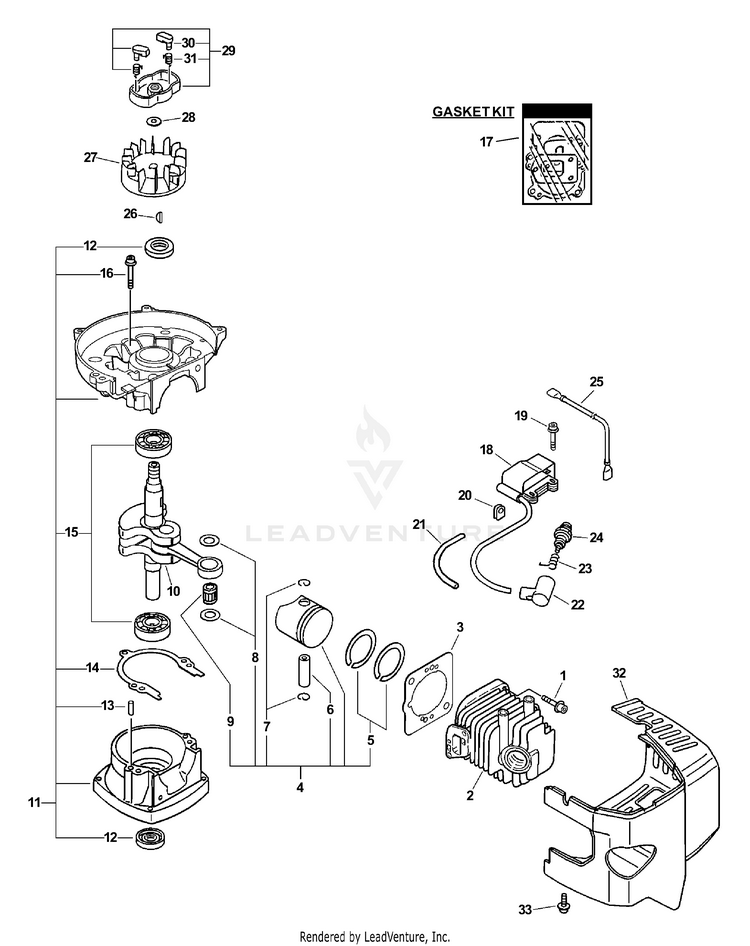

Engine, Ignition, Starter Pawl Asy, Cylinder Cover

...
...
1
BOLT 5x22 ECH-90016205022
...
2
CYLINDER ECH-A130000420
...
3
GASKET, CYLINDER Included In GASKET KIT ECH-V100000080
...
4
PISTON KIT INCLUDES ITEMS 5-9 ECH-P021001113
...
5
RING, PISTON ECH-A101000000
...
6
PIN, PISTON 8 ECH-10001311520
...
7
RING, SNAP ECH-10001504630
...
8
WASHER, THRUST ECH-10001408960
...
9
BEARING, NEEDLE 8 ECH-V553000010
...
10
CRANKSHAFT ASSY ECH-A011000210
...
11
CRANKCASE KIT Includes ITEMS 12-16 ECH-10020411521
...
12
SEAL, OIL 12 ECH-10021242031
...
13
PIN, LOCATING 4 ECH-V622000020
...
14
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
BOLT 5x28 ECH-90016205028
...
17
GASKET KIT, 21.2CC ETE MODELS ECH-P021004671
...
18
COIL, IGNITION ECH-A411000131
...
19
BOLT 4x20 ECH-90016204020
...
20
GROMMET ECH-15611004920
...
21
TUBE, INSULATOR ECH-V475002200
...
22
CAP, SPARK PLUG ECH-15901201620
...
23
TERMINAL, SPARK PLUG ECH-15901103432
...
24
SPARK PLUG - BPM8Y ECH-15901019830
...
25
LEAD - IGNITION ECH-V485001080
...
26
KEY, WOODRUFF ECH-61032502730
...
27
FLYWHEEL ECH-A409000150
...
28
WASHER, SPRING 8 ECH-90060500008
...
29
PAWL ASSY, STARTER INCLUDES ITEMS 30-31 ECH-17720212220
...
30
PAWL, STARTER ECH-17721842030
...
31
SPRING, RETURN ECH-17723412220
...
32
COVER, CYLINDER ECH-10150612821
...
33
SCREW 4x18 ECH-90023804018

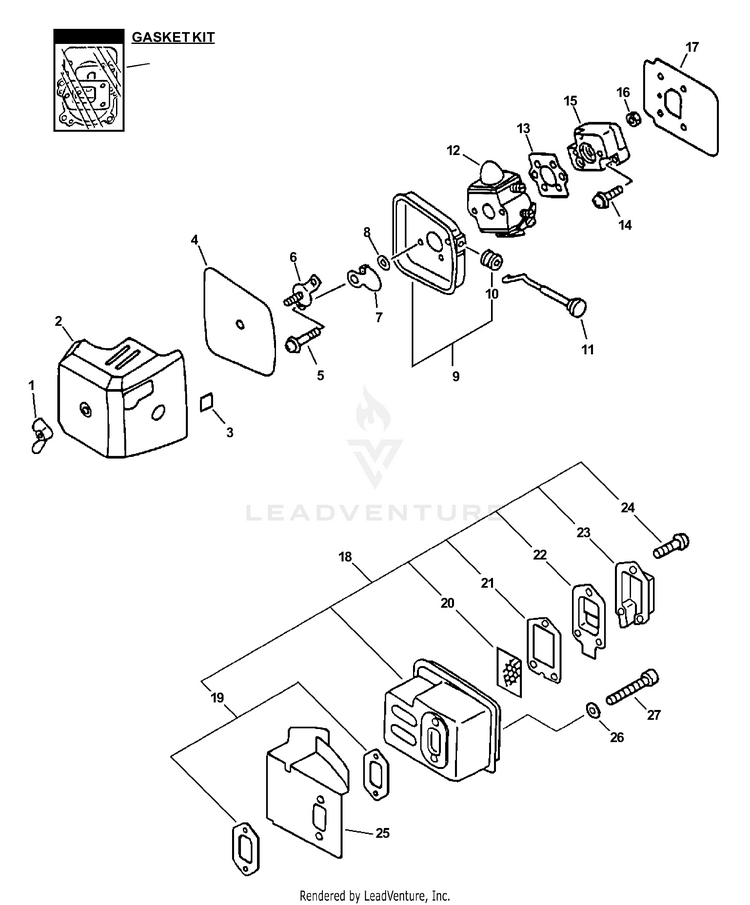

Intake, Exhaust

...
...
1
WINGNUT - 6 ECH-90052800005
...
2
COVER, AIR FILTER ECH-13032611522
...
3
LABEL - CHOKE ECH-X506000070
...
4
FILTER, AIR ECH-13031004560
...
5
SCREW 5x57 ECH-90024205057
...
6
PLATE, PREVENT ECH-13041005360
...
7
SHUTTER, CHOKE ECH-17851504560
...
8
WASHER 5.2x8x0.8T ECH-17851600830
...
9
CASE, AIR FILTER Includes ITEM 10 ECH-13030104560
...
10
GROMMET, CHOKE ECH-17881005230
...
11
ROD, CHOKE ECH-17851004560
...
12
CARBURETOR, SV-5H LW 2020 ECH-12520013129
...
13
GASKET, INTAKE ECH-13001642031
...
14
SCREW 5x20 ECH-90023805020
...
15
INSULATOR, INTAKE ECH-13001742031
...
16
NUT M5 ECH-90050000005
...
17
HEAT SHIELD, INTAKE Included In GASKET KIT ECH-V103001360
...
18
MUFFLER ASSY INCLUDES ITEM 19-24 ECH-14580011821
...
19
GASKET, EXHAUST Included In GASKET KIT ECH-V104000160
...
20
SCREEN, SPARK ARRESTER ECH-14586240630
...
21
GASKET, EXHAUST Included In GASKET KIT ECH-14586642031
...
22
GUIDE, EXHAUST ECH-14587642030
...
23
GUIDE, EXHAUST - INNER ECH-14586311520
...
24
SCREW 4x10 ECH-90024204010
...
25
COVER, MUFFLER Included In GASKET KIT ECH-14587105360
...
26
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
27
BOLT M5x50 ECH-90010505050
...
28
GASKET KIT, 21.2CC ETE MODELS ECH-P021004671

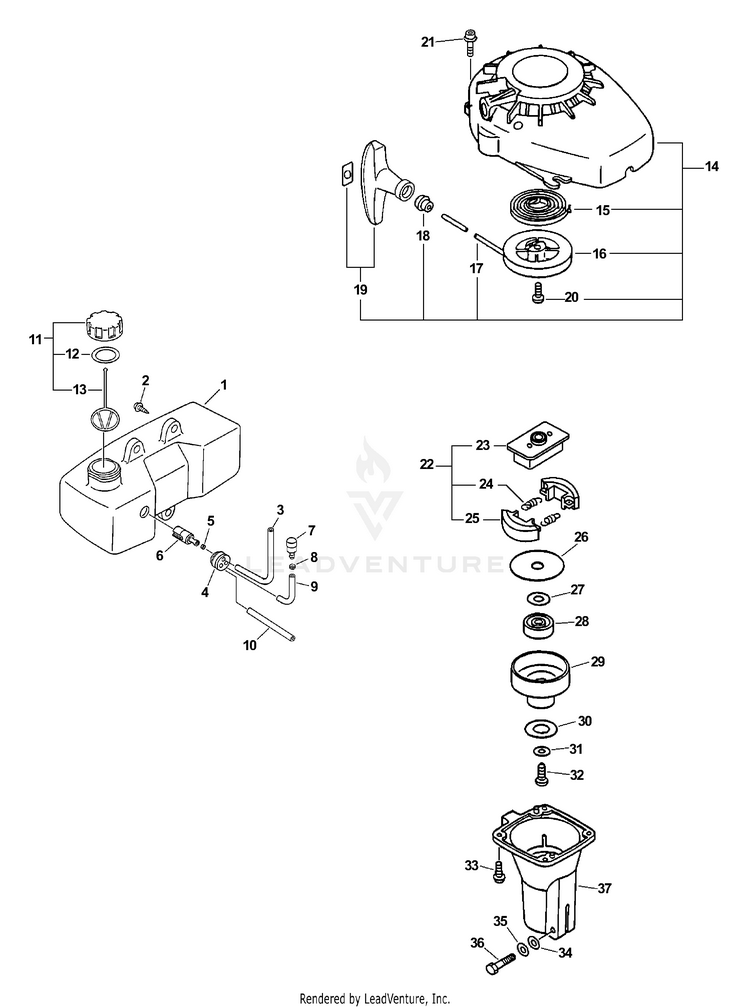

Starter, Clutch, Fuel System

...
...
1
TANK ASSY, FUEL ECH-A350000300
...
2
SCREW 5x15 ECH-90027505015
...
3
PIPE, FUEL 3x5x210 BLACK RePower BULK OPTION: 90014 ECH-V471001231
...
4
GROMMET, FUEL 5 ECH-13211546730
...
5
CLIP 6 MM ECH-13201309820
...
6
FILTER, FUEL ECH-A369000480
...
7
VENT ASSY ECH-A356000031
...
8
CLIP 5.5 ECH-13011100530
...
9
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
10
PIPE, FUEL 3x6x50 YELLOW RePower BULK OPTION: 90017 ECH-13201049030
...
11
FUEL CAP ASSY Includes ITEMS 12-13 ECH-P100006610
...
12
GASKET, FUEL CAP ECH-V107000190
...
13
CONNECTOR, CAP L= 100 MM ECH-13105156030
...
14
STARTER ASSY Includes ITEMS 15-20 ECH-A051000950
...
15
SPRING, RECOIL ECH-P022019680
...
16
REEL, ROPE ECH-17721544430
...
17
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH-P022006800
...
18
GUIDE, ROPE ECH-17722742030
...
19
GRIP, STARTER ECH-17722811120
...
20
SCREW ECH-17723644330
...
21
SCREW 4x16 ECH-90023804016
...
22
CLUTCH ASSY INCLUDES ITEMS 23-25 ECH-17500007531
...
23
HUB, CLUTCH ECH-17501605020
...
24
SPRING, CLUTCH ECH-17501805130
...
25
SHOE, CLUTCH ECH-17500905131
...
26
PLATE, CLUTCH ECH-17501904630
...
27
WASHER 10.5x18x1.6 ECH-90060000010
...
28
BEARING, BALL 6000-2RLB ECH-90080836000
...
29
DRUM, CLUTCH ECH-17501004635
...
30
SPACER ECH-17504404630
...
31
WASHER, CLUTCH ECH-17501411520
...
32
SCREW 6x12 ECH-90023806012
...
33
SCREW 4x14 ECH-90023804014
...
34
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
35
WASHER, SPRING 5 ECH-90060500005
...
36
BOLT 5 ECH-13041611520
...
37
CASE, CLUTCH MODEL SV-5C ECH-61022311520
...
37
CASE, CLUTCH MODEL SV-5H2 ECH-A570000050
...
xx
BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M) OPTIONAL ECH-90014
...
xx
BULK PIPE - 3x6 MM CLEAR (4 PIECESx2 M) CLEAR ECH-90017
...
xx
3 MM (1/8")x1000 MM (39-1/2"), BULK OPTIONAL ECH-99944444000
...
...
...
