Echo RB-100W S/N: N28900001001 - N28900999999 Spreader

Model: RB-100W S/N: N28900001001 - N28900999999

Save
 Part Not Listed?Part Not Listed?
product name

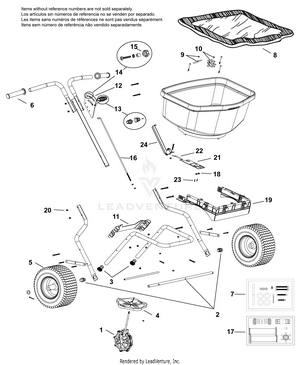

Replacement Parts

...
...
1
GEAR BOX ASSEMBLY ECH-YH602000080
...
2
DRIVESHAFT W/2 BUSHINGS ECH-91211
...
3
CAP, END ECH-CN014171
...
4
IMPELLER & SECURING SCREW ASSEMBLY ECH-YH485000000
...
5
TIRE & RIM ASSEMBLY 12? ECH-91215
...
6
AGITATOR - SALT ECH-E156000030
...
7
HARDWARE PACK, SS ECH-YH485000090
...
8
RAIN COVER ECH-91218
...
9
AUGER & LOCK NUT ASSEMBLY ECH-91219
...
10
AGITATOR - SALT ECH-E156000030
...
11
REAR BAFFLE ECH-91220
...
12
GATE CONTROL ASSEMBLY, SS Includes Items 13-15 ECH-YH470000750
...
13
KNOB, CONTROL ECH-CN6-8310
...
14
KNOB ASSY Includes Item 15 ECH-CN6-8311
...
15
KNOB ECH-CN012011
...
16
ROD, CONTROL LEVER, SS ECH-91229
...
17
AGITATOR - SALT ECH-E156000030
...
18
GATE KEEPER ECH-YH485000010
...
19
BAFFLE ASSY SS ECH-YH479001620
...
20
LOCK NUT M6 SS ECH-YH451000330
...
21
SLIDE GATE SS ECH-YH485000030
...
22
SLIDE LINK SS ECH-YH485000040
...
23
PLASTITE SCREW #4-20 #1 DRIVE SS ECH-YH416000000
...
24
LINKAGE ASSEMBLY SS ECH-YH485000060
...
...
...
