Echo PP-600 Type 1E Power Pruner

Model: PP-600 Type 1E

Save
 Part Not Listed?Part Not Listed?
product name

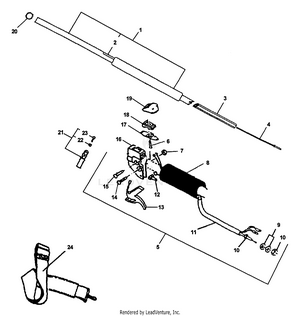

Driveshaft, Throttle, Harness

...
...
xx
PIPE, MAIN INCLUDES ITEMS 1 & 2, 5 - 19, 21 - 23 ECH-61020622060
...
1
PIPE, MAIN INCLUDES ITEMS 2 ECH-60520622660
...
2
LABEL - CAUTION - ELECTRICAL ECH-89016022661
...
3
LINER - FLEXIBLE ECH-61021722061
...
4
DRIVESHAFT - FLEXIBLE ECH-61001322060
...
5
THROTTLE CONTROL ASSY Includes ITEMS 6-19 ECH-17800322160
...
6
SCREW - PAN HEAD ECH-90005400300
...
7
NUT - 5 ECH-20013922060
...
8
GRIP, HANDLE ECH-35111122060
...
9
WASHER - 6 ECH-17802022060
...
10
NUT - 6 ECH-43723522060
...
11
CONTROL CABLE ASSY ECH-17810022160
...
12
GUIDE, CABLE ECH-17811222060
...
13
TRIGGER, THROTTLE ECH-17801022160
...
14
SCREW - 5 ECH-88995022060
...
15
SCREW - PAN HEAD ECH-90005500100
...
16
BRACKET, THROTTLE CONTROL ECH-17802422160
...
17
CONTACT, SWITCH ECH-16341322060
...
18
SWITCH, ON-OFF ECH-16340022060
...
19
KNOB, SWITCH ECH-16341022060
...
20
WASHER ECH-90003800100
...
21
CLAMP INCLUDES ITEMS 22 & 23 ECH-30061022061
...
22
NUT, LOCK 10-24 UNC ECH-90003150100
...
23
SCREW ECH-90005300200
...
24
STRAP ASSY, SHOULDER ECH-30100022060

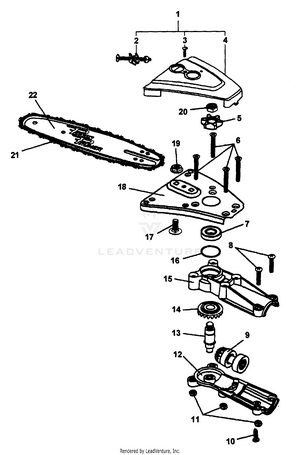

Gearcase, Bar & Chain

...
...
xx
CUTTING HEAD ASSY Includes ITEMS 1-22 ECH-61050922060
...
xx
CUTTING HD ASSY W/O BAR & CHAIN Includes ITEMS 1-20 ECH-61040022060
...
1
SPROCKET COVER ASSY INCLUDES ITEMS 2-4 ECH-43300122060
...
2
TENSIONER KIT ECH-43309522060
...
3
SCREW - 8-32x1" - TORX PAN HEAD ECH-90005300100
...
4
GUARD, SPROCKET ECH-43301022060
...
5
SPROCKET ECH-30281022060
...
6
SCREW - TORX FLAT HEAD ECH-90005700100
...
7
BEARING, BALL ECH-9404206001
...
8
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
9
SHAFT, GEAR ECH-61030922060
...
10
SCREW, TAPPING ECH-9511113050
...
11
NUT, LOCK 10-24 UNC ECH-90003150100
...
12
CASE, GEAR - RIGHT INCLS ITEM 6, 11, & 16, To Be Announced ECH-61099024160
...
13
SHAFT, GEAR ECH-61030922160
...
14
SHAFT KIT, GEAR ECH-P021011610
...
15
CASE, GEAR - RIGHT ECH-61046022760
...
16
SHIM 0.004" ECH-90003500400
...
17
BOLT, CARRIAGE ECH-90006000100
...
18
SAW BAR CARRIER ECH-43300422060
...
19
NUT - FLANGE ECH-90004000100
...
20
NUT, HEX ECH-90003000200
...
21
ECH-1917033
...
22
GUIDE BAR - 8" GAUGE: .050" .043" & .050" Gauge Chains & Guide Bars are NOT Interchangeable ECH-1080373301

90080 Oiler Gear Case Assembly - 22mm

...

No Parts Available for this Schematic

90084 Oiler Gear Case Assembly - 22mm

...

No Parts Available for this Schematic

...
...
...
