Echo LMC-212 Lawn Mower

Model: LMC-212

Save
 Part Not Listed?Part Not Listed?
product name

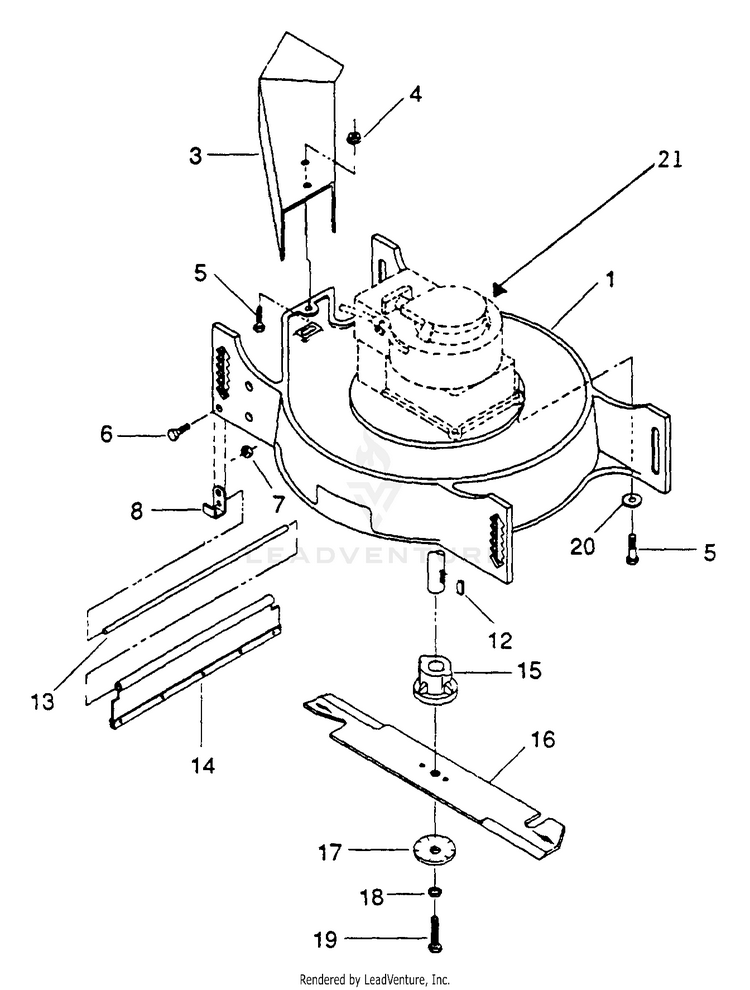

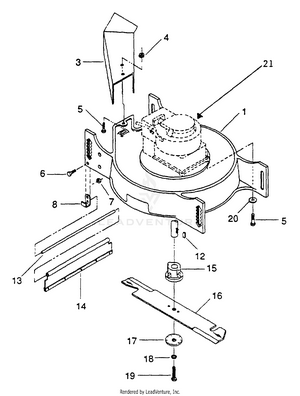

Deck, Blade, Discharge Chute

...
...
1
DECK ECH-710213201
...
3
GRASS CHUTE ECH-710213159
...
4
NUT 5/16 ECH-710809001
...
5
SCREW HEX 5/16x3/4 ECH-710800271
...
6
SCREW - 5/16x1-1/4" - HEX CAP ECH-710800274
...
7
NUT, 5/16 NYLOC ECH-710804256
...
8
SAFETY SHIELD CLIP ECH-710213011
...
12
KEY, WOODRUFF - 6 ECH-710807005
...
13
DRAG SHIELD ROD ECH-710213047
...
14
DRAG SHIELD ASSY ECH-710212019
...
15
25 MM BLADE DRIVER ECH-710212037
...
16
BLADE - 21" ECH-710213007
...
17
CUPPED WASHER ECH-710213119
...
18
LOCKWASHER - 3/8" ECH-710805006
...
19
SCREW 3/8"x3/4 ECH-710800082
...
20
5/16" DISC SPRING ECH-710303334
...
21
ENGINE - M14V-B1ZO ECH-1162

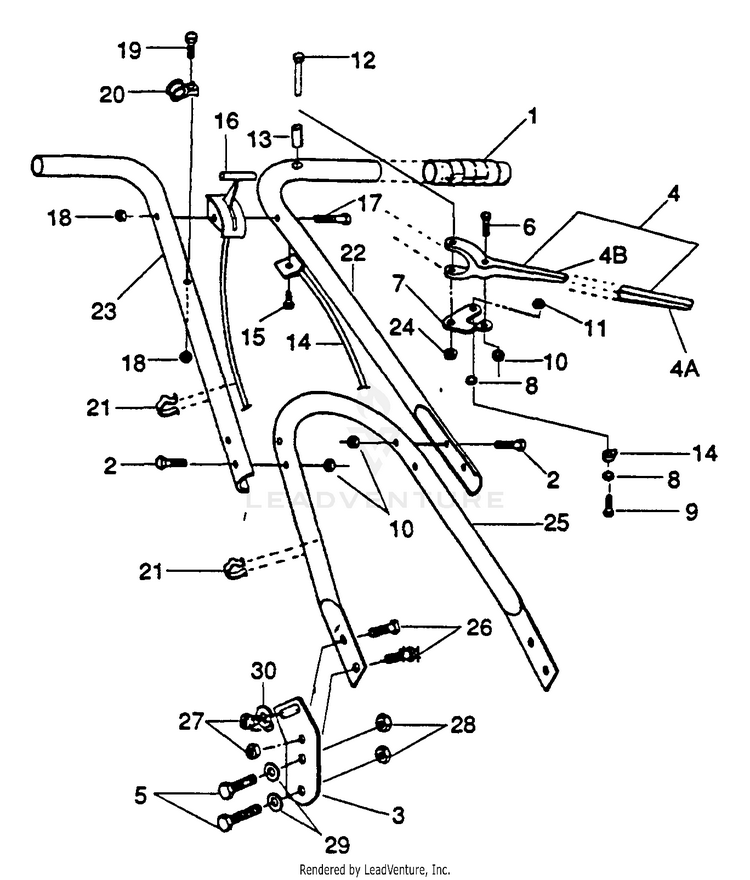

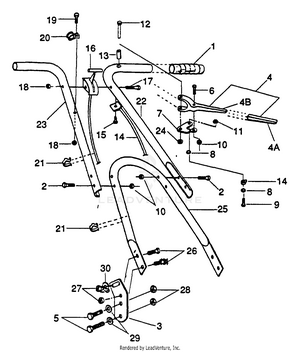

Handles, Throttle, Engine Brake Lever

...
...
1
GRIP, HANDLE ECH-710303097
...
2
SCREW - 5/16x1-1/2" - HEX CAP ECH-710800275
...
3
BRACKET, HANDLE ECH-710213018
...
4
DRIVE LEVER ECH-710212038
...
4A
GRIP ECH-710213204
...
4B
DRIVE LEVER ECH-710212038
...
5
SCREW - 5/16x1-1/4" - HEX CAP ECH-710800274
...
6
SCREW HEX 5/16x1 ECH-710800273
...
7
CONTROL LEVER PLATE ECH-710213012
...
8
SPACE WASHER ECH-710213025
...
9
BOLT - 5/16x1/2" ECH-710809010
...
10
NUT, 5/16 NYLOC ECH-710804256
...
11
NUT - 1/4" ECH-710803011
...
12
3/16x1-7/8" CLEVIS PIN ECH-710806259
...
13
5/16x1" ROLL PIN ECH-710806340
...
14
CABLE, CONTROL ECH-710213214
...
15
SCREW, CUTTING - 12 ECH-710802001
...
16
THROTTLE CONTROL ECH-710213207
...
17
SCREW HEX 1/4"x2-3/4 ECH-710800261
...
18
LOCKNUT - 1/4" ECH-710804255
...
19
SCREW - 1/4x2-1/4" - HEX CAP ECH-710800259
...
20
GUIDE, ROPE ECH-710213026
...
21
CONDUIT CLIPS ECH-710303088
...
22
HANDLE, LEFT ECH-710213015
...
23
HANDLE, RIGHT ECH-710213016
...
24
3/16" PUSH NUT ECH-710803001
...
25
LOWER HANDLE ECH-710213017
...
26
SCREW - 3/8x1" - HEX CAP ECH-710800292
...
27
LOCKNUT - 3/8" ECH-710804257
...
28
NUT 5/16 ECH-710809001
...
29
BRAKE ADJ. WASHER ECH-710303016
...
30
WASHER - 3/8" ECH-710805260

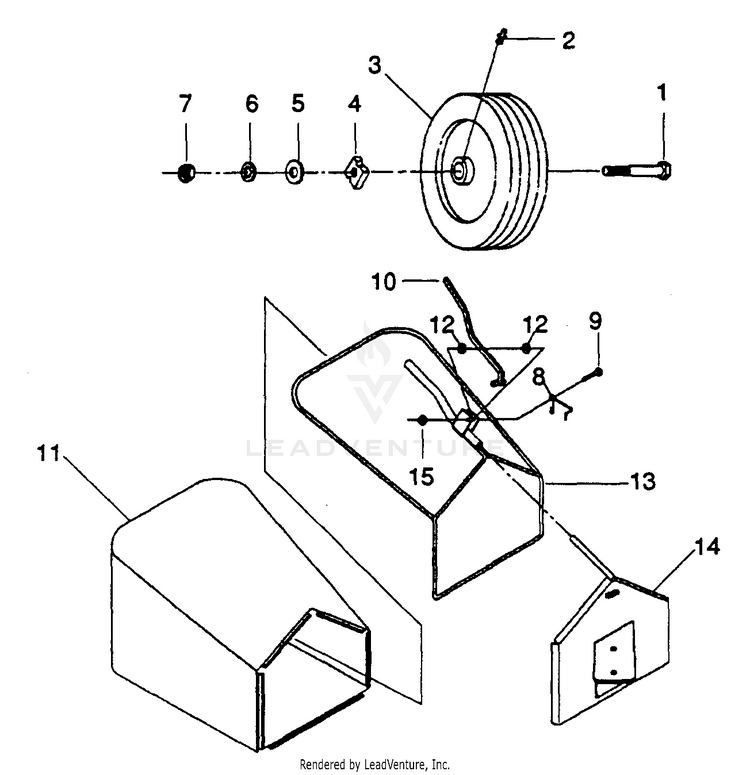

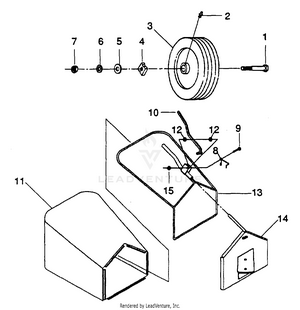

Wheels, Bagger Asy

...
...
xx
FRONT WHEEL ASS'Y 2 REQUIRED ECH-710212024
...
xx
REAR WHEEL ASS'Y 2 REQUIRED ECH-710212025
...
1
BOLT - 1/2-13x3-1/2" ECH-710800063
...
2
ZERK ECH-710811000
...
3
WHEEL, BEARING - FRONT - 8" ECH-710213131
...
3
WHEEL, BEARING - REAR - 10" ECH-710213132
...
4
AXLE WHEEL NUT ECH-710213009
...
5
WHEEL WASHER ECH-710805264
...
6
WASHER, LOCK ECH-710805504
...
7
NUT - 1/2-13 ECH-710804509
...
7
GRASS CATCHER KIT ECH-710211002
...
8
CATCHER LATCH SPRING ECH-710213108
...
9
BOLT 1/4-20x1-1/2" HEX HD. ECH-710800256
...
10
CATCHER LATCH ECH-710212020
...
11
CATCHER BAG ECH-710213205
...
12
HANDLE WASHER ECH-710353029
...
13
CATCHER FRAME ECH-710212034
...
14
PLATE, PREVENT ECH-710212032
...
15
NUT - 1/4" ECH-710803011
...
...
...
