Echo LM-214 Lawn Mower

Model: LM-214

Save
 Part Not Listed?Part Not Listed?
product name

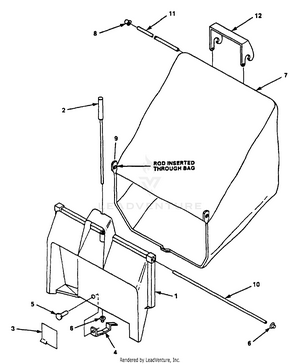

Bagger Asy

...
...
1
ADAPTER, BAG ECH-700991789
...
2
ROD, LATCH RELEASE ECH-700991788
...
3
DEFLECTOR ECH-700375660
...
4
LATCH ECH-700359259
...
5
RIVET ECH-700464845
...
6
NUT, PAL ECH-700445515
...
7
BAG, GRASS Includes ITEMS 6 & 8 ECH-700518759
...
8
END, ROD ECH-700359179
...
9
ROD, BAG SUPPORT ECH-700336651
...
10
ROD, BAG HINGE ECH-700359168
...
11
ROD, UPPER BAG ECH-700359169
...
12
HANDLE ECH-700991786

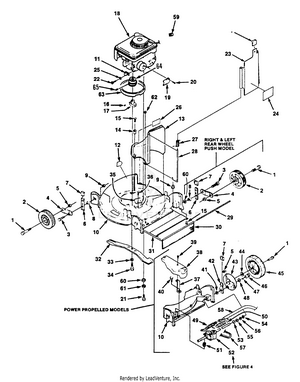

Deck, Wheels, Discharge Chute, Blade, Drive System

...
...
1
AXLE - ASSY ECH-700992138
...
2
WHEEL ASSY ECH-700993958
...
3
BOLT - 5/16x18 ECH-700359180
...
4
ARM - WHEEL ADJUSTING ECH-700991287
...
5
NUT - 3/8-24 ECH-700444850
...
6
INDEXING SPRING & PIN ASSY ECH-700990087
...
7
KNOB ECH-700336623
...
8
SPACER ECH-700358362
...
9
NUT - 5/16-18 - FLANGE ECH-700445775
...
10
DECK - 21" Includes ITEM 12 ECH-700994059
...
11
CLAMP ECH-700993026
...
12
LABEL - WARNING ECH-700339460
...
13
CHUTE, DISCHARGE ECH-700994064
...
14
EYELET ECH-700473183
...
15
SCREW - 1/4-20x3/4" - HEX CAP ECH-700408878
...
16
KEY 5/8x5/32 ECH-700463107
...
17
ADAPTER, BLADE ECH-700241708
...
------------------
ENGINE, 4 H.P. (4-CYCLE) Includes ITEMS 19, 20, 59 ECH---
...
------------------
DEFLECTOR, EXHAUST NOT USED ON THIS MODEL. ECH---
...
20
SCREW - 8-32x3/8" - HEX CAP ECH-700408880
...
21
SCREW 3/8"-16x1-1/2" ECH-700408876
...
22
SCREW - 1/4-20x1/2" ECH-700400104
...
23
DOOR, CHUTE ECH-700994092
...
24
LABEL - DOOR Includes ITEM 24 ECH-700991217
...
25
LOCKWASHER - 1/4" ECH-700446128
...
26
LABEL - GASAHOL ECH-700993367
...
27
SPRING ECH-700992947
...
29
ROD, DRAG FLAP ECH-700359170
...
30
FLAP, DRAG ECH-700359257
...
31
COVER - REAR ECH-700991284
...
32
BAR, CUTTER - 21" ECH-700390162
...
33
WASHER, LOCK 7/16 ECH-700446148
...
34
BOLT, SHOULDER ECH-700991212
...
35
COVER, BELT ECH-700991286
...
36
SCREW - 1/4-20x1/2" - HEX CAP ECH-700409907
...
37
SUPPORT NOT USED ON THIS MODEL. ECH---
...
38
COVER, DRIVE NOT USED ON THIS MODEL. ECH---
...
------------------
SCREW - 1/4-20×3/4" NOT USED ON THIS MODEL. ECH---
...
------------------
SCREW - 10-16×1/2" NOT USED ON THIS MODEL. ECH---
...
------------------
SPACER, HGT. ADJ. NOT USED ON THIS MODEL. ECH---
...
------------------
LEVER, SPRING NOT USED ON THIS MODEL. ECH---
...
------------------
DRIVE WHEEL SUPPORT ASSY NOT USED ON THIS MODEL. INCLUDES BUSHING ECH---
...
44
WASHER NOT USED ON THIS MODEL. ECH---
...
------------------
DRIVE WHEEL NOT USED ON THIS MODEL. ECH---
...
------------------
PINION, L.H. NOT USED ON THIS MODEL. ECH---
...
------------------
PAWL, PINION NOT USED ON THIS MODEL. ECH---
...
48
WASHER NOT USED ON THIS MODEL. ECH---
...
------------------
SPRING NOT USED ON THIS MODEL. ECH---
...
50
COVER, SPRING NOT USED ON THIS MODEL. ECH---
...
51
SPRING NOT USED ON THIS MODEL. ECH---
...
------------------
GEAR ASSY NOT USED ON THIS MODEL. Order Components ECH---
...
53
RING NOT USED ON THIS MODEL. ECH---
...
54
WASHER NOT USED ON THIS MODEL. ECH---
...
55
WASHER NOT USED ON THIS MODEL. ECH---
...
56
SHIM NOT USED ON THIS MODEL. ECH---
...
57
BELT, DRIVE NOT USED ON THIS MODEL. ECH---
...
58
CABLE, TRACTION NOT USED ON THIS MODEL. ECH---
...
59
ROPE STOP ECH-700990567
...
60
WASHER - 5/16" ECH-700453009
...
61
LOCKWASHER - 5/16" NOT USED ON THIS MODEL. ECH---
...
62
WASHER - 1/4" NOT USED ON THIS MODEL. ECH---
...
63
RING, ENGINE NOT USED ON THIS MODEL. ECH---
...
------------------
PULLEY, 2-SPEED NOT USED ON THIS MODEL ECH---
...
------------------
SCREW, SET NOT USED ON THIS MODEL. ECH---

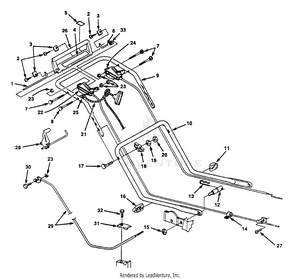

Handles, Throttle, Drive Lever, Engine Brake Lever, Cables

...
...
1
SHAFT, PIVOT (LONG) ECH-700995550
...
2
SCREW - 1/4-10x5/8" - ROUND HEAD ECH-700408881
...
3
CLAMP, PIVOT SHAFT ECH-700992570
...
4
LABEL - BRAKE BAIL ECH-700993974
...
5
LABEL - BLADE ROTATION ECH-700994090
...
6
SHAFT, PIVOT (SHORT) ECH-700992560
...
7
BOLT, SQ. NECK 1/4-20x2 ECH-700992920
...
8
BOLT, SQ. NECK 1/4-20x2 1/4 ECH-700992930
...
9
HANDLE - UPPER ECH-700992350
...
10
HANDLE, LOWER ECH-700992360
...
11
CLAMP - CABLE SINGLE ECH-700995420
...
12
STUD ECH-700359178
...
13
PIN, COTTER ECH-700460306
...
14
CLAMP ECH-700994310
...
15
NUT - 5/16-18 - FLANGE ECH-700445775
...
16
CLAMP - DOUBLE ECH-700995410
...
17
BOLT ECH-700359102
...
18
KNOB - HANDLE ECH-700339550
...
19
NUT - 5/16-18 ECH-700443106
...
20
LOCKNUT - 5/16-18 ECH-700444718
...
21
ROPE, RESTRAINT ECH-700995390
...
22
CONTROL, MANUAL START ECH-700992467
...
23
LOCKNUT - 1/4-20 ECH-700444708
...
24
CONTROL, THROTTLE ECH-700993031
...
25
WASHER - CARVED ECH-700344544
...
26
BAIL - BRAKE CONTROL ECH-700993190
...
27
SCREW - 10-32x3/8" - HEX CAP ECH-700403586
...
28
TRACTION LEVER NOT USED ON THIS MODEL. ECH---
...
29
CABLE, TRACTION NOT USED ON THIS MODEL. ECH---
...
------------------
SCREW - 1/4-20×1-1/2" NOT USED ON THIS MODEL. ECH---
...
31
CLAMP NOT USED ON THIS MODEL. ECH---
...
------------------
SCREW - 1/4-20×5/8" NOT USED ON THIS MODEL. ECH---
...
33
SPRING NOT USED ON THIS MODEL. ECH---
...
...
...
