Echo EHC-3000 Hedge Trimmer- Electric

Model: EHC-3000

Save
 Part Not Listed?Part Not Listed?
product name

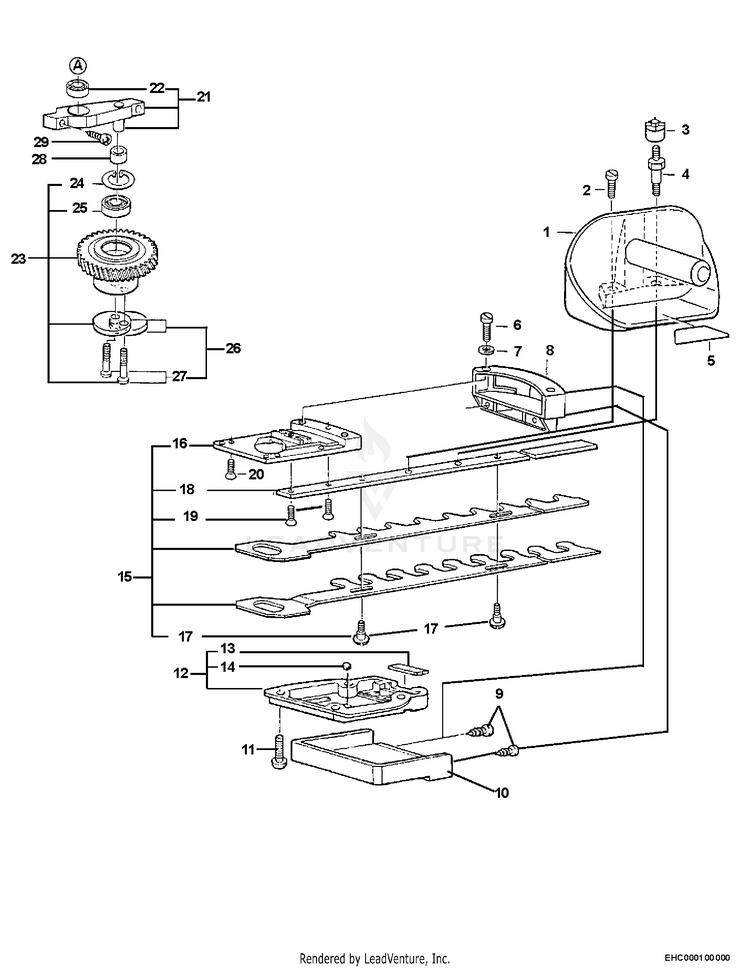

Gears/Blades/Handle

...
...
1
HANDLE ASSY ECH-35120020061
...
2
SCREW ECH-72603413009
...
3
NUT ECH-72603421006
...
4
DBL. END BOLT ECH-72603052001
...
5
LABEL - CAUTION ECH-72601118755
...
6
SCREW ECH-72603410044
...
7
WASHER, SPRING ECH-72916061007
...
8
BRACKET ECH-72605510152
...
9
SCREW 4x16 ECH-72603435036
...
10
COVER ECH-72607001152
...
11
SCREW ECH-72603410018
...
12
LID, GEAR CASE Includes ITEMS 13-14 ECH-72605500904
...
13
PACKING, FELT ECH-72601005002
...
14
BALL - 4 ECH-71903230007
...
15
BLADE ASSY, 770 MM Includes ITEMS 16-19 ECH-72607001237
...
16
FLANGE ECH-72605700078
...
17
SCREW ECH-72603413023
...
------------------
BAR, FRAME 770MM ECH---
...
19
SCREW ECH-72910771152
...
20
SCREW ECH-72910871122
...
21
FLANGE ASSY, BEARING Includes ITEM 22 ECH-72605807910
...
22
BEARING, BALL ECH-72600905039
...
23
GEAR ASSY INCLUDES ITEMS 24-27 ECH-72606320900
...
24
RING, RETAINING ECH-72916660012
...
25
BEARING, BALL ECH-72600905028
...
26
PLATE ASSY Includes ITEM 27 ECH-72600030900
...
27
PLATE ASSY ECH-72600030900
...
28
SPACER ECH-72600200023
...
29
SCREW ECH-72910611022

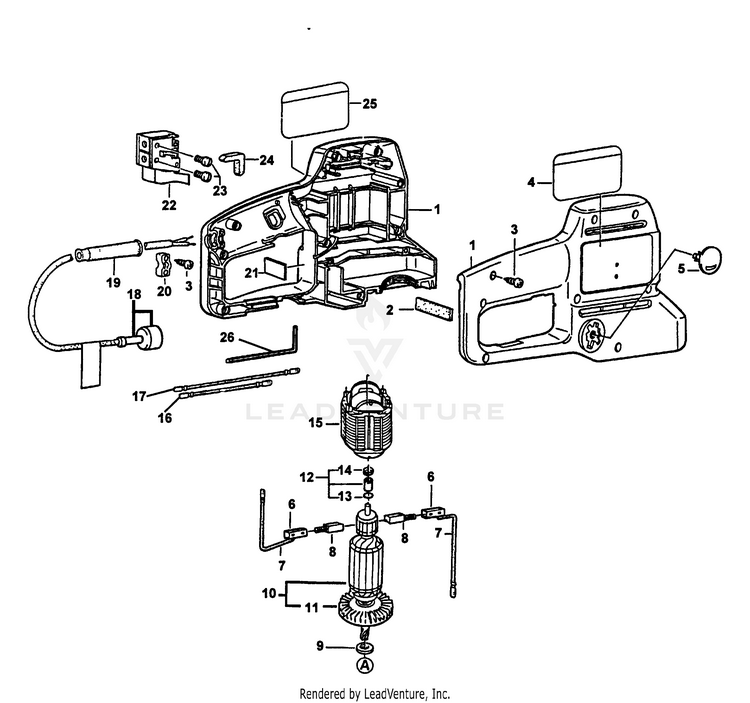

Motor Housing, Electric Motor, Switch/Cord

...
...
1
HOUSING, MOTOR ECH-72605104490
...
2
PACKING, FELT ECH-72601005008
...
3
SCREW 4x16 ECH-72603435036
...
4
LABEL - ECHO ECH-72601118751
...
5
KNOB ECH-72605500133
...
6
HOLDER, BRUSH ECH-72604330016
...
7
CABLE 80 MM ECH-72604448030
...
8
BRUSH SET ECH-72604321904
...
9
SPACER ECH-72600209003
...
10
ARMATURE - 115V Includes ITEM 11 ECH-72604010603
...
11
FAN ECH-72606610027
...
12
BUSHING ASSY ECH-72600301024
...
13
PACKING, FELT Includes ITEMS 13-14 ECH-71600205023
...
14
O-RING ECH-71610210014
...
15
FIELD 115V ECH-72604220432
...
16
CABLE 100 MM ECH-72604448045
...
17
CABLE 200 MM ECH-72604448112
...
18
CORD (115V) ECH-72604460191
...
19
RELIEF, STRAIN ECH-72600703008
...
20
CLAMP, CORD ECH-72601035001
...
21
LABEL - WARNING ECH-71601110449
...
22
SWITCH, ON-OFF ECH-72607200134
...
23
SCREW ECH-72603410001
...
24
STRIP, SEAL ECH-72601022000
...
25
LABEL - EHC-3000 ECH-72601118798
...
26
WRENCH, ALLEN ECH-71907950006
...
...
...
