Echo EG-7601E Electric Generator

Model: EG-7601E

Save
 Part Not Listed?Part Not Listed?
product name

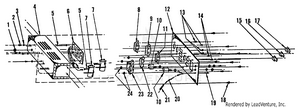

Electrical Panel

...
...
1
GROMMET ECH-240020090
...
2
6-32x1/4 RHS ECH-240017060
...
3
WASHER, LOCK ECH-240015011
...
4
BOX, CONTROL ECH-240028070
...
5
TIE, CABLE ECH-240020070
...
6
CIRCUIT, ECHO-MIZER ECH-248034010
...
7
CAPACITOR - 50UF 370V ECH-240420000
...
8
LOCK, TWIST - 30A/125V/250V ECH-240008302
...
9
LOCK, TWIST - 30A/250V ECH-240008301
...
10
BREAKER, CIRCUIT - 30A/250V ECH-240013300
...
11
LOCK, TWIST - 30A/125V ECH-240007301
...
12
PANEL SILKSCREEN ECH-246026010
...
13
6-32x3/8 RHS ECH-240017015
...
14
8-32x3/8 RHS ECH-240017005
...
15
SWITCH, ECHO-MISER ECH-240027032
...
16
SWITCH, FULL POWER ECH-240027202
...
17
SWITCH, IGNITION ECH-240027063
...
18
SCREW - 10-24 ECH-240017001
...
19
INDICATOR, LOW OIL ECH-240020111
...
20
RESISTOR ASSY ECH-248187030
...
21
SLEEVING, INSULATOR ECH-240038005
...
22
DUPLEX, 15A/125V ECH-240007150
...
23
GFCI - 15A/125V ECH-240007401
...
24
NUT - 8-32 - KEPS ECH-240016003

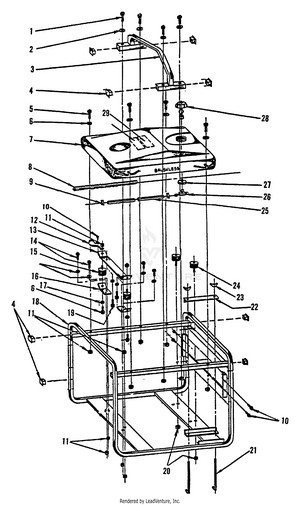

Fuel System, Frame

...
...
1
5/16-18x2.5 HHS ECH-240017062
...
2
LOCKWASHER - 5/16" ECH-240015002
...
3
HANDLE, LIFT ECH-240040002
...
4
PLUG, END ECH-240020014
...
5
BOLT - 5/16-18x1-1/2" ECH-240017003
...
6
WASHER, LOCK 5x16 ECH-240015004
...
7
TANK, FUEL - 6 GALLON ECH-240022003
...
8
CONDUIT PIPE ECH-240029000
...
9
CLAMP ECH-240024001
...
10
SCREW - 10-24 ECH-240017001
...
11
LOCKNUT - 5/16-18 ECH-240016001
...
12
STRAP, GROUND ECH-240011008
...
13
RAIL, FOCUS ECH-240041005
...
14
5/16-18x7/8 HHS ECH-240017063
...
15
ISOLATOR, VIBRATION ECH-240009001
...
16
BRACKET, FOCUS ECH-240041001
...
17
5/16-18x5/8 HHS ECH-240017019
...
18
FRAME ECH-240001230
...
19
5/16-18x3/4 HHS ECH-240017011
...
20
LOCKNUT - 3/8-16 ECH-240016010
...
21
BOLT, BATTERY HOLD DOWN ECH-240020002
...
22
BRACKET, BATTERY ECH-240020001
...
23
WINGNUT - 1/4" ECH-240020020
...
24
ISOLATOR, VIBRATION ECH-240009040
...
25
LINE, FUEL - 24" ECH-240300250
...
26
VALVE, FUEL TANK ECH-244020001
...
27
GROMMET REPLACE FUEL TANK ECH---
...
28
CAP ASSY REPLACE FUEL TANK ECH---
...
29
LABEL - SAFETY ECH-240021340

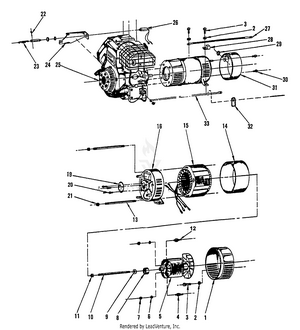

Generator, Idle Ctrl

...
...
1
DRIVE END ADAPTER CASTING ECH-240411008
...
2
WASHER, LOCK 3x8 ECH-240015006
...
3
SCREW - 3/8-16x1.00" - HEX HEAD CAP ECH-240017030
...
4
DIODE ECH---
...
5
ROTOR ASSY ECH-240440105
...
------------------
LOCKWASHER ECH---
...
------------------
NUT ECH---
...
8
BEARING ECH---
...
9
LOCKWASHER - 5/16" ECH-240015002
...
10
ROTOR THRU BOLT ECH-240411045
...
11
NUT - 5/16-24 - KEPS ECH-240461100
...
12
DIODE ECH---
...
13
BOLT, STATOR ECH-240411046
...
14
BAND, COVER ECH-240410028
...
15
STATOR ASSY ECH-240440205
...
16
CASTING, BEARING ECH-240411001
...
19
COVER, BEARING ECH-240410005
...
20
SCREW #10x24x1x2 ECH-240410001
...
21
NUT - 1/4-20 - KEPS ECH-240016005
...
22
PIN - COTTER ECH-240017064
...
23
SPRING, ECHO-MIZER ECH-240034119
...
24
BRACKET, SOLENOID ECH-240034117
...
------------------
ENGINE - KOHLER 14HP ECH---
...
26
SOLENOID ASSY ECH-248034103
...
27
CABLE, BATTERY - ( - ) ECH-240020080
...
28
LUG, GROUND - 1/0-14 CU/AL ECH-240010001
...
29
GROMMET ECH-240020094
...
30
SCREW - 10-24 - SLOT HEAD ECH-240410022
...
31
COVER, END ECH-240410006
...
32
LABEL - POS. BATTERY (+) ECH-240021018
...
33
CABLE, BATTERY - ( + ) ECH-240020117
...
...
...
