product name

Echo EG-1800 Electric Generator

Model: EG-1800

Save
 Part Not Listed?Part Not Listed?
product name

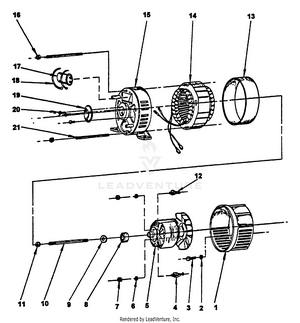

Frame

...
...
1
DRIVE END ADAPTER CASTING ECH-240411008
...
2
WASHER, LOCK 5x16 ECH-240015004
...
3
SCREW - 5/16-24x1.00" - HEX HEAD CAP ECH-240410025
...
4
DIODE ECH---
...
5
ROTOR ASSY ECH-240440104
...
------------------
LOCKWASHER ECH---
...
------------------
NUT ECH---
...
8
BEARING ECH---
...
9
LOCKWASHER - 5/16" ECH-240015002
...
10
ROTOR THRU BOLT ECH-240411036
...
11
NUT - 5/16-24 - KEPS ECH-240461100
...
12
DIODE ECH---
...
13
BAND, COVER ECH-240410021
...
14
STATOR ASSY ECH-240440204
...
15
CASTING, BEARING ECH-240411001
...
16
NUT - 1/4-20 - KEPS ECH-240016005
...
17
CAPACITOR - 50UF 370V ECH-240420000
...
18
TIE, CABLE ECH-240020070
...
19
COVER, BEARING ECH-240410005
...
20
SCREW #10x24x1x2 ECH-240410001
...
21
BOLT, STATOR ECH-240411037

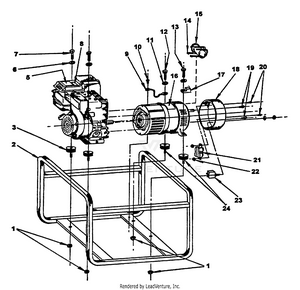

Generator

...
...
1
LOCKNUT - 5/16-18 ECH-240016001
...
2
FRAME ECH-240001210
...
3
ISOLATOR, VIBRATION ECH-240009020
...
5
LABEL - SAFETY ECH-240021340
...
6
WASHER, LOCK 5x16 ECH-240015004
...
7
BOLT - 5/16-18x1-1/2" ECH-240017003
...
8
UNKNOWN ECH---
...
9
LEAD - GROUND ECH-240011001
...
10
SCREW - 10-24 ECH-240017001
...
11
WASHER, LOCK 5x16 ECH-240015004
...
12
5/16-18x5/8 HHS ECH-240017019
...
13
5/16-18x7/8 HHS ECH-240017063
...
14
TIE, CABLE ECH-240020070
...
15
CAPACITOR - 50UF 370V ECH-240420000
...
16
LABEL - MODEL EG-1800 ECH-240021250
...
17
LUG, GROUND - 1/0-14 CU/AL ECH-240010001
...
18
PANEL, END ECH-240410015
...
19
SCREW - 10-24 - SLOT HEAD ECH-240410022
...
20
8-32x3/8 RHS ECH-240017005
...
21
DUPLEX, 15A/125V ECH-240007150
...
22
NUT - 8-32 - KEPS ECH-240016003
...
23
BREAKER, CIRCUIT - 15A/250V ECH-240013150
...
24
ISOLATOR, VIBRATION ECH-240009001
...
...
...
