Echo EG-1200 (Brushless) Electric Generator

Model: EG-1200 (Brushless)

Save
 Part Not Listed?Part Not Listed?
product name

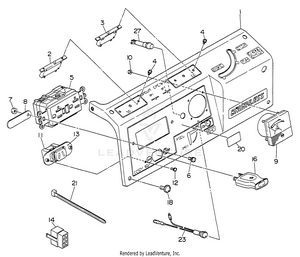

Electrical Panel

...
...
1
CONTROL PANEL ASSY For 60Hz - 120V ECH-103504180301
...
2
CIRCUIT BREAKER For 8A ECH-103514562408
...
3
CIRCUIT BREAKER - 10A DC For 10A ECH-103524562008
...
4
SCREW ECH-100043503060
...
5
AC RECEPTACLE - 125V-20A, GFCI ECH-103904575008
...
6
SCREW ECH-100043504100
...
7
NUT ECH-100021704000
...
8
CLAMP ECH-103502105308
...
9
AC VOLT METER ECH-103914780001
...
10
NUT ECH-100021703000
...
11
DC RECEPTACLE - 250V-10A ECH-103504060208
...
12
SCREW ECH-100043503080
...
13
DC RECEPTACLE BASE ECH-103504060308
...
14
CONNECTOR (6P) ECH-103535430008
...
16
DC PLUG ECH-103589500303
...
18
SCREW ECH-100131050020
...
20
LABEL - HZ-V ECH-103509510803
...
21
WIRE BAND ECH-100563000020
...
23
LED LAMP ASS'Y For oil sensor ECH-102277700200
...
27
LAMP, NEON For pilot lamp ECH-103207517308

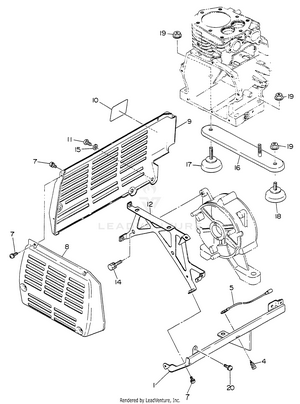

External Covers

...
...
1
FRONT COVER ASSY ECH-103505010501
...
4
BOLT, TERMINAL - BLACK ECH-103634570008
...
5
LEAD - GROUND ECH-103505400101
...
7
SCREW ECH-100131050020
...
8
SIDE COVER ECH-103505170301
...
9
REAR COVER, COMPL. ECH-103505062201
...
10
LABEL - SPEC For 60Hz - 120V ECH-103509220203
...
11
SCREW - PAN HEAD ECH-100043108100
...
12
MOUNT ASSY ECH-103503510111
...
14
BOLT ECH-100011308200
...
15
WASHER ECH-100031108000
...
16
MOUNT ASSY ECH-103503070121
...
17
MOUNT ASSY ECH-103503010301
...
18
MOUNT ASSY ECH-103503010401
...
19
NUT, FLANGE ECH-100023808000
...
20
SCREW ECH-100043405100

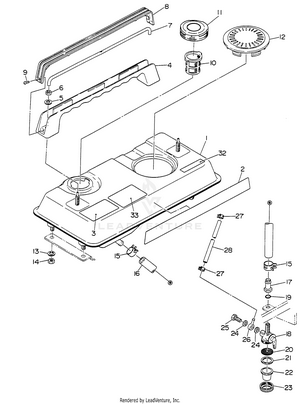

Fuel System, Handle

...
...
1
TANK ASSY, FUEL ECH-103506010371
...
2
LABEL - TRADE MARK ECH-103509171603
...
3
LABEL - GENERATOR ECH---
...
4
HANDLE ECH-103506520101
...
5
LOCKWASHER ECH-100032008000
...
6
NUT ECH-100021808000
...
7
PIPE, BREATHER ECH-103506550103
...
8
HANDLE COVER ECH-103506540113
...
9
SCREW - PAN HEAD ECH-100043103100
...
10
FILTER, FUEL ECH-100641360020
...
11
CAP ASSY ECH-100430430041
...
12
PLUG COVER ECH-102276600103
...
13
LOCKWASHER ECH-100032008000
...
14
NUT ECH-100021808000
...
15
CLAMP, HOSE ECH-100561170010
...
16
RUBBER PIPE (11.5x17.5x230 MM) ECH-100851110000
...
17
CLAMP, HOSE ECH-100533090020
...
18
FILTER, FUEL Includes items 19 thru 28 ECH-100642004902
...
19
O-RING ECH-100642000330
...
20
FILTER ECH-100642000220
...
21
PACKING ECH-100642000230
...
22
CUP ECH-100642001910
...
23
NUT, LOCK ECH-100642002410
...
24
FIBER PACKING ECH-100642000250
...
25
BOLT, BANJO ECH-100642000240
...
26
BOLT, BANJO ECH-100521070042
...
27
CLAMP, HOSE ECH-100561110020
...
28
RUBBER PIPE (6x12x160 MM) ECH-100851060000
...
32
LABEL - SPARK ARRESTER ECH-103589530403
...
33
LABEL - DANGER ECH-103909900103

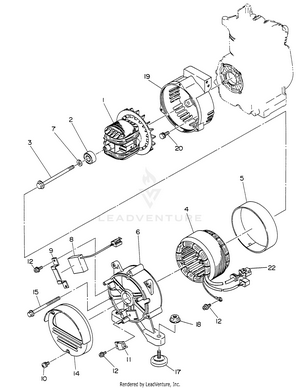

Generator

...
...
1
ROTOR ASSY Includes ITEM 2 ECH-103502320101
...
2
BEARING, BALL ECH-103582101508
...
3
THROUGH BOLT ECH-103772510003
...
4
STATOR ASSY For 60Hz - 120V ECH-103502280801
...
5
STATOR COVER ECH-103772400013
...
6
BRACKET, REAR ECH-103502130008
...
7
WASHER ECH-100031108000
...
8
CONDENSER ECH-103502132008
...
9
CONDENSER BRACKET ECH-103762210003
...
10
SCREW 4x8 ECH-90024204008
...
11
RECTIFIER ECH-103582100608
...
12
SCREW ECH-103832105108
...
14
END COVER COMPL. ECH-103502350101
...
15
COVER, BOLT ECH-103772520003
...
17
MOUNT ASSY ECH-103503010301
...
18
NUT, FLANGE ECH-100023808000
...
19
FRONT COVER ECH-103762300003
...
20
BOLT ECH-100011308200
...
22
CONNECTOR ECH-103582102008
...
...
...
