Echo CBL-58V 58 Volt Backpack Blower Mfg No. 107946001 3-1-18 (Rev:05) Backpack Blower

Model: CBL-58V Back Blower 107946001 3-1-18 Rev5

Save
 Part Not Listed?Part Not Listed?
product name

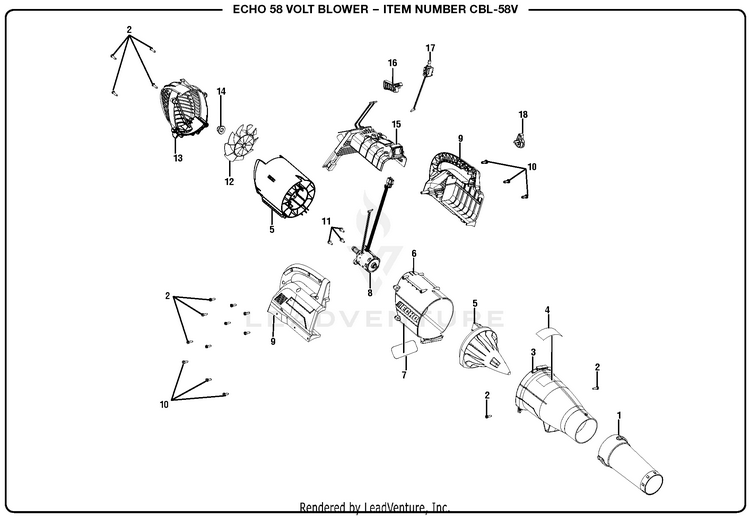

General Assembly

...
...
1
Nozzle and Scraper Assembly ECH-203484001
...
2
Screw (M5, T25 Torx) ECH-662051002
...
3
Outlet Housing (Inc. Key No. 4) ECH-203483001
...
4
Warning Icon Label ECH-940657151
...
5
Tailcone and Guide Vein Assembly ECH-380003001
...
6
Motor Housing Assembly (Inc. Key No. 7) ECH-203482001
...
7
Data Label ECH-941588072
...
8
Motor Assembly ECH-742172001
...
9
Housing Assembly ECH-380001001
...
10
Screw (M5 x 15 mm, T25 Torx) ECH-662065001
...
11
Screw (M5 x 8 mm, T25 Torx) ECH-662052002
...
12
Fan w/Insert ECH-528326001
...
13
Guard Inlet ECH-528322001
...
14
Lock Nut (M8 x 1.25) ECH-678128002
...
15
Circuit Board & Battery Carriage Assembly ECH-203486001
...
16
Trigger Button ECH-528320001
...
17
Variable Speed Switch ECH-760952004
...
18
Speed Adjustment Knob Assembly ECH-203485001
...
xx
58V Battery Pack (CBP-58V20, Not Included) Not Shown ECH-000998945DG9
...
xx
58V Battery Pack (CBP-58V40, Not Included) Not Shown ECH-000998946DG9
...
xx
58V Charger (CBC-58V, Not Included) Not Shown ECH-140330001
...
xx
Operator's Manual (Echo #99922205261) Not Shown ECH-991000278

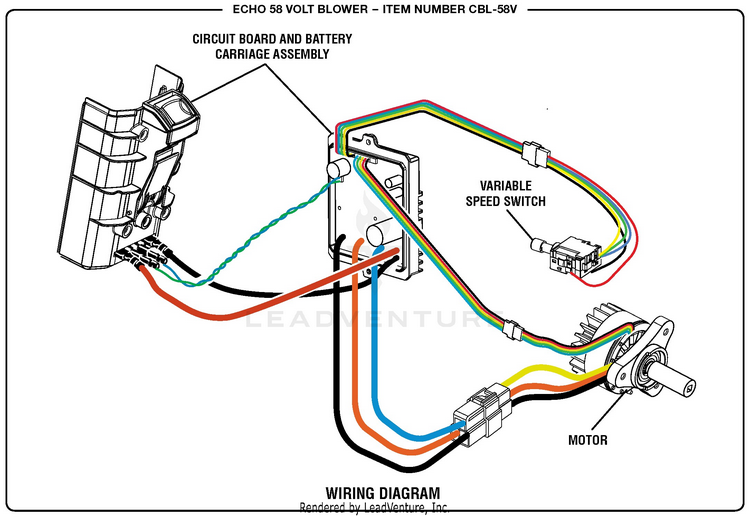

Wiring Diagram

...
...
xx
No Part List Information Available ECH---
...
...
...
