product name

Echo 99944200689 U-Handle Kit

Model: 99944200689 U-Handle Kit

Save
 Part Not Listed?Part Not Listed?
product name

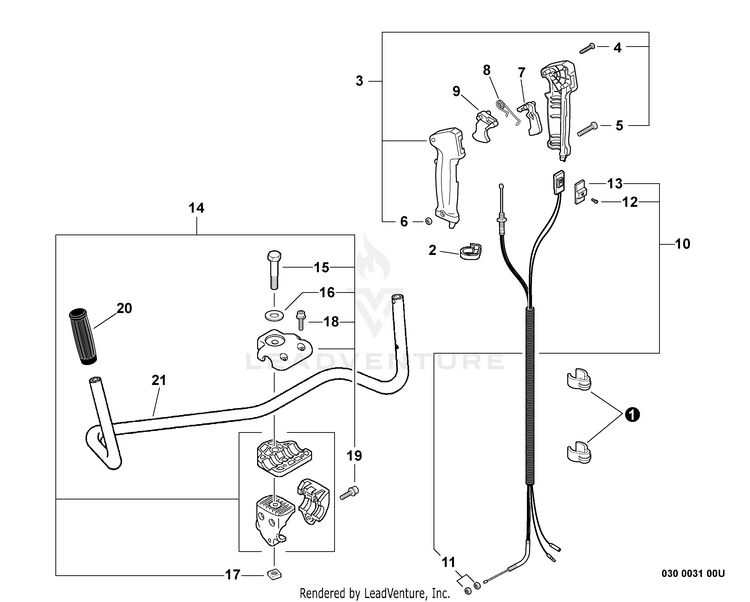

Handles, Throttle Control

...
...
1
CLIP, CABLE 25 MM ECH-22492452130
...
2
CLIP, CABLE ECH-15911209961
...
3
CONTROL HANDLE KIT Includes ITEMS 4-6 ECH-35110247530
...
4
SCREW 3x25 ECH-90024603025
...
5
SCREW 5x30 ECH-90022005030
...
6
NUT M5 ECH-90050000005
...
7
LOCKOUT, THROTTLE ECH-17801205960
...
8
SPRING, TORSION ECH-17801335631
...
9
TRIGGER, THROTTLE ECH-17801005960
...
10
CONTROL CABLE ASSY Includes ITEMS 11-13 ECH-P021047840
...
11
NUT M6 ECH-90050200006
...
12
SCREW 3x10 ECH-9154503010
...
13
KNOB, SWITCH - ORANGE ECH-A444000020
...
14
BRACKET KIT, HANDLEBAR Includes ITEMS 15-19 ECH-P021012791
...
15
BOLT 8x55 ECH-35142152130
...
16
WASHER 8 ECH-60501454230
...
17
NUT 8x1.25 ECH-90056550008
...
18
BOLT 5x20 ECH-90016205020
...
19
BOLT 5x30 ECH-90016205030
...
20
GRIP, HANDLE ECH-35131102330
...
21
HANDLEBAR ECH-C400000000

Shoulder Harness

...
...
1
HARNESS, SHOULDER ECH-C062000690
...
2
HARNESS, SHOULDER CANADA MODELS ECH-C062000690
...
3
PAD, HIP ECH-C652000000
...
4
HANGER SET, HARNESS INCLUDES ITEMS 5-7 ECH-C646000060
...
5
RING, HARNESS ECH-30101505330
...
6
HANGER SET, HARNESS ECH-C646000060
...
7
BOLT 5x12 ECH-90010005012
...
...
...
