Echo 99944200590 Articulating Hedge Trimmer Attachment

Model: 99944200590 Articulating Hedge Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

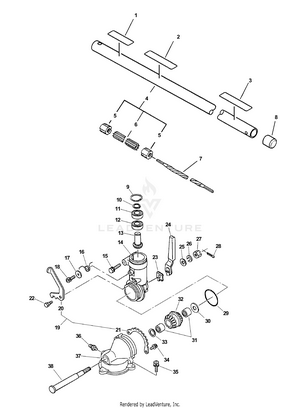

Driveshaft Housing Asy, Articulating Gear Case

...
...
1
LABEL - CAUTION ECH-89017854331
...
2
LABEL - CAUTION ECH-X505011540
...
3
LABEL - CAUTION ECH-X505000531
...
4
PIPE, MAIN INCLUDES ITEMS 5-6 ECH-C050000061
...
5
STOPPER ECH-61024644730
...
6
LINER - FLEXIBLE ECH-C507000240
...
7
DRIVESHAFT - FLEXIBLE ECH-C506000760
...
8
CAP, MAIN PIPE ECH-35122301130
...
9
RING, SNAP 22 ECH-90070200022
...
10
RING, SNAP 10 ECH-90070600010
...
11
BEARING, BALL 6900Z ECH-90085806900
...
12
BEARING, BALL 6900 ECH-90085506900
...
13
GEAR, DRIVE ECH-61031112360
...
14
CASE, GEAR ECH-61041012361
...
15
BOLT 5x35 ECH-90014205035
...
16
SPRING, THROTTLE LOCKOUT ECH-17801312360
...
17
WASHER 5.5x12x0.8 ECH-90060300005
...
18
BOLT 5x14 ECH-90016205014
...
19
LATCH RESETTER SET INCLUDES ITEMS 20-21 ECH-P021000850
...
20
PAWL ECH-61047212361
...
21
RESETTER, LATCH ECH-61047012361
...
22
BOLT 5 ECH-61047412360
...
23
PLATE, ANGLE ECH-61047812361
...
24
PIECE, LEVER ECH-19051112362
...
25
WASHER ECH-40372007350
...
26
WASHER, SPRING 6 ECH-90060500006
...
27
NUT, SLOT 6 ECH-90052900006
...
28
PIN, COTTER 1.6x16 ECH-90030016016
...
29
O-RING 32 ECH-90072400032
...
30
WASHER 8 ECH-61035012360
...
31
BEARING, NEEDLE ECH-10011311520
...
32
GEAR, BEVEL ECH-61036112360
...
33
WASHER 10 ECH-61031712460
...
34
BOLT 4x10 ECH-90016204010
...
35
BOLT 5x18 ECH-90016205018
...
36
FITTING, GREASE ECH-88011010860
...
37
COVER, GEAR CASE ECH-61043112360
...
38
SHAFT, GEAR ECH-61031012360

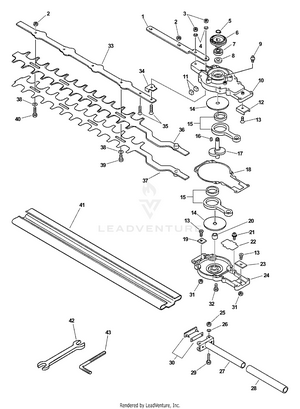

Gear Case, Blades

...
...
1
SUPPORT, BLADE ECH-69911012360
...
2
NUT M6 ECH-43302206460
...
3
NUT M5 ECH-90050000005
...
4
WASHER, SPRING 5 ECH-90060500005
...
5
E-RING 10 ECH-90070100010
...
6
GEAR, SPUR ECH-61031212360
...
7
BEARING, BALL 6000 ECH-90080006000
...
8
SEAL, OIL ECH-10021305930
...
9
FITTING, GREASE ECH-88011010860
...
10
CASE, GEAR ECH-61042012361
...
11
SEAL ECH-61042654030
...
12
GUIDE ECH-61044154030
...
13
SCREW 4x8 ECH-90021204008
...
14
PLATE, SIDE ECH-61046254030
...
15
CONROD ASSY ECH-61080554030
...
16
KEY, WOODRUFF ECH-61032502730
...
17
CAM ECH-61034412360
...
18
GASKET, GEAR CASE ECH-V110000000
...
19
PLATE, GUIDE ECH-61045054030
...
20
BEARING, PLAIN ECH-16061605410
...
21
SCREW 3x6 ECH-90024203006
...
22
PLATE, SIDE ECH-61042454030
...
23
PLATE, EYE ECH-61044754030
...
24
COVER ASSY ECH-61040954031
...
25
NUT M5 ECH-90050000005
...
26
WASHER, SPRING 5 ECH-90060500005
...
27
ADJUSTOR ASSY, HANDLE ECH-35130512360
...
28
GRIP, HANDLE Not Required When Replacing ITEM 27 ECH-35131512360
...
29
BOLT - 5x25 ECH-90014205025
...
30
PLATE, EYE ECH-V150000311
...
31
NUT ECH-900500-00004
...
32
BOLT 5x20 ECH-90014205020
...
33
GUIDE BAR ECH-69911712360
...
34
PLATE, ANGLE ECH-61044054030
...
35
SCREW 5x20 ECH-90021205020
...
36
CUTTER ECH-X411000500
...
37
CUTTER ECH-X411000490
...
38
WASHER 6.5x15.5x0.6 ECH-69911804560
...
39
BOLT, CUTTER ECH-69911507760
...
40
BOLT, CUTTER ECH-69911504560
...
41
Scabbard, Black. Hca-265es ECH-X495000960
...
42
WRENCH, ALLEN 4 MM ECH-A605000100
...
43
SPANNER 8x10 ECH-89511200330
...
...
...
