Echo 99944200552 ProSweep Attachment

Model: 99944200552 ProSweep Attachment

Save
 Part Not Listed?Part Not Listed?

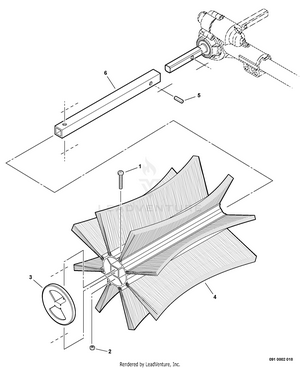

product name

Brush Assembly

...
...
1
SCREW 5x30 ECH-90022005030
...
2
NUT, LOCK M5 ECH-90056000005
...
3
CAP, DRUM ECH-25023025561
...
4
BRUSH ASSY - 0.018 INCH INCLUDES 2 BRUSH ASSEMBLIES ECH-99944200551
...
5
PIN, SPRING ECH-40452325560
...
6
SHAFT, DRUM ECH-C517000070

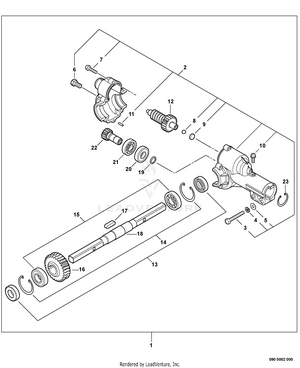

Gear Case

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2-23 ECH-60140024960
...
2
GEAR CASE ASSY INCLUDES ITEMS 3-11 ECH-60540112050
...
3
BOLT 6x25 ECH-90010006025
...
4
WASHER, SPRING 6 ECH-90060500006
...
5
WASHER 6.5x11.5x0.8 ECH-90060000006
...
6
BOLT 8x8 SP ECH-90010008008
...
7
SCREW 4x25 ECH-90024204025
...
8
BALL, STEEL ECH-90073101004
...
9
WASHER 3 ECH-60532411050
...
10
SCREW 5x14 ECH-90024205014
...
11
PIN, DOWEL ECH-60543011050
...
12
GEAR ECH-60530511050
...
13
SEAL, OIL 17 ECH-60541611050
...
14
E-RING 30 ECH-90070200030
...
15
BEARING, BALL 6903 ECH-90085506903
...
16
WHEEL, WORM ECH-60531511050
...
17
KEY ECH-90032504015
...
18
SHAFT, WORM WHEEL ECH-60531425560
...
19
RING, SNAP 9 ECH-90070600009
...
20
BEARING, BALL 609Z ECH-90080300609
...
21
BEARING, BALL 609 ECH-90080000609
...
22
GEAR ECH-60531011050
...
23
RING, SNAP 25 ECH-90070200025
...
...
...
