Echo 99944200535 3 Foot Extension Attachment

Model: 99944200535 3 Foot Extension Attachment

Save
 Part Not Listed?Part Not Listed?
product name

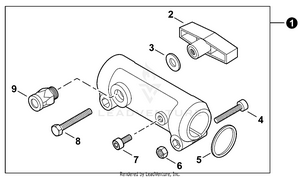

Coupler

...
...
1
COUPLER ASSY Includes Items 1-9 ECH-C510000330
...
2
THUMBSCREW ECH-V299000660
...
3
WASHER 6.6x20x1.6 ECH-V304000040
...
4
BOLT, TORX 6x25 ECH-V806000020
...
5
WASHER 18 SPR STEEL ECH-V312000010
...
6
NUT ECH-90051400006
...
7
BOLT, TORX 5x10 ECH-V805000130
...
8
BOLT 6x40 ECH-9108506040
...
9
LATCH ASSY ECH-17830256630

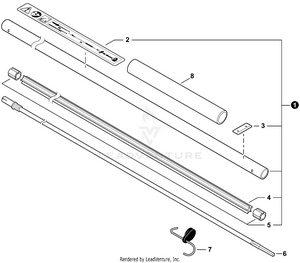

Main Pipe

...
...
1
MAIN PIPE ASSY Includes ITEMS 2-5 ECH-C050003150
...
2
LABEL - CAUTION ECH-X505009810
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000170
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE ECH-C506000110
...
7
HANGER, ATTACHMENT ECH-P021047620
...
8
GRIP, HANDLE ECH-35101254330
...
...
...
