Echo 99944200003 i-Start Kit

Model: 99944200003 i-Start Kit

Save
 Part Not Listed?Part Not Listed?
product name

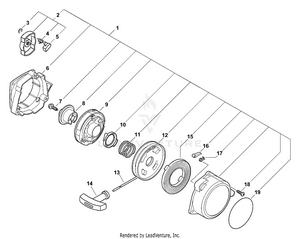

99944200003 i-Start Kit

...
...
1
STARTER ASSY Includes ITEMS 1-19 ECH-99944200003
...
2
PAWL ASSY, STARTER INCLUDES ITEMS 3-5 ECH-A052000110
...
3
E-RING 4 ECH-P022002100
...
4
SPRING, RETURN ECH-17723440630
...
5
PAWL, STARTER ECH-17721840630
...
6
SPACER ECH-V376000350
...
7
SCREW ECH-P022004630
...
8
PLATE, CAM ECH-P022004710
...
9
SPRING ASSY ECH-P022004700
...
10
PAWL, STARTER ECH-P022004670
...
11
SPRING, RETURN ECH-P022004660
...
12
PULLEY, STARTER ECH-P022004690
...
13
ROPE, STARTER RePower BULK OPTION: 99944440000 ECH-P022004600
...
14
GRIP, STARTER ECH-P022004990
...
15
SPRING, RECOIL ECH-P022004680
...
16
PAWL, STARTER ECH-P022004620
...
17
SPRING ECH-P022004610
...
18
SCREW, TAPPING 5x20 ECH-90025305020
...
19
LABEL, ECHO ECH-X502000240
...
xx
3 MM (1/8")x1000 MM (39-1/2"), BULK ECH-99944444000
...
...
...
