Echo 99944100003 Tube Mount Throttle Kit

Model: 99944100003 Tube Mount Throttle Kit

Save
 Part Not Listed?Part Not Listed?
product name

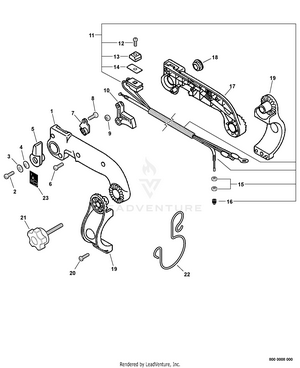

Tube Mount Throttle Control Kit

...
...
1
CONTROL HANDLE - LEFT ECH-35131507560
...
2
SCREW 6x20 ECH-90023506020
...
3
WASHER, SPRING 6 ECH-90060500006
...
4
WASHER 6.5x13x1 ECH-90060300006
...
5
CONTROL, THROTTLE ECH-17805407560
...
6
SCREW 4x22 ECH-90025604022
...
7
BRACKET, THROTTLE ECH-17812307561
...
8
SCREW 4x10 ECH-90024504010
...
9
NUT, HEX M6 ECH-90050000006
...
10
TRIGGER, THROTTLE ECH-17801007561
...
11
CABLE ASSY, CONTROL Includes ITEMS 12-16 ECH-V043000040
...
12
SCREW 3x10 ECH-9154503010
...
13
KNOB, SWITCH - ORANGE ECH-16341049231
...
14
LABEL - SWITCH ECH-89015712330
...
15
NUT 6 MM ECH-90050300006
...
16
CAP, DUST ECH-V494000080
...
17
CONTROL HANDLE - RIGHT ECH-35131107560
...
18
PLUG ECH-35114607560
...
19
BRACKET KIT, HANDLE ECH-P021013321
...
20
SCREW, TAPPING 5x20 ECH-90025305020
...
21
KNOB, SCREW ECH-V299000630
...
22
CLIP ECH-V490000230
...
23
LABEL - ON-OFF ECH-89015706560
...
...
...
