Echo 90091 Complete Shaft Assembly Pruner Accessories

Model: 90091 Complete Shaft Assembly

Save
 Part Not Listed?Part Not Listed?
product name

Main Pipe - Lower

...
...
1
COUPLING ASSY, LOWER Includes Items 2-3 ECH-P021044691
...
2
CUSHION ECH-V420001810
...
3
BOLT, TORX 5x20 ECH-V805000160
...
4
BOLT, TORX 5x20 ECH-V805000160
...
5
WASHER 5 ECH-V303000071
...
6
DRIVESHAFT ASSY, LOWER Includes Items 7-8 ECH-C504000372
...
7
BEARING, BALL 15x32x9 ECH-9405736002
...
8
RING, RETAINING ECH-10022922460
...
9
PIPE, MAIN - ORANGE ECH-C500000271

Main Pipe - Upper

...
...
1
THUMBSCREW ECH-V299000660
...
2
BOLT 6x25 ECH-90010006025
...
3
BOLT, TORX 5x12 ECH-V805000140
...
4
BOLT, TORX 5x20 ECH-V805000160
...
5
COUPLING, MAIN PIPE ECH-C510000390
...
6
NUT M5 ECH-90050000005
...
7
MAIN PIPE ASSY - BLACK Includes Items 8-9 ECH-C050000760
...
8
HOLDER ASSY, BEARING ECH-C503000080
...
9
RIVET ECH-89001122360
...
10
SOCKET - OUTER ECH-C509000080
...
11
SOCKET - INNER ECH-C509000090
...
12
DRIVESHAFT - UPPER ECH-C504000360

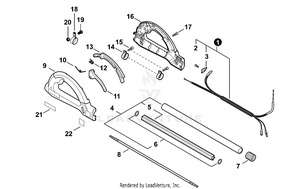

Throttle Control

...
...
1
CABLE ASSY, CONTROL Inlcudes Items 2-3 ECH-P021017020
...
2
SCREW 3x10 ECH-9154503010
...
3
KNOB, SWITCH - ORANGE ECH-A444000020
...
4
MAIN PIPE ASSY Includes Items 5-6 ECH-C050000770
...
5
LINER ECH-C507000160
...
6
WASHER ECH-V583000110
...
7
TUBE, FLEXIBLE ECH-V475004000
...
8
DRIVESHAFT - FLEXIBLE ECH-C506000100
...
9
BODY, HANDLE - LEFT ECH-C041000012
...
10
SPRING, TORSION ECH-V452000330
...
11
TRIGGER, THROTTLE ECH-C450000260
...
12
SPRING, TORSION ECH-V452000340
...
13
LOCKOUT, THROTTLE ECH-C460000100
...
14
CLAMP ECH-V495003020
...
15
SCREW M5x20 ECH-V253000220
...
16
BODY, HANDLE - RIGHT ECH-C041000002
...
17
SCREW M5x18 ECH-V253000210
...
18
CLAMP ECH-30061022061
...
19
SCREW 5x10 ECH-V253000200
...
20
NUT, M5x8 NYLON INSERT ECH-V263000080
...
21
LABEL - ECHO ECH-X502000610
...
22
LABEL - CAUTION - ISO ECH-X505002363
...
...
...
