product name

Echo 900112 Hip Mount Throttle Kit

Model: 900112 Hip Mount Throttle Kit

Save
 Part Not Listed?Part Not Listed?
product name

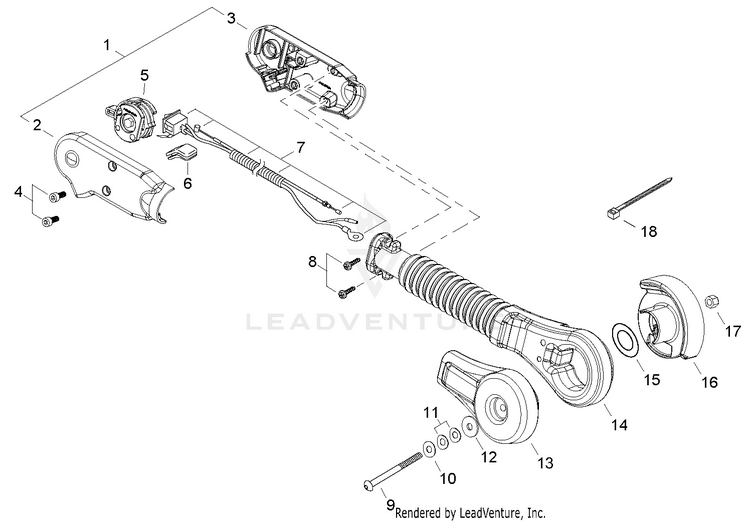

900112 Hip Throttle Kit

...
...
1
GRIP SET, THROTTLE ECH-P021014673
...
1
GRIP SET, THROTTLE ECH-P021014673
...
2
GRIP, LEFT THROTTLE ECH-C471000115
...
2
GRIP, LEFT THROTTLE ECH-C471000115
...
3
GRIP, RIGHT THROTTLE ECH-C471000102
...
3
GRIP, RIGHT THROTTLE ECH-C471000102
...
4
SCREW 5 ECH-88995021060
...
4
SCREW 5 ECH-88995021060
...
5
CONTROL, THROTTLE ECH-C470000162
...
5
CONTROL, THROTTLE ECH-C470000162
...
6
GROMMET ECH-V144000181
...
6
GROMMET ECH-V144000181
...
7
CABLE/FIXTURE KIT ECH-P021052160
...
7
CABLE/FIXTURE KIT ECH-P021052160
...
8
BOLT, TORX 5x16 ECH-V805000150
...
8
BOLT, TORX 5x16 ECH-V805000150
...
9
BOLT, TORX 6x75 ECH-V806000030
...
9
BOLT, TORX 6x75 ECH-V806000030
...
10
WASHER 6.6x20x1.6 ECH-V304000040
...
10
WASHER 6.6x20x1.6 ECH-V304000040
...
11
WASHER, FRICTION 6.6x14.3 ECH-17816021060
...
11
WASHER, FRICTION 6.6x14.3 ECH-17816021060
...
12
WASHER 6.5x15.5x0.6 ECH-69911804560
...
12
WASHER 6.5x15.5x0.6 ECH-69911804560
...
13
BRACKET, ARM - OUTER ECH-C472000051
...
13
BRACKET, ARM - OUTER ECH-C472000051
...
14
ARM, THROTTLE CONTROL ECH-C456000050
...
14
ARM, THROTTLE CONTROL ECH-C456000050
...
15
WASHER 45 ECH-V336000000
...
15
WASHER 45 ECH-V336000000
...
16
BRACKET, ARM - INNER ECH-C472000041
...
16
BRACKET, ARM - INNER ECH-C472000041
...
17
NUT, LOCK M6 ECH-90056250006
...
17
NUT, LOCK M6 ECH-90056250006
...
18
STRAP, CABLE ECH-17812143230
...
18
STRAP, CABLE ECH-17812143230
...
...
...
