product name

Echo 35130455830 U-Handle Kit

Model: 35130455830 U-Handle Kit

Save
 Part Not Listed?Part Not Listed?
product name

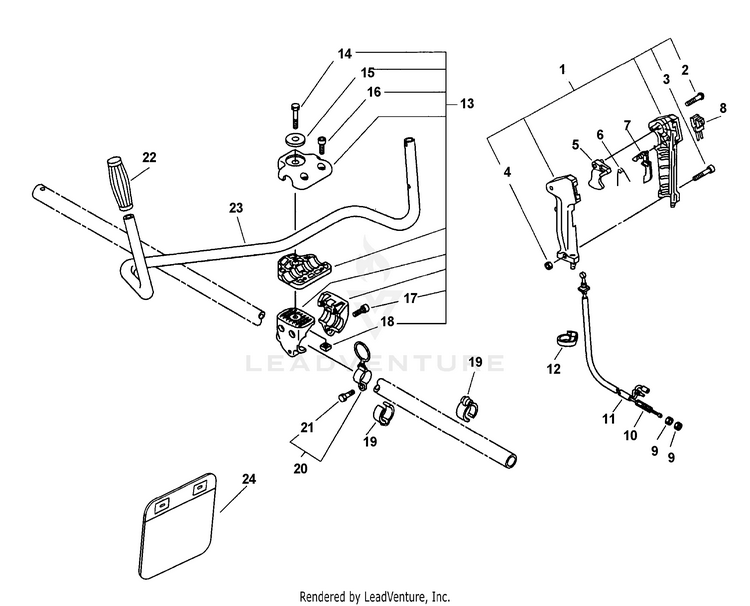

U-Handle Kit

...
...
1
CONTROL HANDLE KIT Includes ITEMS 2-4 ECH-35110247530
...
2
SCREW 3x25 ECH-90024603025
...
3
SCREW 5x30 ECH-90022005030
...
4
NUT M5 ECH-90050000005
...
5
TRIGGER, THROTTLE ECH-17801005960
...
6
SPRING, TORSION ECH-17801335631
...
7
LOCKOUT, THROTTLE ECH-17801205960
...
8
SWITCH, ON-OFF ECH-A440000310
...
9
NUT M6 (3N) ECH-90050200006
...
10
CABLE, THROTTLE ECH-17800147530
...
11
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
12
CLIP, CABLE ECH-15911209961
...
13
MOUNT KIT, HANDLE Includes ITEMS 14-18 ECH-P021012831
...
14
BOLT 8x55 ECH-35142152130
...
15
WASHER 8 ECH-60501454230
...
16
BOLT 5x20 ECH-90016205020
...
17
BOLT 5x30 ECH-90016205030
...
18
NUT 8x1.25 ECH-90056550008
...
19
CLIP, CABLE 25 MM ECH-22492452130
...
20
HANGER ASSY, HARNESS Includes ITEM 21 ECH-P021012661
...
21
BOLT 5x12 ECH-90010005012
...
22
GRIP, HANDLE ECH-35131102330
...
23
HANDLEBAR ECH-C400000000
...
24
PAD, HIP ECH-C652000000
...
...
...
