product name

EGO STX3800 Version-A String Trimmer

Model: STX3800_A

Save
 Part Not Listed?Part Not Listed?
product name

EGO STX3800_A

...
...
1
Upper Housing EGO-3402942001
...
2

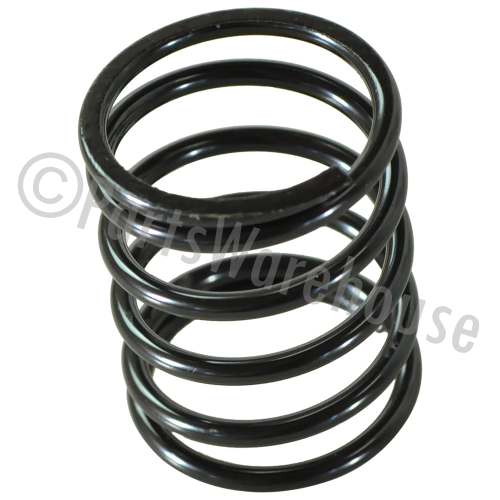

Compression Spring EGO-3660699001
...
3
Nut EGO-5630292001
...
4
Screw EGO-5620479001
...
5
Washer EGO-5650278002
...
6
Mounting Wire Holder Assembly EGO-2825610001
...
7
Lower Housing Assembly EGO-2825608001
...
8
Support Head EGO-3129386001
...
9
Trimmer Line EGO-3800150001
...
10
Spring Washer EGO-5650015012
...
11
Hexagon Socket Screw EGO-5620216006
...
12
Fixing Board EGO-3705417001
...
13
Hexagon Socket Screw EGO-5620213003
...
14
Washer EGO-5650598001
...
15
Hexagon Socket Screw EGO-5620606001
...
16
Shield EGO-3706103001
...
17
Inner Flange EGO-3552509001
...
18
Handle Lever Set EGO-2824142003
...
19
Front Handle EGO-3127657001
...
20
Clamping Block EGO-3127651001
...
21
Wing Nut EGO-3400010003
...
22
Fixed Ring EGO-3706559001
...
23
Holding Ring EGO-3129457001
...
24
Push Button EGO-3130093001
...
25
Handle Set EGO-3900163001
...
26
Switch Assembly EGO-4870685001
...
27
Knob-Reset Spring EGO-3660088003
...
28
Switch Lever Assembly EGO-2826345001
...
29
Pin EGO-5670028002
...
30
Rubber Gasket EGO-5650604001
...
31
Right Housing EGO-3422157001
...
32
Internal Wire Assembly EGO-4860525001
...
33
Hexagon Socket Screw EGO-5620018005
...
34
Base Assembly EGO-2825783001
...
35
Shaft Sleeve EGO-3552896001
...
36
Dc Motor EGO-2730271001
...
37
Rear Cover EGO-3422158001
...
38
Hexagon Socket Screw EGO-5620019004
...
39
Sponge Pad EGO-3704820001
...
40
Plate EGO-3129444001
...
41
Electric Assembly EGO-2830332003
...
42
Left Housing EGO-3422156001
...
43
Tapping Screw EGO-5610305001
...
44
Tube Assembly EGO-2826455001
...
45
Shaft EGO-2825589001
...
46
Retaining Ring EGO-3128598001
...
47
Blade EGO-3707375001
...
48
Inner Hexagon Spanner EGO-5680164001
...
49
Wrench EGO-5680217001
...
201
Gear Case Assembly EGO-2825611001
...
202
Cutting Head Set EGO-2825606001
...
203
Handle Assembly EGO-2824020003
...
204
Guard Assembly EGO-2827559002
...
...
...
