product name

Dyson AM07 Tower Fan

Model: AM07

Save
 Part Not Listed?Part Not Listed?
product name

Dyson AM07

...
...
1
Screw M2.5X8-T8 DY-965857-01
...
2
Motor Loom Retainer DY-965852-01
...
3
Iron Lower Body Housing DY-966006-01
...
3b
White Lower Body Housing DY-966006-03
...
3a
Lower Body Housing Stb DY-966006-02
...
4
Powercord Assembly DY-964364-02
...
5
Powercord Retainer DY-919032-01
...
6
Lower Body Cap DY-964309-01
...
7
Foot Pad Assembly DY-919938-01
...
8b
Soft Touch Black Tower Base Assembly DY-963473-03
...
8
White Base Assembly DY-963473-01
...
8a
Iron Base Assembly DY-963473-02
...
9
Lower Bearing Service Assembly DY-969528-01
...
10
Power Button DY-965853-02
...
10a
Power Button DY-965853-04
...
11a
Lcd & Pcb Assembly DY-965850-01
...
11b
Lcd & Pcb Assembly DY-965884-01
...
11

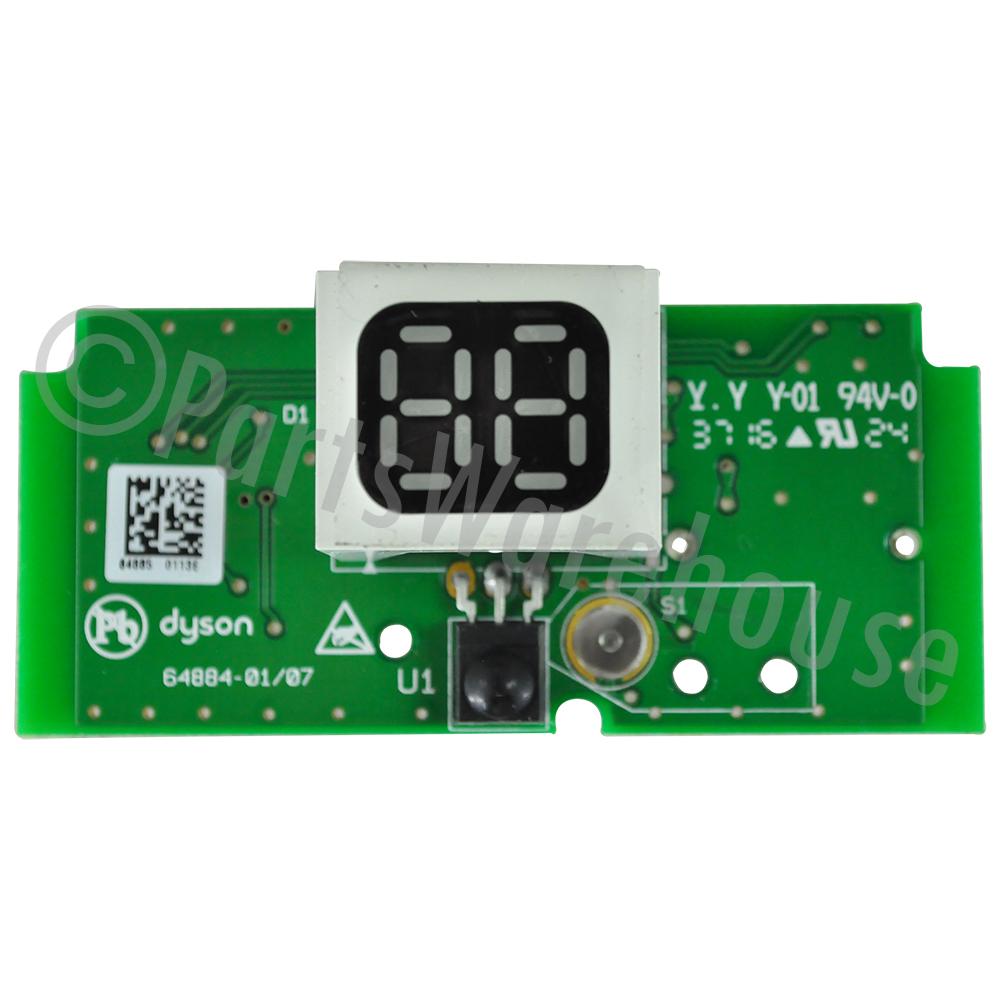

Lcd & Pcb Assembly DY-964885-01
...
12
Pcb Assembly DY-964557-01
...
13
Screw M2.5X10-T8 DY-910703-22
...
14
Self Tapping Screw M3X6.4-T8 DY-917192-03
...
15
Screw & Captive Washer M4X15-T20 DY-965856-01
...
16
Screw And Captive Washer 3.5X16-T15 DY-909584-04
...
17
Screw M3.5X12-T15 DY-910703-03
...
18
Screw M3X14-P1 DY-965825-01
...
19
Motor & Bucket Assembly DY-966034-01
...
20
Main Body Seal DY-966004-01
...
21
Iron Upper Body Housing Assembly DY-963439-02
...
21b
Soft Touch Black Upper Body Housing Assembly DY-963439-06
...
21a
White Upper Body Housing Assembly DY-963439-04
...
22
Oscillation Motor Assembly DY-965855-02
...
23
Screw M3X12-T10 DY-910703-16
...
24
Screw (M2.5X10-T6) DY-968109-01
...
25
Emc Plate DY-968108-01

Dyson AM07

...
...
1
White/Silver Mini Amp Assembly DY-965937-01
...
1a
Iron/Blue Mini Amp Assembly DY-965937-02
...
1b
Black/Nickel Mini Amp Assembly DY-965937-03
...
2
White Remote Control DY-965824-01
...
2a
Iron Remote Control DY-965824-02
...
2b
Soft Touch Black Remote Control Assembly DY-965824-03
...
3
White/Silver Amp Assembly DY-965863-01
...
3a
Iron/Blue Amp Assembly DY-965863-02
...
3b
Black/Nickel Amp Assembly DY-965863-03
...
3c
Iron/Silver Amp Assembly DY-965863-09
...
3d
Amp Assembly Ir/Co DY-965863-13
...
3e
Mini Amp Assembly Ir/Sv DY-965937-06
...
...
...
