Briggs & Stratton 9897-0 - 580.751650, 2,200 PSI Craftsman

Model: 9897-0 - 580.751650, 2,200 PSI

Save
 Part Not Listed?Part Not Listed?
product name

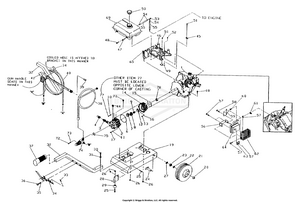

General Assembly (10/95)

...
...
1
6 5 HP Engine with 70mm piston BS-90507
...
6.5 HP Engine with 75mm piston BS-90508
...
2
3.0 Gpm Pump BS-95319C
...
3
Garden Hose Quick Connect BS-7175187GS
...
4
Garden Hose Quick Connect BS-7175187GS
...
5
SHOE, Piston Pivot BS-94944GS
...
6
O-RING, Crankcase BS-93790GS
...
7
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
8
3.0 GPM Axial Cam BS-96439
...
9
ADPTR, ENG SHFT, TAPER BS-95165GS
...
10
M6 Ribbed Lock Washer BS-93873
...
11
Front Gun Bracket BS-95963
...
12
BRNG, THRST 51110 BS-93869GS
...
13
CAPSCREW, Socket Head BS-23707GS
...
14
ADPTR, ENG, MCHND BS-96430AGS
...
15
GSKT, ADPTR, ENG BS-93871GS
...
16
WASHER, Lock BS-92479GS
...
17
SCREW BS-40945GS
...
18
HHCS, M8 - 1.25 x 35 BS-39414GS
...
19
Mounting Base BS-95902
...
20
PUSHNUT BS-194062GS
...
21
ASSY., Wheel & Tire 10" BS-88521GS
...
22
WASHER, Flat BS-49808GS
...
23
NUT BS-5025391FS
...
24
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS
...
25
HHCS, M8 x 20 BS-39253GS
...
26
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
27
5/8" Lock Washer BS-79246
...
28
LEG, SPPRT, KIT, WHL, PW BS-92339GS
...
29
MOUNT, Rubber Donut BS-87841GS
...
30
M8-1.25 x 40mm Screw BS-57821
...
31
Washer, .34 x 1 x 10 BS-50190GS
...
32
ASSY, HNDL, GUIDE, SRS BS-91093GS
...
33
Vinyl Cap BS-92067
...
34
SPPRT, GUN/HOSE BS-95908GS
...
35
#10 Flat Washer BS-96633
...
36
SCREW BS-313085GS
...
37
GRIP, HNDL BS-77584GS
...
38
ASSY, HOSE, CHEM INJ BS-96168GS
...
39
NZZL, HI-LO, 1.20, M22, MV BS-95587AGS
...
40
3/8" x 25 Ft. Hose Assembly BS-91630
...
41
GUN, 2500PSI, 3/8, M22, MV BS-95567GS
...
44
GAUGE, 5000PSI PW, 1/8 IN (Optional) BS-94197GS
...
45
CLIP, SPRING, 0.37 X 0.62 BS-65852GS
...
46
Cradle BS-95214
...
47
BSHNG, TANK BS-96002GS
...
48
M6-1.0 x 21 mm Bolt BS-96001
...
49
Front Gun Bracket BS-95963
...
50
CAP, Fuel Tank BS-846987
...
51
TAPTITE, M4-0.7 X 8 BS-45764GS
...
52
NUT-M6 FLANGE BS-52857GS
...
53
VALVE-FUEL SHUT OFF BS-698180
...
54
Hose Clamp BS-48031C
...
55
1/4" I.D Fuel Hose BS-30340
...
56
BRCKT, MFFLR, GN160 BS-90300GS
...
57
M5 x 10mm Screw BS-90299
...
58
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
59
Muffler Support Bracket BS-92535
...
60
M8 x 20mm Screw BS-40976
...
61
GSKT, EXHAUST BS-80314GS
...
62
Muffler Guard BS-89712
...
63
SCREEN, Spark Arrest BS-83083GS
...
64
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
65
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
67
M16 x 1.5 JAM Nut BS-93887
...
68
WSHR, BELV, 16 X 2.7 BS-94738GS
...
69
TANK, FUEL, 1 GAL, PLAIN BS-94994GS
...
70
Oil Cap/breather BS-95454
...
72
SCREW BS-40945GS
...
73
M6 Ribbed Lock Washer BS-93873
...
74
Unloader Assembly BS-96581E
...
75
SCREW BS-690904
...
76
NOZZLE, Replacement BS-92661GS
...
77
SCREW BS-51767GS
...
78
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
SCREW (Not shown) BS-690365

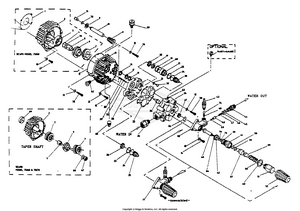

Pressure Pump (10/95)

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
Shield, Heat BS-690318
...
5
ADPTR, ENG SHFT, TAPER BS-95165GS
...
6
AXIAL CAM BS-96439
...
7
BEARING, ROLLER THRUST BS-96942
...
8
O-RING, Crankcase BS-93790GS
...
9
RETAINER, SPRING, PSTN BS-95386GS
...
10
PISTON BS-95217
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Lock BS-92479GS
...
13
LOCKWASHER BS-93873
...
14
SCREW BS-40945GS
...
15
SCREW BS-691664
...
16
SEAL BS-93690
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, Oil Piston BS-93680GS
...
19
RING, Bearing BS-96015GS
...
20
OIL FILL BREATHER BS-95454
...
21
TOWER, HIGH PRESS BS-98095
...
22
SEAL, High Pressure BS-96053GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK, PW BS-96005GS
...
26
SUPPORT BS-95896
...
27
CAPSCREW, Socket Head BS-23707GS
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
PLATE, SPACER BS-94402
...
31
O-RING, 4.5 X 8 X 1.8 BS-93673GS
...
32
PPHMS, M5-0.8 X 20 BS-93678GS
...
33
GSKT, HD, GPW BS-B2668GS
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
HEAD, CYLINDER BS-95138
...
37
ASSY, SEAT/O-RING BS-95382GS
...
38
TERMINAL, Ground BS-691084
...
39
SCREW BS-690346
...
40
SCREW BS-690992
...
41
GUIDE BS-96397
...
42
O-RING, 14 X 1.8 BS-95372GS
...
43
FTG, CHEM INJ BS-95378GS
...
44
ADPTR, OUT, PRSSR, HI BS-95377GS
...
45
O-RING, 13 X 16 X 1.8 BS-93788GS
...
46
O-RING, 16 X 19 X 1.8 BS-93787GS
...
47
SPRING, RETURN, SHUTL BS-95376GS
...
48
PISTON BS-95374
...
49
O-RING, 4.3 X 2.4 BS-95375GS
...
50
SPRING BS-95384
...
51
ADPTR, PRSSR ADJ, HI BS-95364BGS
...
52
KNOB, PRSSR ADJ, RED BS-95381BGS
...
53
PLUG, 1/8" - 27 BS-96137GS
...
54
SCREW BS-690904
...
55
BODY BS-95216
...
56
O RING BS-95389
...
57
PISTON BS-95368
...
58
O-RING, 7.6 X 1.8 BS-95370GS
...
59
SPPRT, SPRING BS-95363GS
...
60
O-RING, 26.6 ID X 2.6 BS-96069GS
...
61
RING, BACKUP, HYTRILE BS-95506GS
...
62
GAUGE, OIL LEVEL, SIGHT BS-95453GS
...
63
FTG, 3/8, MAGNET, PIPE PLUG BS-57163GS
...
64
SPPRT, O-RING, PSTN BS-95371GS
...
65
SPRING, INJ, CHEM BS-95380GS
...
66
MANUAL-OPERATOR BS-94739GS
...
67
NUT BS-93887
...
68
RETAINER, SPRING, PSTN BS-95386GS
...
69
SLEEVE, ENG ADAPT BS-98441
...
71
SHOE, Piston Pivot BS-94944GS
...
72
RING, C RETAINER BS-94284
...
73
O RING BS-93976
...
74
BALL BS-95379
...
75
STUD BS-691120
...
76
RING BS-93867
...
77
ASSY, UNLOADER BS-95212B
...
78
SCREW BS-51767GS
...
...
...
