Briggs & Stratton 9895-0 - 580.751350, 1,500 PSI Craftsman

Model: 9895-0 - 580.751350, 1,500 PSI

Save
 Part Not Listed?Part Not Listed?
product name

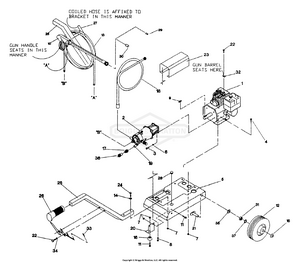

Craftsman 1500 PSI High Pressure Washer (10/95)

...
...
1
3.5 HP Craftsman 143.953507 Engine BS-95989
...
2
PUMP, ANNOVI, [email protected] BS-87627GS
...
3
SCREW BS-95531GS
...
4
HHCS, M8 - 1.25 x 35 BS-39414GS
...
5
Mounting Plate BS-95902
...
6
WASHER, Lock BS-92479GS
...
7
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
8
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
9
KEY, 3/16 SQ 1-7/8 BS-89314GS
...
10
GUN, 2500PSI, 3/8, M22, MV BS-95567GS
...
11
HHCS, M8 x 20 BS-39253GS
...
12
WHEEL BS-197061GS
...
13
PIN, COTTER, 1/16X0.5 BS-703464
...
14
Washer, .34 x 1 x 10 BS-50190GS
...
15
PUSHNUT BS-194062GS
...
16
MOUNT, Rubber Donut BS-87841GS
...
17
QC, FML, M22 BS-96017GS
...
18
ASSY, FILTER/TUBE BS-89800GS
...
19
NECK, PLSTC, XB SPPRT BS-90065GS
...
20
LEG, SPPRT, PW, SRS BS-91092GS
...
21
SCREW BS-93278GS
...
22
SCREW BS-313085GS
...
23
Pump Shroud BS-88618
...
24
M8-1.25 x 40mm Capscrew BS-57821
...
25
ASSY, HNDL, GUIDE, SRS BS-91093GS
...
26
GRIP, HNDL BS-77584GS
...
27
SPPRT, GUN/HOSE BS-95908GS
...
28
GROMMET, Base BS-199553GS
...
29
Turbo Head BS-91106
...
30
NZZL, HI-LO, 1.10, M22, MV BS-95587CGS
...
31
NUT BS-5025391FS
...
32
CLIP, SPRING, 0.37 X 0.62 BS-65852GS
...
33
Vinyl Cap BS-92067
...
34
M5 x 20mm Flat Washer BS-96633
...
35
GEARBOX BS-84009471
...
36
Garden Hose Quick Connect BS-7175187GS
...
37
WASHER, Flat BS-49808GS
...
MANUAL-OPERATOR (Not Shown) BS-96011GS
...
ASSY, INJ, CHEM, XB BS-94110GS

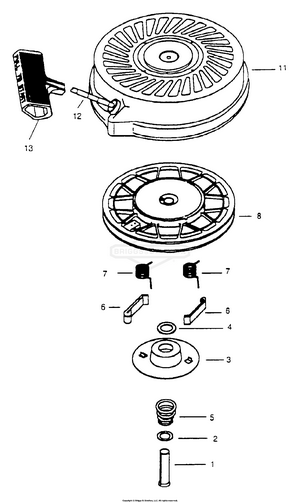

Rewind Starter (10/95)

...
...
1
PIN, SPRING Included No. 4 BS-590599A
...
2
WASHER BS-590600
...
3
RETAINER BS-590696
...
4
FILTER, A/C Cartridge BS-590601
...
5
SPRING, BRAKE BS-590597
...
6
TUBE, Breather BS-590698
...
7
SCREW BS-590643
...
8
SCREW BS-590850
...
11
SEAL, O-Ring BS-590695
...
12
ROPE, STARTER (length 114" & 11/64" dia.) BS-590535
...
13
SCREW BS-590850
...
...
...
