Briggs & Stratton 9580-1 - 3W741B, 4,000 Watt Dayton

Model: 9580-1 - 3W741B, 4,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

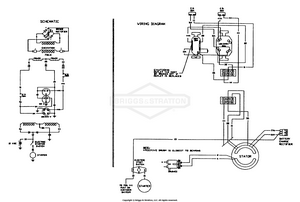

Electrical Data (10/95)

...

No Parts Available for this Schematic

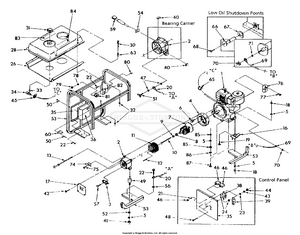

Generator Replacement Parts (10/95)

...
...
1
Briggs & Stratton engine BS-94103
...
2
CARRIER, Rear Bearing BS-SRV66825DGS
...
3
Brush/bridge rectifier assembly BS-91825
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
WASHER, Lock BS-22129GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
Rotor assembly BS-91836G
...
8
BEARING BS-65791GS
...
9
Special washer BS-67451
...
10
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
11
ASSY, STATOR, 4000DPE90, 10A-BC, OBS BS-95343GGS
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
Bearing carrier cover BS-67025
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
WIRE, Ground BS-195373GS
...
21
WASHER, 7/16" Int Lock BS-82881GS
...
22
SCREW BS-313085GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
26
HTSHLD, SP-4000W BS-84324GS
...
28
5 gallon Plastic fuel tank BS-77374
...
30
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
31
fuel tank cap BS-84582
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
Control panel BS-84297
...
36
PANEL, Control, Back, Plastic BS-81919GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET, 20A,120V BS-68759GS
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
NUT, 5/16-18 HEX BS-25244GS
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
#8 Lockwasher BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
46
BREAKER-CIRCUIT 20A BS-209872GS
...
48
M4-0.7 x 10mm Screw BS-75475
...
49
MOUNT, VIBRATION BS-82857GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
51
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
53
Cradle BS-94385A
...
54
GROMMET, RUBBER BS-67022GS
...
56
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
57
M5 0.8 x 15mm Screw BS-66949
...
59
FASTEN, On Tab Housing 6P BS-22695GS
...
60
HOUSING, Receptacle BS-22694GS
...
63
GROMMET, TANK BS-83465GS
...
65
1/4" Hose clamp BS-48031C
...
66
Low oil shutdown switch BS-88977
...
67
Low oil shutdown gasket BS-91841
...
68
TAPTITE, #10-32 X 5/8 BS-32713GS
...
69
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
70
NUT, #8-32 BS-22471GS
...
71
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
74
RECTIFIER, BATTERY CHARGE BS-65795GS
...
75
SCREW BS-66849AGS
...
76
SCREEN, ARRSTR, SPARK, B&S BS-77601GS
...
77
SCREW, DEFLECTOR BS-77836AGS
...
78
CAP BS-5022097SM
...
79
FUEL GAUGE, 12" (SV) BS-5022197
...
80
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
81
Starter switch BS-77282
...
82
BRACKET, STARTER SWITCH BS-78289GS
...
83
DECAL, Danger BS-194799GS
...
84
DECAL, START INSTRUCTIONS BS-93826GS
...
85
NUT, 5/16-18 HEX BS-25244GS
...
86
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
87
PPHMS, 5/16-18 X 2 BS-71729GS

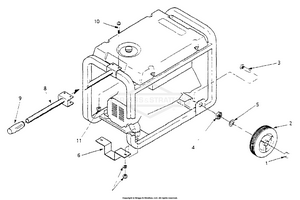

Wheel Kit Replacement Parts (10/95)

...
...
1
PUSHNUT BS-194062GS
...
2
CAPSCREW, 5/16-18 BS-703408
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
5
WASHER, Flat BS-49808GS
...
6
Mounting leg BS-94034
...
8
Lifting handle BS-94910
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
...
...
