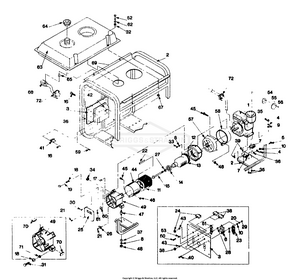

Electrical Schematic And Wiring Diagram 3W795A & 3W796A

...

No Parts Available for this Schematic

Generator 3W796A

...
...
1
Briggs & Stratton engine BS-79557
...
2
Cradle assembly BS-86100
...
3
PNL, SHTMTL 4000 5000 BS-83988GS
...
4
Ground wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
OUTLET, 120/240V Locking, 20A BS-68867GS
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
Stator assembly BS-79636
...
12
ADPTR, HSNG, 8 HP BS-66365DGS
...
13
Rotor assembly BS-74716
...
14
BEARING BS-65791GS
...
15
CAPSCREW, Hex Head BS-75431GS
...
16
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.0 x 130mm Stator bolt BS-66449D
...
20
No. 8 Lock washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
22
PIN, ROLL 4MM x 10 BS-81917GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 10A BS-75207BGS
...
25
Bearing carrier cover BS-67025
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
HANDLE BS-84010594
...
32
GROMMET, TANK BS-83465GS
...
33
5/16"-24 x 2-1/2" Screw BS-23541
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
BREAKER-CIRCUIT 20A BS-209872GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
M4-0.7 x 10mm Screw BS-75475
...
41
HOUSING, Receptacle BS-22694GS
...
42
PANEL, Control, Back, Plastic BS-81919GS
...
43
WASHER, 7/16" Int Lock BS-82881GS
...
44
Alternator wrap BS-81887C
...
45
SCREW, M5 x 0.8 x 12 BS-52618GS
...
46
NUT, LOCKING-M5 BS-52856GS
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
CARRIER, Rear Bearing BS-SRV66825DGS
...
50
SCREW, M3-0.5 x 10mm BS-43181GS
...
51
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418 BS-66822GS
...
52
M6 x 60mm Capscrew BS-78831A
...
53
WASHER, M3 Lock BS-43182GS
...
54
Spark arrestor screen BS-84202
...
55
Spark arrest deflector BS-84203
...
56
SCREW, DEFLECTOR BS-77836AGS
...
57
Engine spacer BS-68342
...
58
Engine spacer finger guard BS-83888
...
59
No. 10-24 Capscrew BS-75494
...
60
RECTIFIER, BATTERY CHARGE BS-65795GS
...
61
SCREW BS-66849AGS
...
62
WSHR, SPCL, BLK BS-78830GS
...
63
5 gal. Plastic gas tank BS-77374
...
64
Fuel tank cap BS-84582
...
65
Plastic tank bushing BS-80269
...
66
Kit, Valve BS-192980GS
...
67
NUT, FLANGE LOCK - M6 BS-77395GS
...
69
HTSHLD, SP-4000W BS-84324GS
...
70
GROMMET, Plastic RBC BS-84242GS
...
71
WASHER BS-22447GS
...
72
1/4" Hose clamp BS-48031C

Wheel Kit

...
...
1
PUSHNUT BS-194062GS
...
2
Wheel - (7" diameter) BS-39714
...
3
Axle BS-75401
...
4
NUT, 5/16 - 18 BS-22259GS
...
5
WASHER, Lock BS-22129GS
...
6
Mounting leg BS-77700
...
7
U-bolt BS-26858
...
8
ASSEMBLY, Handle BS-189715GS
...
9
GRIP, Handle BS-75928GS
...
10
SCREW BS-39287GS
...
11
SKID PLATE BS-5045771B
...
...
...
