Briggs & Stratton 9436-0 - 3W742, 5,000 Watt Dayton

Model: 9436-0 - 3W742, 5,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

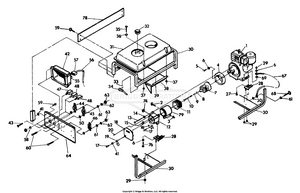

Generator

...
...
1
10 HP Tecumseh engine BS-82335
...
2
SCREW, M5 x 0.8 x 12 BS-52618GS
...
3
NUT, LOCKING-M5 BS-52856GS
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
5/16"-24 x 3/4" Screw BS-22336
...
6
WASHER, Lock BS-22129GS
...
7
Rotor assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator assembly BS-79636
...
12
Rear bearing carrier BS-66825
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
17
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
18
Bearing carrier cover BS-67025
...
19
Grounding lug BS-25433
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
MOUNT, Vibration 45°. BS-70642GS
...
29
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
30
Cradle assembly BS-77840
...
31
Fuel tank BS-77374
...
32
Fuel tank cap BS-78824
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
M6-1.0 x 55mm screw BS-78831
...
36
WSHR, SPCL, BLK BS-78830GS
...
37
NUT, FLANGE LOCK - M6 BS-77395GS
...
38
Heat shield BS-78951B
...
39
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
41
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
42
PANEL, Control, Back, Plastic BS-81919GS
...
43
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
44
OUTLET-120V TL30A BS-705932
...
45
OUTLET, 120/240V Locking, 20A BS-68867GS
...
46
OUTLET, 20A,120V BS-68759GS
...
47
BREAKER-CIRCUIT 30A BS-706178
...
48
BREAKER-CIRCUIT 20A BS-209872GS
...
49
MOUNT, VIBRATION BS-82857GS
...
50
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
55
HOUSING, Receptacle BS-22694GS
...
56
Black sleeving BS-82859
...
57
FASTEN, On Tab Housing 6P BS-22695GS
...
58
WASHER, 7/16" Int Lock BS-82881GS
...
59
Self-drilling screw BS-75494
...
60
M4-0.7 x 10mm Screw BS-75475
...
61
WASHER BS-38150GS
...
62
No. 8 Lock washer BS-22264
...
63
NUT, M4-0.7 Hex BS-51715GS
...
64
Control panel BS-81897
...
67
Ground wire BS-10953621
...
68
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
69
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
74
GROMMET, RUBBER BS-67022GS
...
76
SCREW BS-70644GS
...
78
Side panel BS-82410
...
79
Alternator wrapper BS-81887C

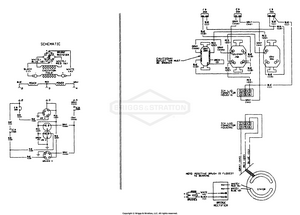

Wiring Diagram

...
