Briggs & Stratton 9432-0 - 3W794, 2,250 Watt Dayton

Model: 9432-0 - 3W794, 2,250 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

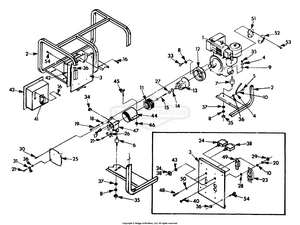

Generator

...
...
1
HRN TACH MAIN BS-7078257YP
...
2
Cradle assembly BS-83990
...
3
Control panel side BS-84027
...
4
Ground wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
Vibration mount BS-66443A
...
7
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
Stator assembly BS-83993
...
12
HSNG, ENG, FML BS-66365FGS
...
13
Rotor assembly BS-74713
...
14
BEARING BS-65791GS
...
15
5/16"-24 x 7-7/8" Rotor bolt BS-24420
...
16
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.00 x 80mm Stator bolt BS-66449C
...
20
No. 8 Lock washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 10A BS-75207BGS
...
25
Bearing carrier cover BS-67025
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
Grounding lug BS-25433
...
33
5/16"-24 x 3/4" Hex head screw BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
SKID PLATE BS-5045771B
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
BREAKER-CIRCUIT 20A BS-209872GS
...
40
M4-0.7 10mm Phillips pan head machine screw BS-75475
...
41
HOUSING, Receptacle BS-22694GS
...
42
PANEL, Control, Back, Plastic BS-81919GS
...
43
WASHER, 7/16" Int Lock BS-82881GS
...
44
WRAP, ALT, 45MM X 623MM BS-81887AGS
...
45
SCREW, M5 x 0.8 x 12 BS-52618GS
...
46
NUT, LOCKING-M5 BS-52856GS
...
47
Rear bearing carrier BS-66825
...
48
SCREW, M3-0.5 x 10mm BS-43181GS
...
49
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
50
WASHER, M3 Lock BS-43182GS
...
51
SCREEN, ARRSTR, SPARK, B&S BS-77601GS
...
52
ARRSTR, DEFLT, BRNG, 8 HP BS-77836GS
...
53
SCREW, DEFLECTOR BS-77836AGS
...
54
No. 10-24 Self-tapping hex head capscrew BS-75494

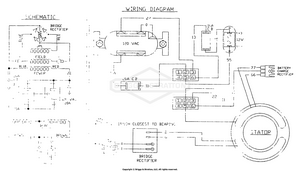

Wiring Diagram & Schematic

...

No Parts Available for this Schematic

...
...
...
