product name

Briggs & Stratton 9308-0 - 5W694, 4,000 Watt Dayton

Model: 9308-0 - 5W694, 4,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

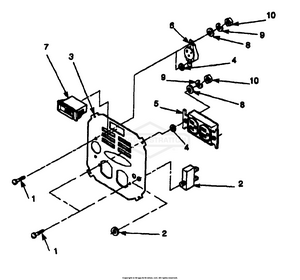

Control Panel Model No. 5W964

...
...
1
PPHMS, M4-0.7 x 16 BS-75476GS
...
2
20 amp Circuit breaker BS-66819
...
3
Panel cover BS-89594
...
4
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
5
OUTLET, 20A,120V BS-68759GS
...
6
240 volts, 20 amp Receptacle BS-68735
...
7
AC voltmeter BS-89691
...
8
M4 Flatwasher BS-22985
...
9
M4 Lockwasher BS-22264
...
10
NUT, M4-0.7 Hex BS-51715GS

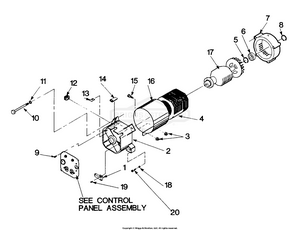

Generator Model No. 5W964

...
...
1
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
2
Rear bearing carrier BS-84115
...
3
NUT, LOCKING-M5 BS-52856GS
...
4
Stator assembly BS-77259G
...
5
GROMMET BS-5022816YP
...
6
Ball bearing BS-31971
...
7
Front bearing carrier BS-81133
...
8
Snap ring BS-22122
...
9
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
10
M6-1.0 x 115mm Bolt BS-66449E
...
11
CAP BS-5022097SM
...
12
GROMMET, RUBBER BS-67022GS
...
13
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
14
GROMMET, Plastic RBC BS-84242GS
...
15
SCREW, M5 x 0.8 x 12 BS-52618GS
...
16
WRAP, ALT, 45MM X 623MM BS-81887AGS
...
17
Rotor assembly BS-89798G
...
18
TIRE ASSM, 24X12.00-1 Contact Generac for quantity required. BS-5023365YP
...
19
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
20
M6-1.0 x 16mm Phillips pan head screw BS-90164

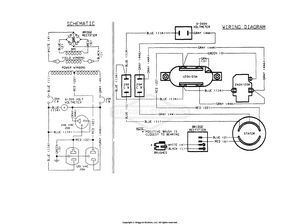

Wiring Diagram & Schematic Model No. 5W964

...

No Parts Available for this Schematic

...
...
...
