Briggs & Stratton 9160-1 - 4W115B, 5,000 Watt Dayton

Model: 9160-1 - 4W115B, 5,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

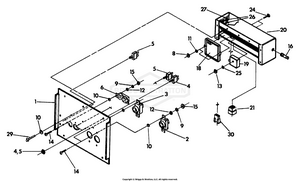

Control Panel

...
...
1
Control panel BS-83307
...
2
OUTLET, 120/240V Locking, 20A BS-68867GS
...
3
OUTLET-120V TL30A BS-705932
...
4
BREAKER-CIRCUIT 30A BS-706178
...
5
BREAKER-CIRCUIT 20A BS-209872GS
...
6
OUTLET, 20A,120V BS-68759GS
...
7
Control panel silkscreen Contact Generac for quantity required BS-83398
...
8
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
9
No. 8 Lock washer BS-22264
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
VALVE, FUEL SHUT OFF BS-84010414
...
12
WASHER BS-38150GS
...
13
No. 6-32 Hex nut BS-22188
...
14
M4-0.7 x 10mm Phillips pan head machine screw BS-75475
...
15
NUT, M4-0.7 Hex BS-51715GS
...
16
Starting switch BS-34303
...
17
P-248 Electric tape, 40mm long Contact Generac for quantity required BS-27565
...
18
A/C Voltage regulator BS-74074
...
19
CLUTCH LEVER WELD BS-7040604YP
...
20
Control panel back BS-83628
...
21
9-pin Connector BS-63993
...
22
LUG, 1/4 Tab BS-74094GS
...
23
No. 3 Sleeving, 1000mm long BS-37554A
...
24
No. 10-32 x 1-1/8" Pan head machine screw BS-33534
...
25
PULLEY, PUMP DRIVE BS-5022155SM
...
26
TIE WRAP, 4" Black BS-28739AGS
...
27
Field boost assembly BS-77244
...
28
3/16-inch "Y" Connector BS-74655
...
29
CRIMPTITE, #8-18X1/4L BS-63036GS
...
30
HOUSING, Receptacle BS-22694GS
...
31
Rivet BS-66855

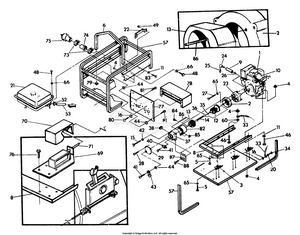

Cradle And Generator

...
...
1
19 hp. Yanmar diesel engine BS-82323
...
2
ADPTR, HSNG, 8 HP BS-66365DGS
...
3
MOUNT, Vibration 45°. BS-70642GS
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
SCREW BS-70644GS
...
6
Lifting eye BS-82332
...
8
Sub base BS-84126
...
9
Yanmar drain tube BS-73536
...
10
DECAL WARNING BS-7073504YP
...
11
(S) WELD BRACE MOUNT BS-7049810YP
...
12
Rotor assembly BS-81870
...
13
ASSY, STATOR, 5000DPE40 BS-83260GS
...
14
5/16-24 x 9" Rotor bolt BS-29024
...
15
M6 x 140mm Stator bolt BS-66449F
...
16
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
20
WASHER BS-38150GS
...
21
TANK, FUEL BS-71886GS
...
22
BRCKT, RETAINING BS-82440GS
...
23
Engine spacer BS-68342
...
24
1/4" 90ø Straight elbow BS-29296
...
25
1/4" Pipe plug BS-26073A
...
26
Nylon washer BS-29910
...
27
HHCS, M8-1.25 X 65 BS-52265GS
...
28
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
29
Bearing carrier cover BS-67025
...
33
Ground wire BS-13153621
...
34
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
35
BEARING BS-65791GS
...
36
M8 Flat washer (special) BS-67451
...
37
Rear bearing carrier BS-84115
...
38
GROMMET, RUBBER BS-67022GS
...
40
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
41
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
42
CAP BS-5022097SM
...
43
Ground lug BS-25433
...
44
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
46
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
48
SCREW-M8 x 16 BS-42568GS
...
49
NUT-M6 FLANGE BS-52857GS
...
52
Hose clamps BS-48031D
...
53
5/16" dia. Fuel hose BS-52220B
...
57
Cradle BS-82322
...
60
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
65
WASHER, Lock BS-22129GS
...
69
LOS solenoid assembly BS-82898
...
70
Solenoid boot BS-77070
...
71
255mm Cable BS-77072
...
72
60 Hz., LOS sensor BS-83471
...
73
No. 20 Hose clamp BS-35586
...
74
Spark arrestor adaptor BS-77097
...
75
(C) GUARD BELT BS-7077096YP
...
76
1/4"-20 x 1/2" Screw BS-58442
...
77
Control panel BS-83307
...
78
Control panel back BS-83628
...
79
CAP PLUG, Tubing BS-46476GS
...
80
CRIMPTITE, #8-18X1/4L BS-63036GS
...
81
No. 10-24 Capscrew BS-75494
...
82
Alternator wrap BS-81887E
...
83
M8-1.25 x 40mm Capscrew BS-57821
...
84
SCREW, M5 x 0.8 x 12 BS-52618GS
...
85
NUT, LOCKING-M5 BS-52856GS
...
86
PIN, ROLL 4MM x 10 BS-81917GS
...
87
RECTIFIER, BATTERY CHARGE BS-65795GS
...
88
SCREW BS-66849AGS

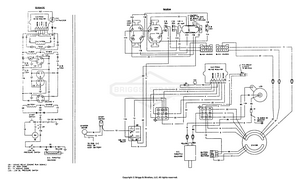

Wiring Diagram & Schematic

...
