Briggs & Stratton 9114-0 - 675010, 1,400 Watt Craftsman

Model: 9114-0 - 675010, 1,400 Watt

Save
 Part Not Listed?Part Not Listed?
product name

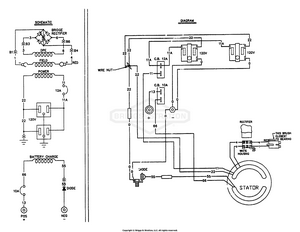

1400 Watt Generator Wiring Diagram

...

No Parts Available for this Schematic

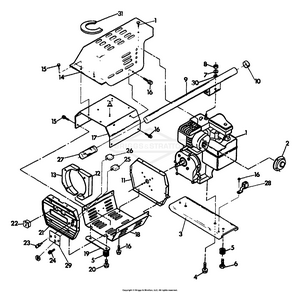

Engine Assembly & Enclosure Repair Parts No. 75481-A

...
...
1
ENGINE ASSEMBLY-BRIGGS & STRATTON MODEL 80212-8702-01 Contact Generac for quantity required BS-63190
...
2
HOSE ASSEMBLY, 42" Contact Generac for quantity required BS-5061491
...
3
SUPPORT, ENGINE Contact Generac for quantity required BS-75926
...
4
SCREW (TAPTITE)-3/8"-16 x 3/4" Contact Generac for quantity required BS-59637
...
5
MOUNT, VIBRATION Contact Generac for quantity required BS-70409
...
6
SCREW (TAPTITE)-5/16"-18 x 1/2" Contact Generac for quantity required BS-24910
...
7
WASHER, Lock Contact Generac for quantity required BS-22129GS
...
8
NUT, 5/16 - 18 Contact Generac for quantity required BS-22259GS
...
9
HANDLE, CARRYING Contact Generac for quantity required BS-75925
...
10
END CAP Contact Generac for quantity required BS-76203
...
11
ADAPTOR, SHEET METAL Contact Generac for quantity required BS-60209A
...
12
BAFFLE, GENERATOR AIR-RH Contact Generac for quantity required BS-58887A
...
13
BAFFLE, GENERATOR AIR-LH Contact Generac for quantity required BS-58887B
...
14
HOSE ASSEMBLY, 49" Contact Generac for quantity required BS-5061490
...
15
SCREW (PLASTITE)-NO. 8 x 3/8" Contact Generac for quantity required BS-59635
...
16
CRIMPTITE, 10-24 X 3/8 Contact Generac for quantity required BS-56892GS
...
17
WRAPPER, GENERATOR UPPER Contact Generac for quantity required BS-58875A
...
18
WRAPPER, GENERATOR LOWER Contact Generac for quantity required BS-58876A
...
19
SUPPORT, PANEL Contact Generac for quantity required BS-66856
...
20
SCREW (PLASTITE)-1/4" x 1" Contact Generac for quantity required BS-59634
...
21
END, PANEL Contact Generac for quantity required BS-75918
...
22
RECEPTACLE, 120 VOLTS AC Contact Generac for quantity required BS-58888
...
23
TERMINAL, BATTERY CHARGE-BLACK Contact Generac for quantity required BS-25368
...
24
TERMINAL, BTTRY CHG, RED Contact Generac for quantity required BS-25367GS
...
25
BRKR, CRCT, 10A Contact Generac for quantity required BS-75207BGS
...
26
BRKR, CRCT, 12A Contact Generac for quantity required BS-75207CGS
...
27
GRIP, Handle Contact Generac for quantity required BS-75928GS
...
28
LUG, GROUNDING Contact Generac for quantity required BS-25433
...
29
DECAL-BATTERY CHARGE Contact Generac for quantity required BS-75922A
...
31
HOSE ASSEMBLY, 48" Contact Generac for quantity required BS-5061489
...
CABLE, BATTERY CHARGE NOT SHOWN; Contact Generac for quantity required BS-A25383
...
MANUAL-OPERATOR NOT SHOWN; Contact Generac for quantity required BS-77550GS

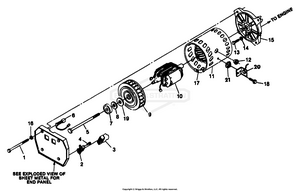

Generator Repair Parts No. 75480-A

...
...
1
BOLT, STATOR Contact Generac for quantity required BS-44395E
...
2
HOUSING, Receptacle Contact Generac for quantity required BS-22694GS
...
3
RECTIFIER, BRIDGE Contact Generac for quantity required BS-28293
...
4
SCR. NO. 4 x 3/8" Contact Generac for quantity required BS-59636
...
5
BOLT, ROTOR Contact Generac for quantity required BS-58885A
...
6
BRUSH & LUG ASSY-RED Contact Generac for quantity required BS-59606
...
BRUSH & LUG ASSY-NEUTRAL Contact Generac for quantity required BS-59606A
...
7
BEARING, ROTOR Contact Generac for quantity required BS-24049
...
8
FAN, LOADING WSHR Contact Generac for quantity required BS-58886GS
...
9
FAN, GENERATOR Contact Generac for quantity required BS-58888
...
10
ROTOR & FAN ASSEMBLY Contact Generac for quantity required BS-61798
...
11
ANTI-SCALP KIT 48 D Contact Generac for quantity required BS-7063128YP
...
12
BUSHING, SNAP-0.87" DIA Contact Generac for quantity required BS-23484D
...
13
CAPSCR. HEX HD.-5/16-24 x 3/4 Contact Generac for quantity required BS-22336
...
14
WASHER, Lock Contact Generac for quantity required BS-22129GS
...
15
HOUSING, ENGINE ADAPTOR Contact Generac for quantity required BS-60220D
...
16
CAP Contact Generac for quantity required BS-5022097SM
...
17
TRIM, RUBBER-3.5" LONG Contact Generac for quantity required BS-61876
...
18
SCR.(TAPTITE)-NO. 10-32 x 3/8" Contact Generac for quantity required BS-24489
...
19
WSHR, BRNG SEAL, FELT Contact Generac for quantity required BS-60221GS
...
20
WHEEL AXLE Contact Generac for quantity required BS-5045992SM
...
21
WASHER, #10 Ext. Shakeproof Contact Generac for quantity required BS-23762GS
...
MANUAL-OPERATOR NOT SHOWN; Contact Generac for quantity required BS-77550GS
...
...
...
